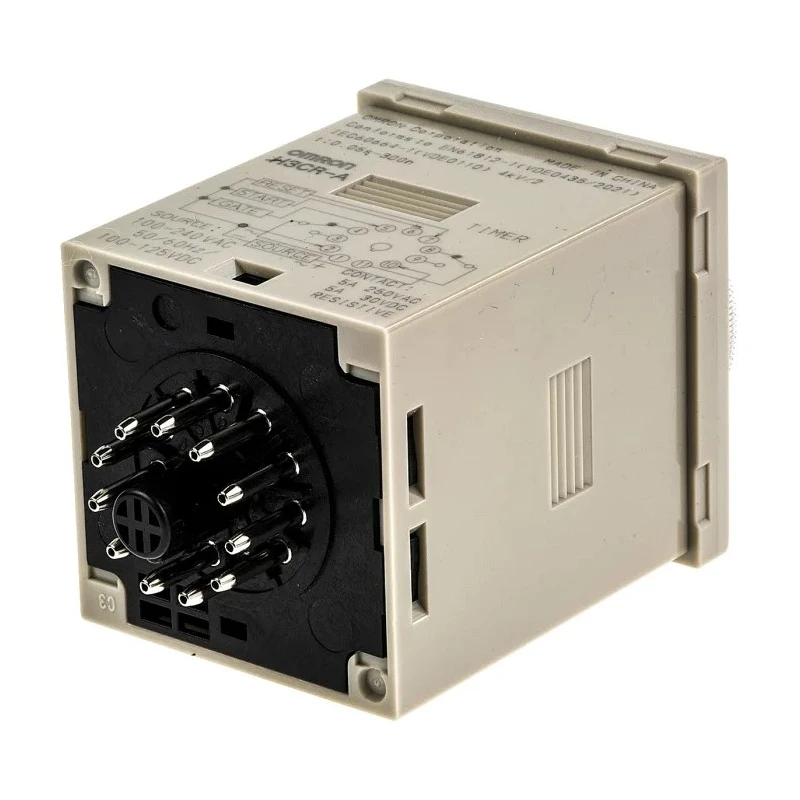

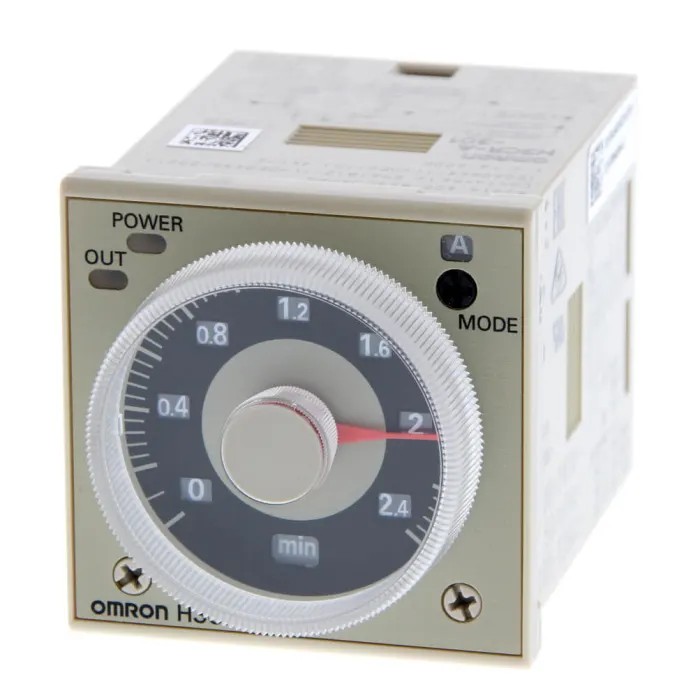

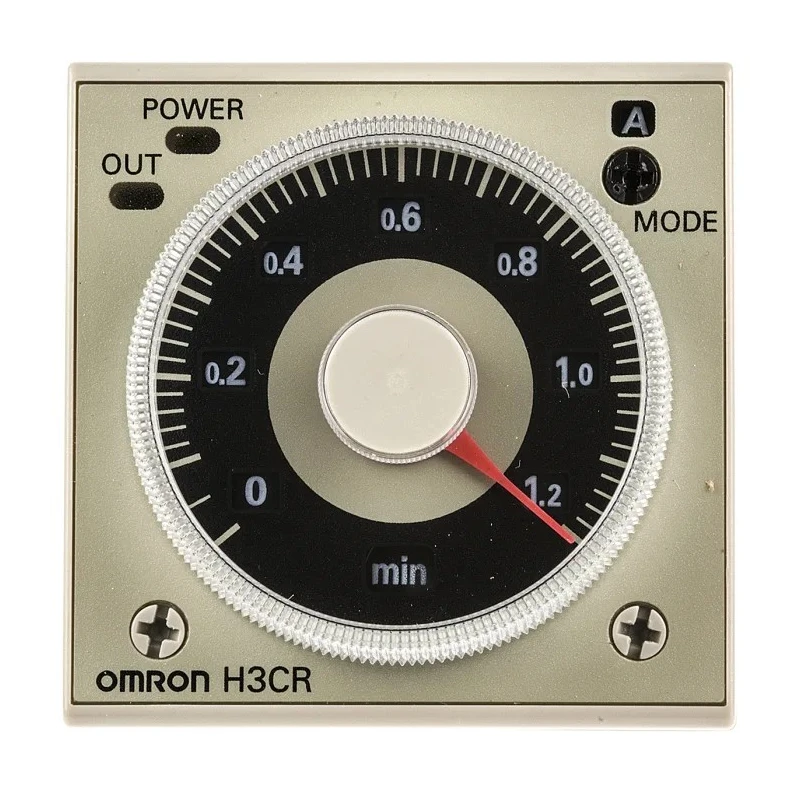

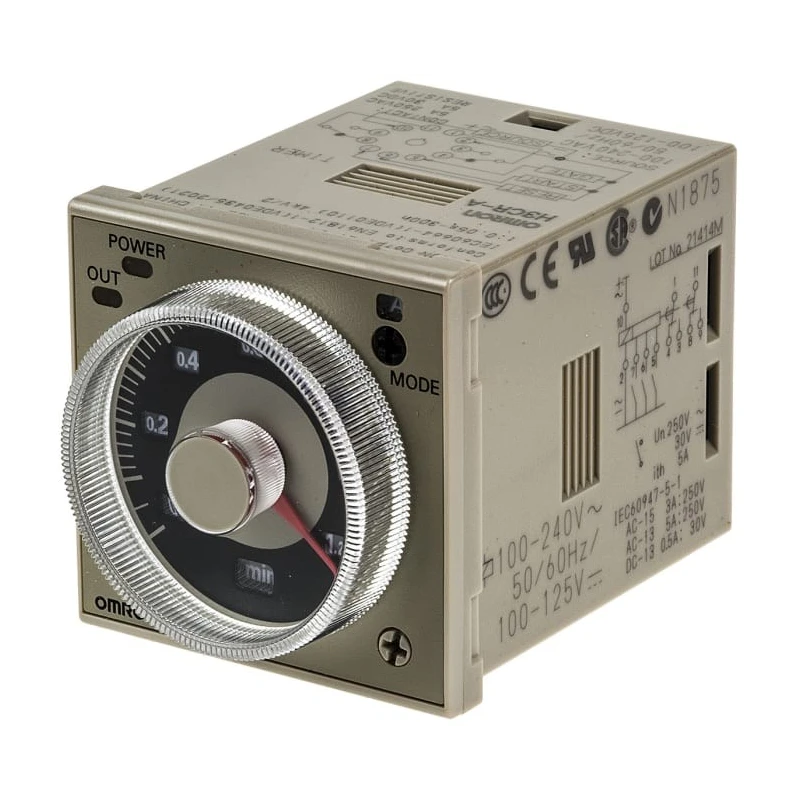

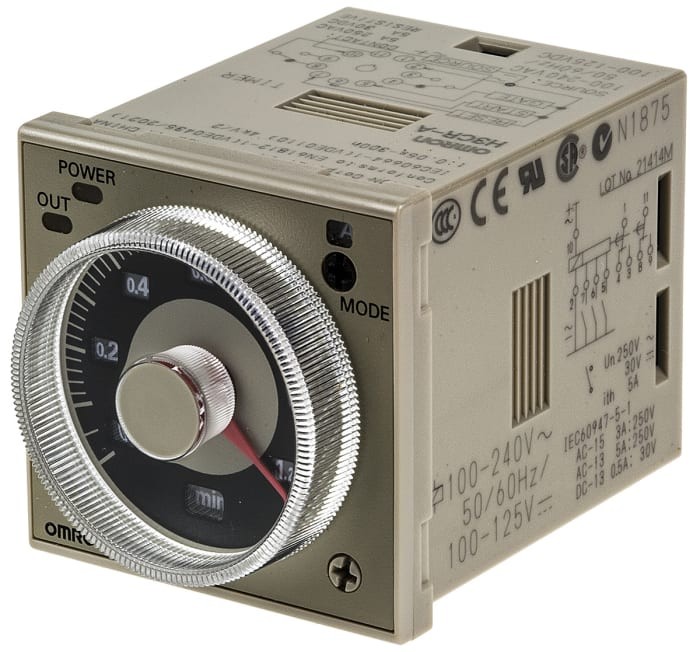

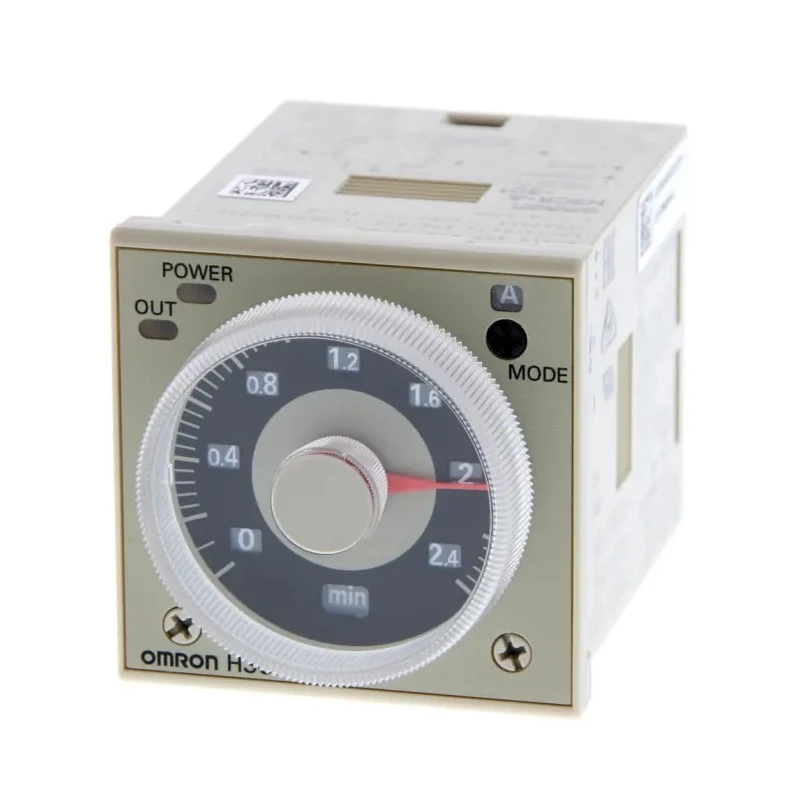

Omron Multifunction DIN Rail, Panel Mount Timer Relay, 2-Contact, 125 V dc, 100-240 V ac, Time Range 0.05 s to 300 h H3CR

Omron H3CR multifunction timer relay model H3CR offers precise time delay control ranging from 0.05 seconds to 300 hours. It supports both DC supply of 125 V and AC supplies from 100 to 240 V, making it suitable for a wide range of industrial automation applications. The relay features two DPDT contacts configured with 11-terminal pins, providing reliable switching with a contact current of up to 3 A.

This robust timer relay is designed for DIN rail and panel mounting, enabling versatile installation options in control panels or machinery. Its compact size of 48 mm width, 48 mm length, and 81.6 mm height helps save space in electrical enclosures. The device operates reliably within ambient temperatures from -10°C to 55°C and has an IP40 rating for protection against solid objects.

The multifunction mode supports up to six different on and off-delay operations, including signal on/off delay and flicker start, allowing precise timing control for processes such as lighting, press machines, packaging lines, and other automated systems in industrial and laboratory settings.

Designed to withstand harsh conditions, the relay is resistant to shock and vibration, ensuring long term durability with a mechanical lifespan rated for millions of operations. Integrated LED indicators provide clear visual feedback on operating status to facilitate maintenance and troubleshooting.

Standards compliance includes EN, CSA, and UR certifications, reflecting adherence to quality, safety, and performance norms expected in industrial electrical components. Supports supply voltages of 125 V DC and 100-240 V AC for versatile use.

Equipped with dual 11-pin terminal types and DPDT contact configuration. Built to operate in temperature ranges from -10°C up to 55°C with IP40 protection. Maximum contact current rating is 3 A for reliable switching performance.

Compact dimensions of 48 mm width, 48 mm length, and 81.6 mm height for space-efficient mounting. Compatible with DIN rail installations and panel mounting for flexible placement. Provides multifunction timer operations including various on/off delay functions for precise control.

Robust construction with resistance to shock and vibration for industrial environments. Integrated LEDs offer clear status indication for easy monitoring. Complies with EN, CSA, and UR standards ensuring quality and safety.

This Omron timer relay is ideal for applications in industrial automation, scientific laboratories, printing presses, packaging facilities, and HVAC control systems. Its accuracy, durability, and flexible functionality make it a critical component for ensuring timely control of electrical systems.
