| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | BC849CW,115 |
| Width | 2.2mm |
| Mount Type | Surface |
| Series | BC849W |
| Maximum Operating Temperature | 150°C |
| Package Type | UMT |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | 30V |
| Minimum DC Current Gain hFE | 420 |
| Transistor Polarity | NPN |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Base Voltage VCBO | 30V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 200mW |
| Maximum DC Collector Current Idc | 100mA |
| Transistor Configuration | Single |
| Maximum Transition Frequency ft | 100MHz |

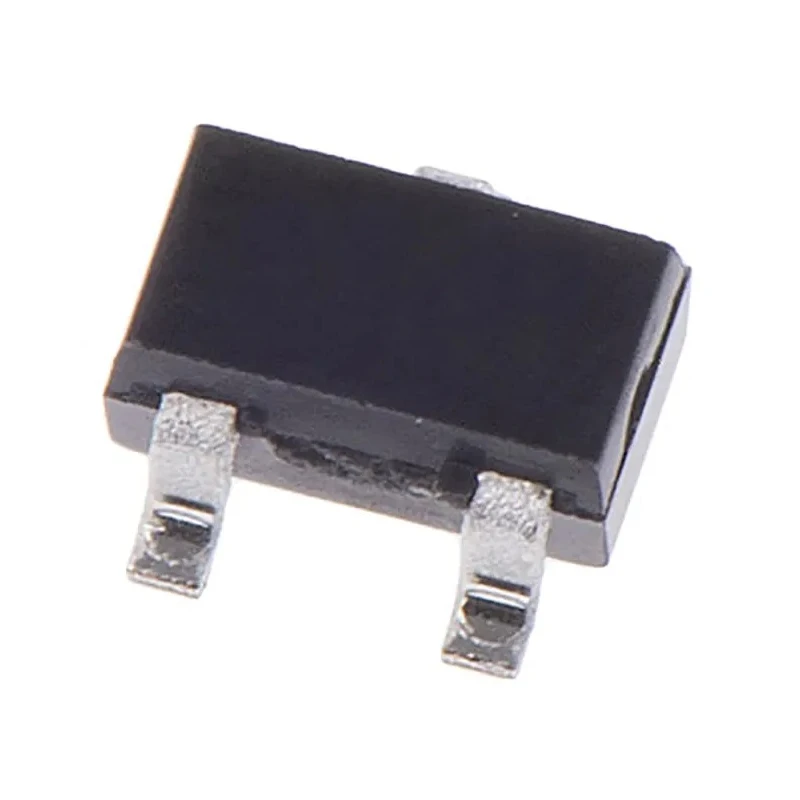

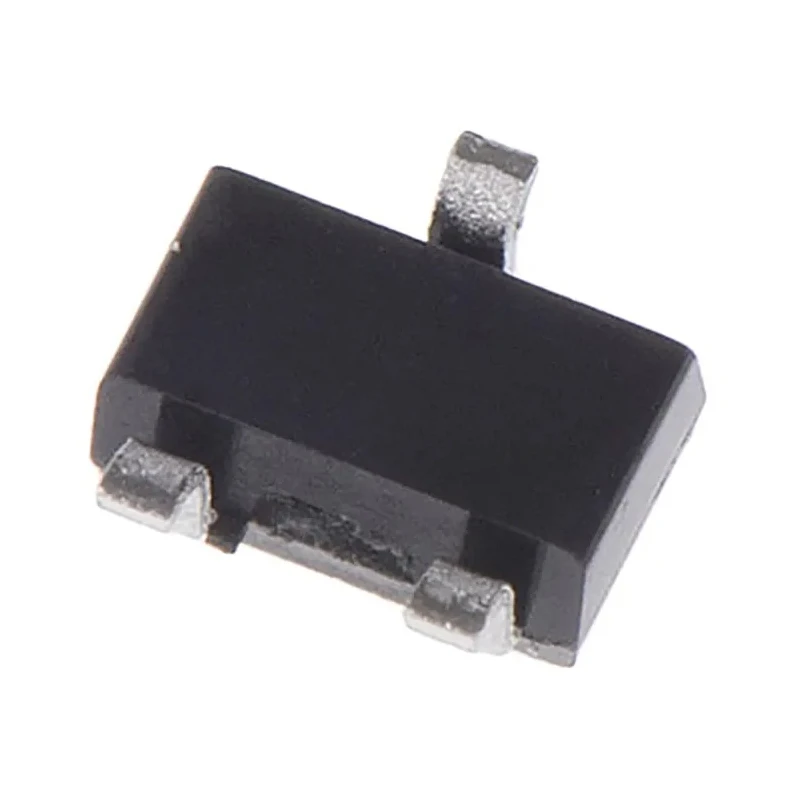

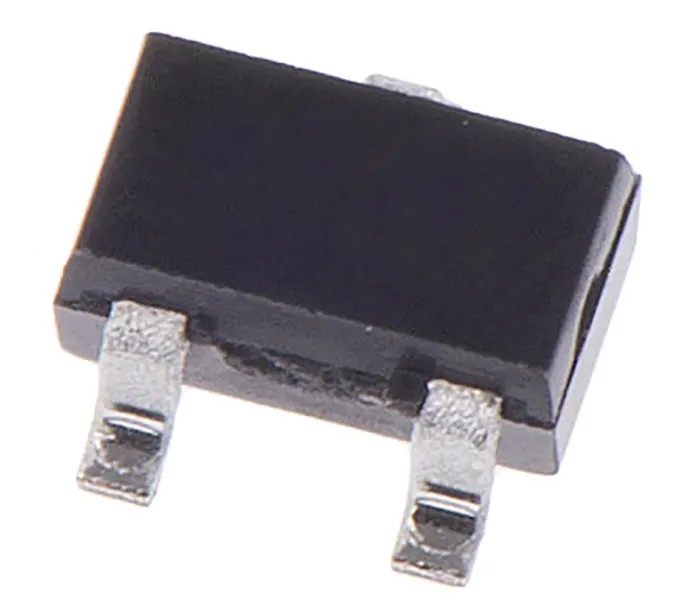

The Nexperia BC849CW,115 is a small signal NPN bipolar transistor designed for low power switching and amplification in electronic circuits. It features a maximum DC collector current of 100mA and a maximum collector-emitter voltage of 30V, making it suitable for a broad range of electronic component applications. Packaged in a compact 3-pin surface mount UMT package, this transistor supports efficient automated PCB assembly.
Its high minimum DC current gain of 420 provides excellent amplification capabilities while maintaining low power dissipation capped at 200mW. The transistor operates reliably over a wide temperature range from -65°C to 150°C. The compact physical dimensions, 2.2mm in length and width with a 1.1mm height, allow it to fit into tight spaces in modern circuit designs.
The component adheres to RoHS environmental standards and the automotive AEC-Q101 standard, ensuring high quality and durability for industrial, automotive, and consumer electronics applications. This transistor's single transistor configuration and NPN polarity make it a versatile choice for discrete semiconductor needs in electronics manufacturing and repairs.
Maximum DC collector current of 100mA. Maximum collector-emitter voltage of 30V. High minimum DC current gain (hFE) of 420. Maximum power dissipation of 200mW. Operating temperature range of -65°C to 150°C. Compact 3-pin surface mount UMT package dimensions: 2.2mm x 2.2mm x 1.1mm.
RoHS compliant and meets automotive AEC-Q101 standard. Designed for electronic applications such as switching and amplification.
This transistor is ideal for industrial electronics, automotive systems, manufacturing assembly lines, and laboratory electronic development. Browse Nexperia products and other Bipolar Transistors on EnvMart for more professional electronic components.
