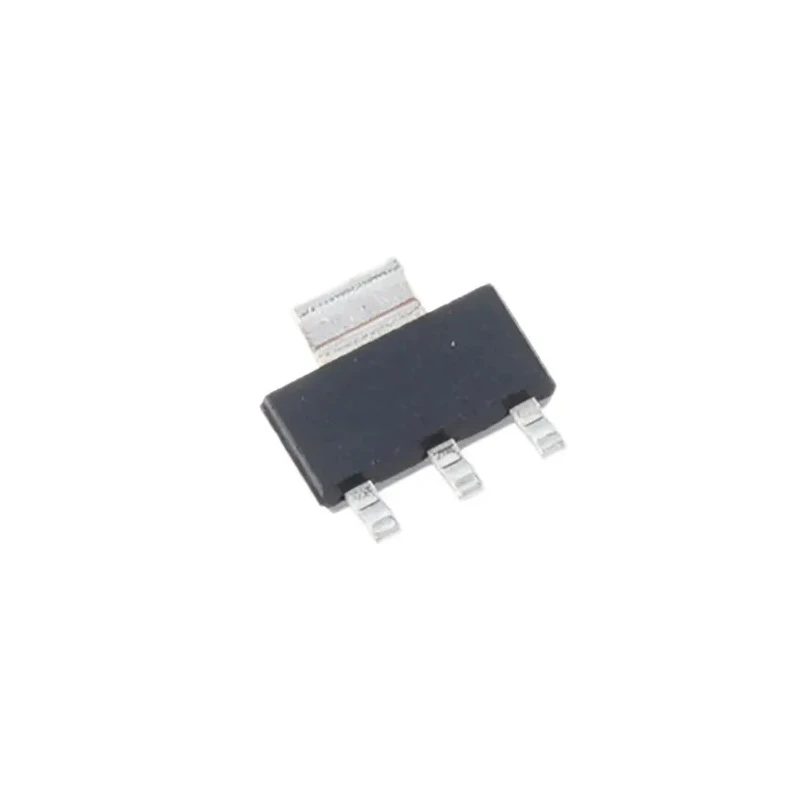

Nexperia Transistor NPN, 600 mA, 40 V, 4-Pin Surface Mount SOT-223 PZT2222A,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Transistor NPN, 600 mA, 40 V, 4-Pin Surface Mount SOT-223 PZT2222A,115

Name: Nexperia Transistor NPN, 600 mA, 40 V, 4-Pin Surface Mount SOT-223 PZT2222A,115
Brand: Nexperia
SKU: 185451
Price: 0.36 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.65mm
Length	6.7mm
Model	PZT2222A,115
Width	3.7mm
Mount Type	Surface
Series	PZT2222A
Maximum Operating Temperature	150°C
Package Type	SOT-223
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	4
Maximum Collector Emitter Voltage Vceo	40V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	6V
Maximum Collector Base Voltage VCBO	75V
Maximum Power Dissipation Pd	1.15W
Maximum DC Collector Current Idc	600mA
Transistor Configuration	Single
Maximum Transition Frequency ft	300MHz
onsemi Bipolar Transistor, 600 mA NPN, 40 V, 4-Pin SOT-223Brand	onsemi

Key Features

Maximum DC collector current is 600 mA.
Maximum collector-emitter voltage rating is 40 V.
Surface mount package type SOT-223 with 4 pins ensures compact PCB design.
Minimum DC current gain (hFE) is 100 for reliable performance.
Operating temperature range from -65°C to 150°C for diverse environments.
Maximum power dissipation of 1.15 W supports efficient thermal management.
High frequency operation with maximum transition frequency of 300 MHz.
Compliant with RoHS standards ensuring environmental safety.

Product Description

Nexperia PZT2222A,115 is a general-purpose NPN bipolar transistor optimized for switching and amplifier circuits with a maximum collector current rating of 600 mA and collector-emitter voltage of 40 V. The device is housed in a compact 4-pin Surface Mount Device (SMD) package type SOT-223, suited for modern PCB designs requiring space efficiency.

Featuring a minimum DC current gain of 100 and a maximum transition frequency of 300 MHz, this transistor ensures high-speed switching and signal amplification suitable for industrial, laboratory, and consumer electronics applications. The transistor supports operation across a wide temperature range from -65°C to 150°C, making it robust under harsh operating conditions.

With a maximum power dissipation of 1.15 W, the transistor maintains reliable thermal performance during continuous use. The device complies with RoHS directives, strictly limiting hazardous substances and contributing towards environmental sustainability.

Its physical dimensions are 6.7 mm length, 3.7 mm width, and 1.65 mm height, making it an ideal choice for compact electronic circuits. This product is manufactured in China with consistent quality controls.

Maximum DC collector current: 600 mA. Maximum collector-emitter voltage: 40 V. Package type: SOT-223 Surface Mount with 4 pins. Minimum DC current gain (hFE): 100. Operating temperature range: -65°C to 150°C. Maximum power dissipation: 1.15 W.

Maximum transition frequency: 300 MHz. RoHS-compliant construction. Compact dimensions for PCB integration.

This Nexperia transistor is widely used in industrial automation, automotive electronics, consumer devices, and telecommunications equipment. Discover more reliable electronic components and semiconductors in the Electronics & Electricals section at EnvMart.
