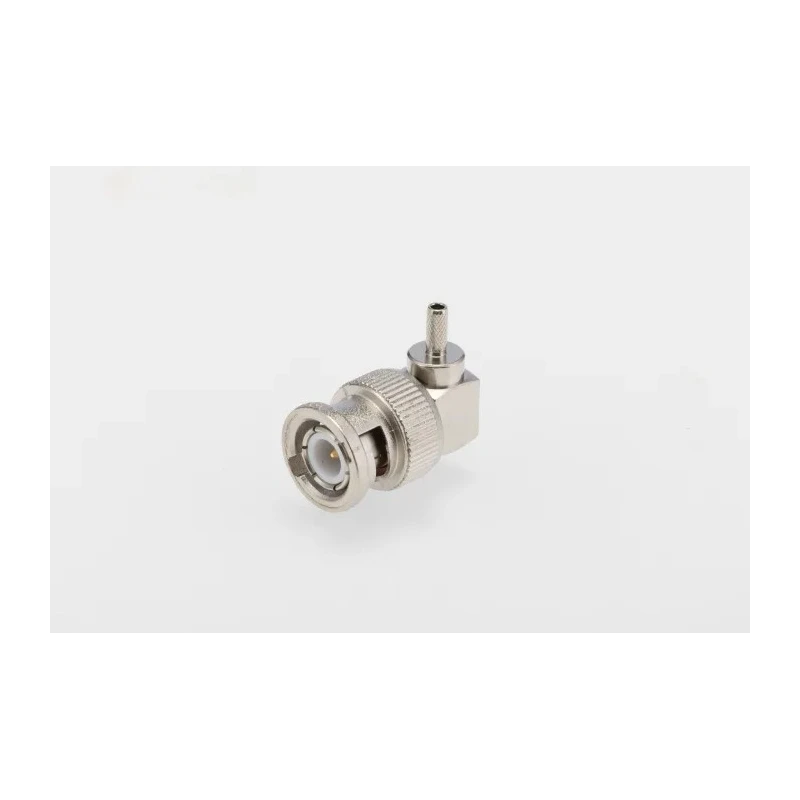

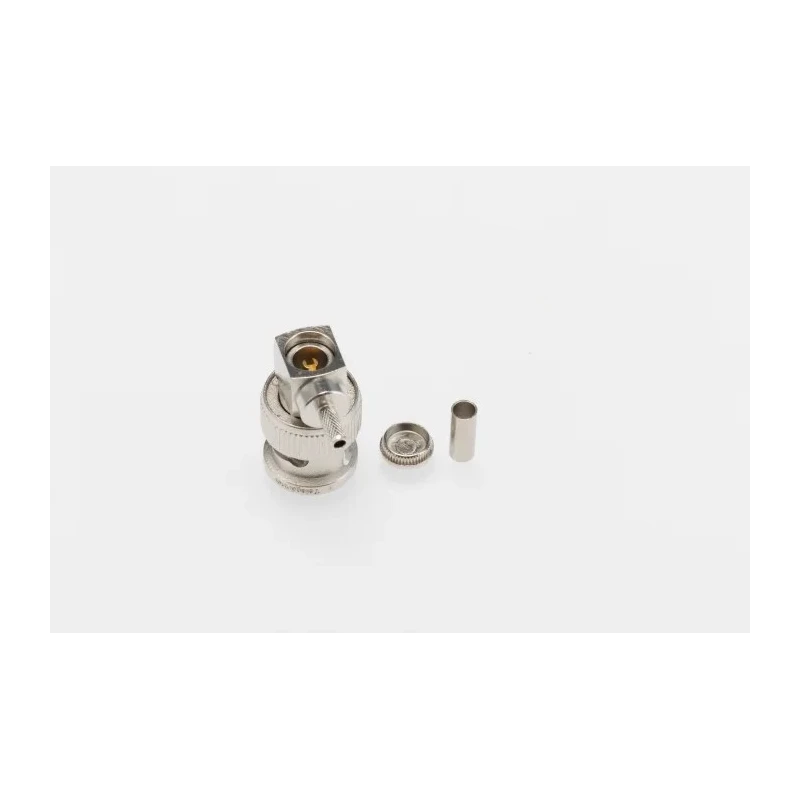

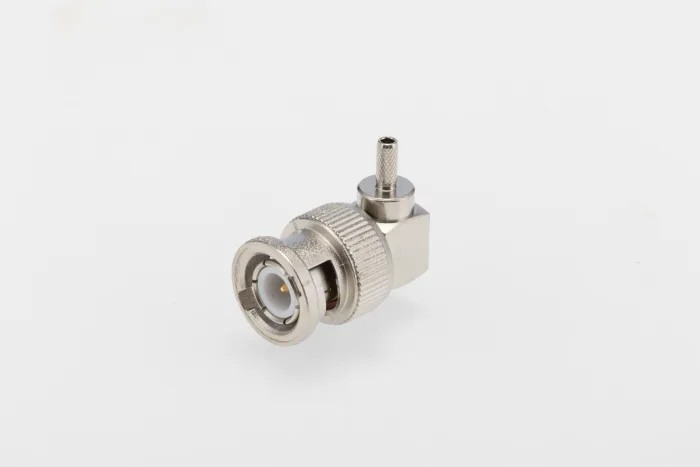

Telegartner BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Right Angle Body Crimp J01000A0010
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Telegartner |
| Orientation | Right Angle |
| Model | J01000A0010 |
| Mount Type | Cable |
| Operating Frequency | 4GHz |
| Contact Material | Beryllium Copper |
| Series | BNC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 165°C |
| Cable Type | RG316/U |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Male |
| Connector Gender | Male |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO Coaxial Connector Cable Male BNC, 50 Ω, Right Angle Body CrimpBrand | RS PRO |
Key Features
- The connector features a right-angle body design for flexible cable routing.
- Gold-plated beryllium copper contacts ensure low resistance and corrosion protection.
- The cable termination type is crimp using RG316/U cable for durability and signal integrity.
- Nickel body plating offers robust mechanical protection and resistance to wear.
- Operating temperature ranges from -65°C to 165°C allowing for diverse environmental use.
- Simple bayonet coupling mechanism facilitates quick connect and disconnect.
- IP54 rated between mated plug and jack for dust and splash resistance.
- Suitable for applications including signal, data, and video transmission.
Product Description
Telegartner J01000A0010 BNC Series Coaxial Connector Cable Male BNC, 50 Ω, Right Angle Body Crimp provides a high-performance solution for RF coaxial cable connections requiring reliable and stable signal transmission up to 4 GHz frequency. The right angle body design enhances installation flexibility in constrained spaces.
The connector uses gold-plated beryllium copper contacts and a PTFE insulator for excellent electrical performance and durability. The nickel body plating safeguards against corrosion and mechanical damage, ensuring long-lasting use in industrial and commercial environments.
The cable termination is a crimp type with RG316/U cable compatible, offering secure and consistent termination for optimal signal integrity. Rated for operating temperatures from -65°C to 165°C, this product is suitable for varied environmental conditions encountered in industries such as telecommunications, broadcasting, and data communication.
The bayonet coupling provides a quarter turn lock, facilitating quick and secure mating and demating operations with IP54 protection between connected plugs and jacks, enhancing reliability in harsh conditions.
Typical applications include signal, data, and video transmission tasks in industrial, communication, and laboratory environments, where precision and performance are critical. This product complements other Telegartner BNC connectors and accessories.
The connector features a right-angle body design for flexible cable routing. Gold-plated beryllium copper contacts ensure low resistance and corrosion protection. The cable termination type is crimp using RG316/U cable for durability and signal integrity.
Nickel body plating offers robust mechanical protection and resistance to wear. Operating temperature ranges from -65°C to 165°C allowing for diverse environmental use. Simple bayonet coupling mechanism facilitates quick connect and disconnect.
IP54 rated between mated plug and jack for dust and splash resistance. Suitable for applications including signal, data, and video transmission. Explore the Coaxial Connector category on EnvMart for compatible connectors and accessories from top brands including Telegartner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating frequency of this connector is 4 GHz, making it suitable for high-performance RF coaxial cable connections.
This model is compatible with RG316/U cable, which is used for crimp termination to ensure optimal signal integrity.
The operating temperature range for this connector is from -65°C to 165°C, allowing it to function in diverse environmental conditions.
The contacts are made of gold-plated beryllium copper, while the body is nickel-plated, providing corrosion protection and mechanical durability.
The bayonet coupling mechanism allows for a quarter turn lock, facilitating quick and secure mating and demating operations between the connector and jack.
This connector has an impedance rating of 50Ω, which is standard for many RF applications.
The connector features a right-angle body design, which enhances installation flexibility in constrained spaces.
The connector uses a crimp termination type, which provides a secure and consistent connection for optimal performance.
This model has an IP54 rating, providing protection against dust and splash, enhancing its reliability in various environments.
Typical applications include signal, data, and video transmission in industrial, communication, and laboratory environments.
The connector is classified as a standard size, suitable for various coaxial cable applications.
This connector is manufactured in Germany, adhering to high standards of quality and performance.
