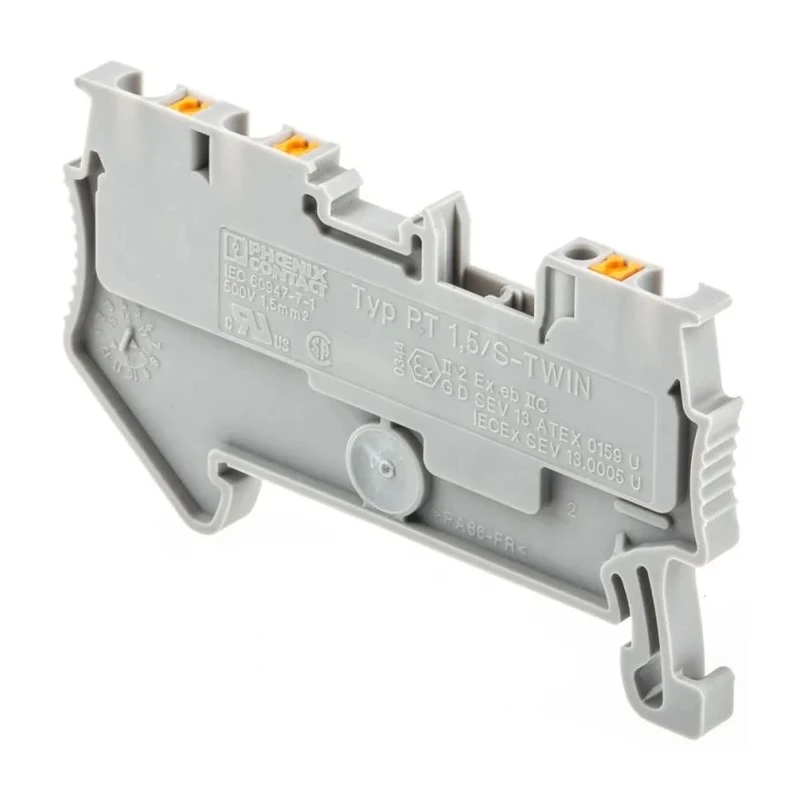

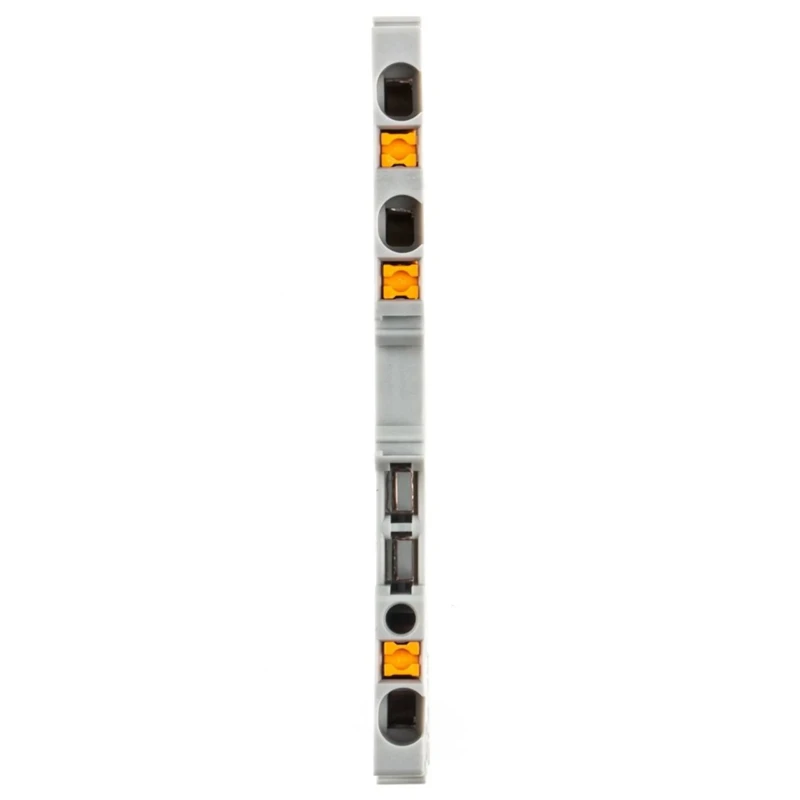

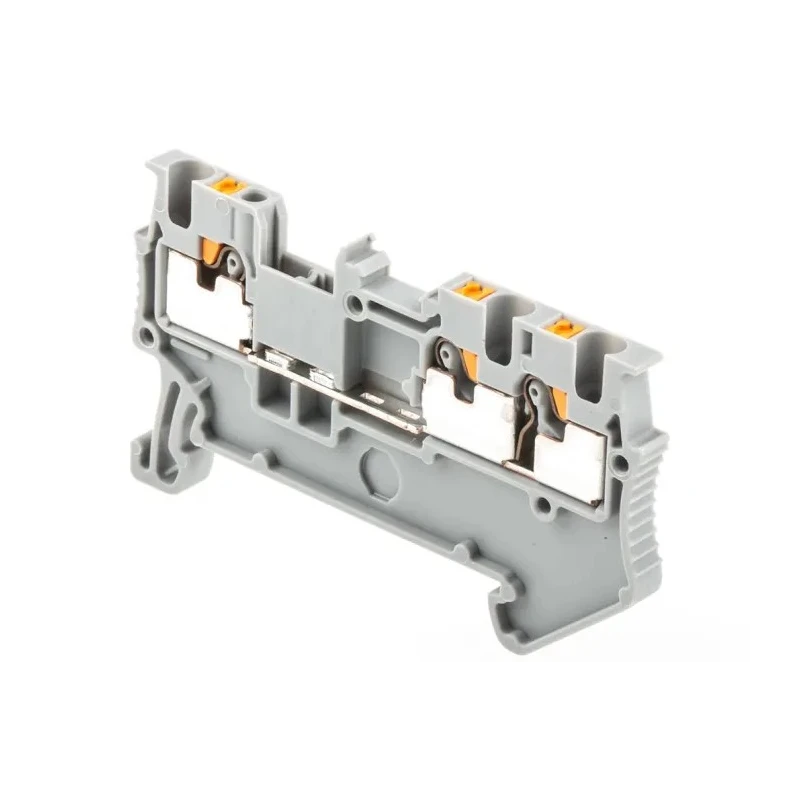

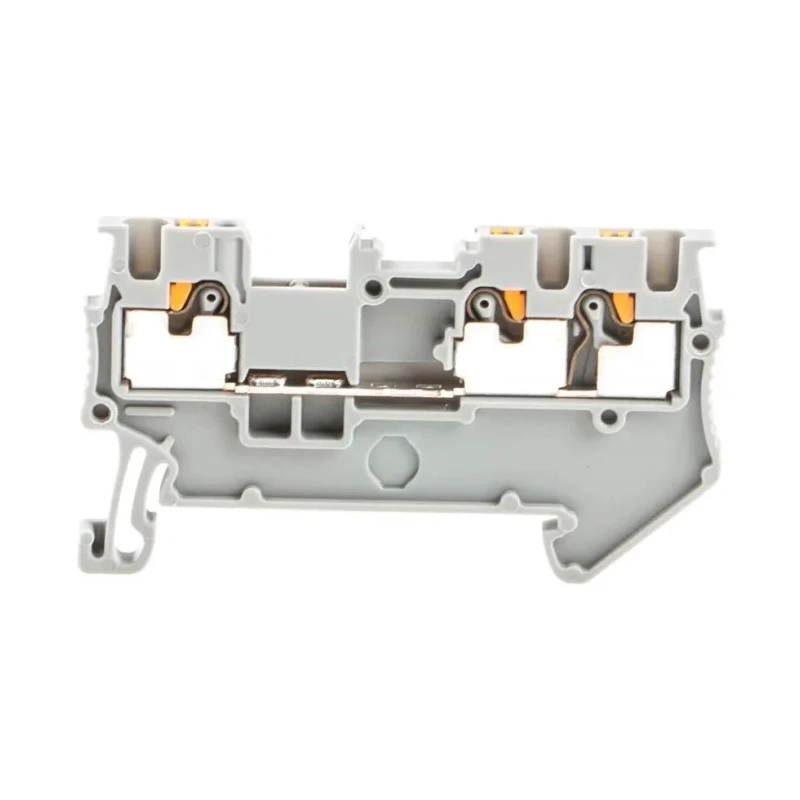

Phoenix Contact PT 1.5/S-TWIN Series Feed Through Terminal Block Grey 0.14mm² to 1.5 mm², 1-Level Push-in 3208155
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 500V |
| Brand | Phoenix Contact |
| Colour | Grey |
| Model | 3208155 |
| Series | PT 1.5/S-TWIN |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | VDE, GL, IEC 60947-7-1, EAC Ex, EAC, cULus Recognised, cUL Recognised, CSA, Bureau Veritas, ATEX, ABS, IECEE CB Scheme, IECEX, LR, NK, UL Recognised |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 16AWG |
| Cable CSA | 0.14, 1.5mm² |
| Terminal Block Current | 17.5A |
Key Features
- Designed for safe wire-to-wire connections in control panels.
- Supports wire sizes from 26 AWG to 16 AWG.
- Push-in termination allows fast, tool-free wiring.
- ATEX certified for hazardous area use.
- Compact design with dimensions 54mm length, 3.5mm width, and 2.2mm end cover width.
- Shock and vibration resistant for demanding industrial environments.
- Polyamide insulation provides electrical safety and UL 94 V0 flammability rating.
- Wide temperature range operation from -60°C to 105°C.
Product Description
Phoenix Contact 3208155 PT 1.5/S-TWIN Series Feed Through Terminal Block is a high-performance connection component designed for industrial, electrical, and control panel applications. This grey terminal block accommodates wire cross sections ranging from 0.14mm² to 1.5 mm² and supports a robust current of 17.5A at voltages up to 500V. Its single-level push-in termination design enables quick and reliable wire connections without the need for extra tools, enhancing installation efficiency and safety.
Constructed with polyamide insulation, the terminal block ensures shock resistance and electrical isolation. It meets rigorous safety standards including VDE, GL, IEC 60947-7-1, and is certified ATEX for safe operation in hazardous areas. The component also features a UL 94 V0 flammability rating, which prevents fire spread in case of ignition.
Measuring compactly at 54 mm length, 3.5 mm width and with an end cover width of 2.2 mm, it suits crowded panel installations. Its rugged build withstands operational vibrations and shocks common in machine building and railway systems. The rated surge voltage of 6 kV adds an extra layer of protection against current surges and overloads.
This terminal block series provides easy bridging options with multi-conductor and function terminals. With low insertion force technology, it allows direct plugging for conductors with ferrules from 0.34 mm² upwards. The actuation button facilitates conductor disconnection and handling of small cross sections.
Safe, fast wire-to-wire connections for control panels and heavy-duty electrical equipment. Broad wire size support from 26 AWG to 16 AWG for diverse application needs. High voltage and current ratings ensuring reliability in industrial setups.
ATEX certification enables use in hazardous environments. Compact form factor adapts to tight installation constraints. Shock and vibration resistance suited for railway and machine building industries. Polyamide insulation and UL 94 V0 rating enhance electrical safety and fire resistance.
Easy bridging and push-in connection technology simplify wiring tasks.
Overall, Phoenix Contact 3208155 terminal block is engineered to deliver durability, safety, and ease of installation in demanding industrial electrical systems. It is ideal for application in industrial automation, manufacturing plants, railway control systems, and other environments requiring trustworthy and compact electrical connections.
Explore more components in the Electronics Components category at EnvMart for your industrial electrical solutions.
Explore more products in our DIN Rail Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block has a maximum current rating of 17.5A.
It is rated for a maximum voltage of 500V.
This terminal block supports wire sizes ranging from 26 AWG to 16 AWG, or 0.14 mm² to 1.5 mm².
It can operate within a temperature range of -60°C to 105°C.
Yes, it is ATEX certified, making it suitable for use in hazardous areas.

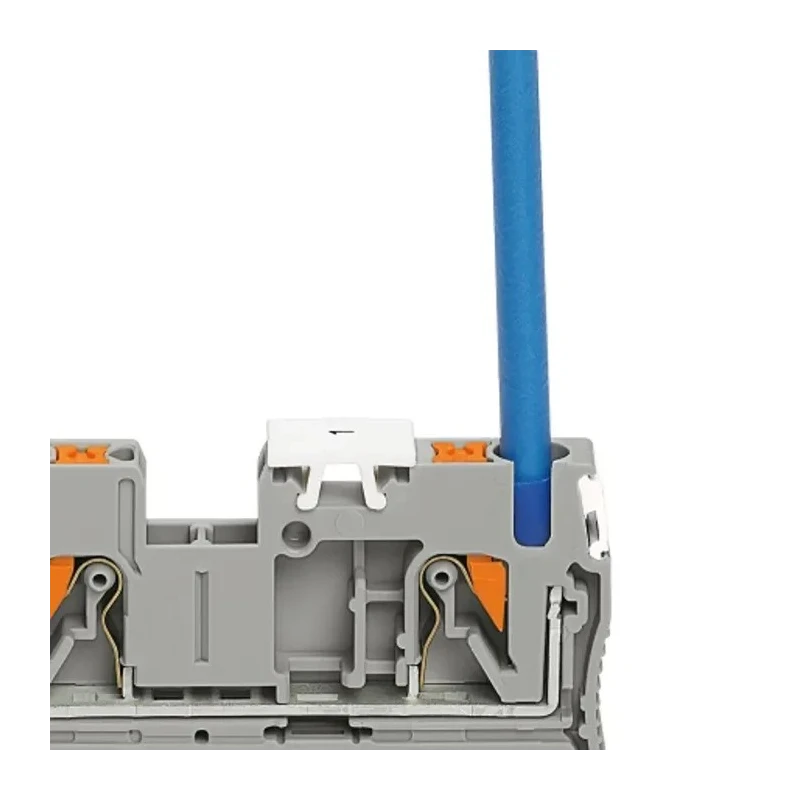

It features a push-in termination type, allowing for quick and tool-free wiring.
The terminal block measures 54 mm in length, 3.5 mm in width, and has an end cover width of 2.2 mm.
It is constructed with polyamide insulation, which provides electrical safety and a UL 94 V0 flammability rating.
It meets several standards including VDE, GL, IEC 60947-7-1, and is cULus Recognised among others.
The rated surge voltage is 6 kV, providing protection against current surges.

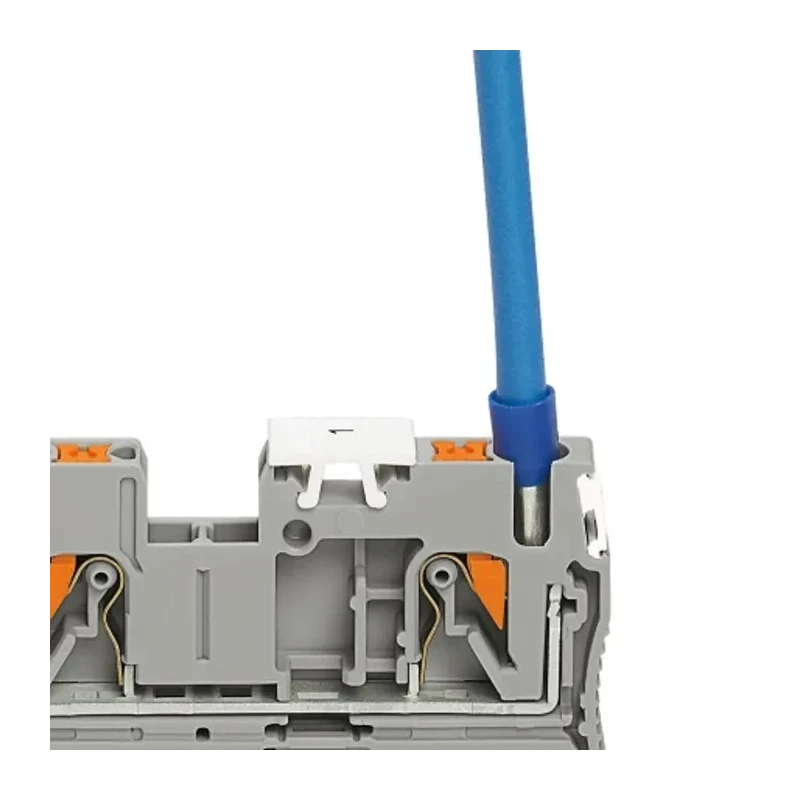

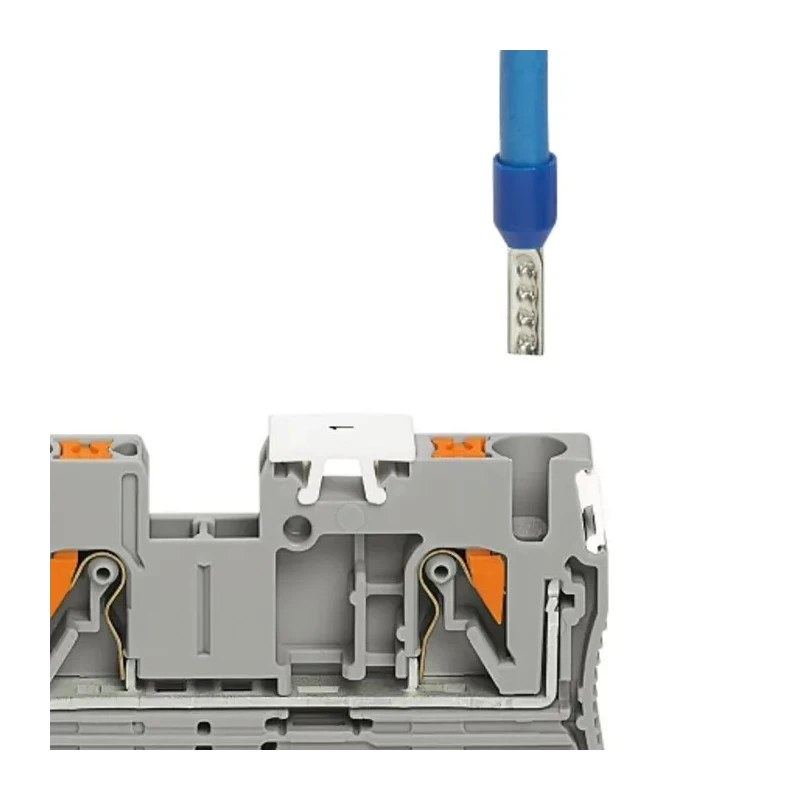

It features low insertion force technology for easy direct plugging of conductors with ferrules from 0.34 mm² upwards.
This terminal block is suitable for industrial automation, manufacturing plants, and railway control systems.
