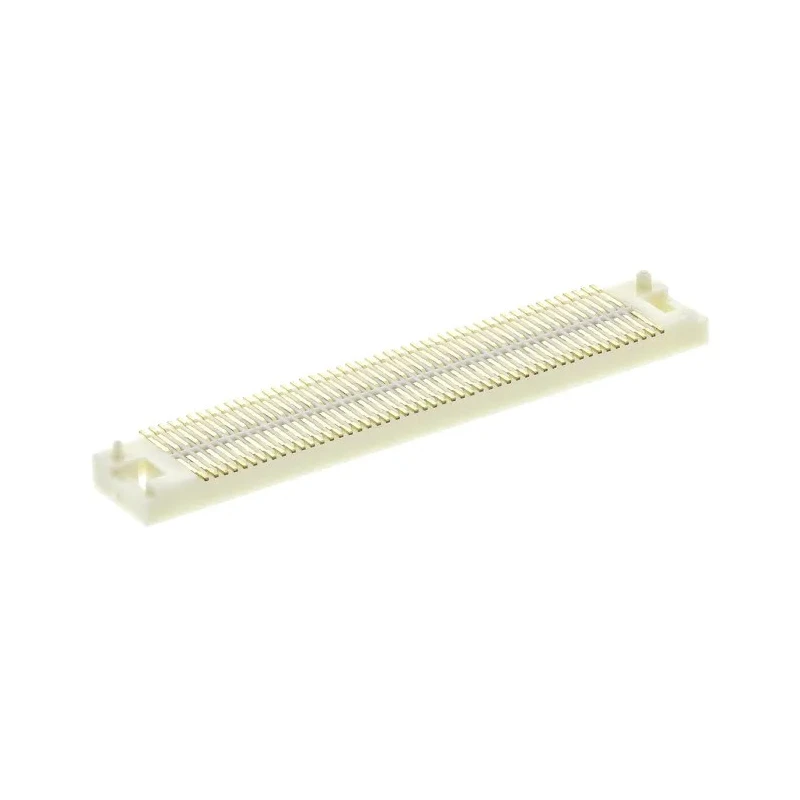

Hirose PCB Socket FunctionMAX FX8 Series Straight Surface 100-Contact 1 Row 0.6 mm Pitch Solder FX8-100S-SV(22)

Hirose FX8-100S-SV(22) FunctionMAX FX8 Series Straight Surface PCB Socket is a high-performance connector designed for industrial and commercial electronics applications requiring reliable board-to-board connections.

This connector features 100 contacts in a single row with a fine 0.6 mm pitch, optimized for surface mounting. Its construction includes polyphenylene sulphide housing and bronze contacts plated with gold for superior electrical performance and corrosion resistance.

The FunctionMAX FX8 series supports high-speed transmissions up to 3.125 Gbit/s ensuring excellent signal integrity, suitable for servers, broadcast equipment, industrial systems, medical devices, and POS terminals.

Key design features include built-in mating guide ribs that allow ±0.6 mm self-alignment tolerance for easier assembly and design flexibility, as well as bosses with differing diameters for reliable PCB alignment and prevention of misinsertion.

Contacts utilize a spring deflection design to improve spring force reliability and durability. SMT coplanarity ensures the solder area maintains a coplanar tolerance of less than 0.1 mm, facilitating consistent solder joint quality.

The connector operates reliably between -55°C to +85°C, making it suitable for various environmental conditions. Its rated current is 400 mA with a voltage of 100 V to meet standard electronic system requirements.

Manufactured in Japan, this product offers dependable quality consistent with Hirose’s FunctionMAX brand philosophy, which focuses on high functionality and advanced transmission capabilities for industrial electronic connector applications.

Supports high-speed transmission rate of up to 3.125 Gbit/s for excellent signal integrity. Built-in guide ribs allow ±0.6 mm misalignment for easy mating and design flexibility. Features bosses on PCB for accurate alignment and prevention of misinsertion.

Contacts constructed with spring deflection design provide enhanced reliability. SMT coplanarity is controlled with a tolerance less than 0.1 mm at the solder area. Stacking height is 16 mm suitable for varied PCB configurations.

Contact plating is gold over bronze material, ensuring conductivity and corrosion resistance. Rated for a maximum current of 400 mA and voltage of 100 V. Operating temperature range is from -55°C to 85°C, supporting diverse environments.

Manufactured in Japan, maintaining strict quality standards. Explore more quality PCB Sockets in the Electronics Components category at EnvMart to meet your assembly and design needs.
