Hirose Right Angle Surface Mount Female USB Type C Connector USB 3.1 5A 20V CX70M-24P2

Free Delivery in India | Lowest Global Shipping Charges

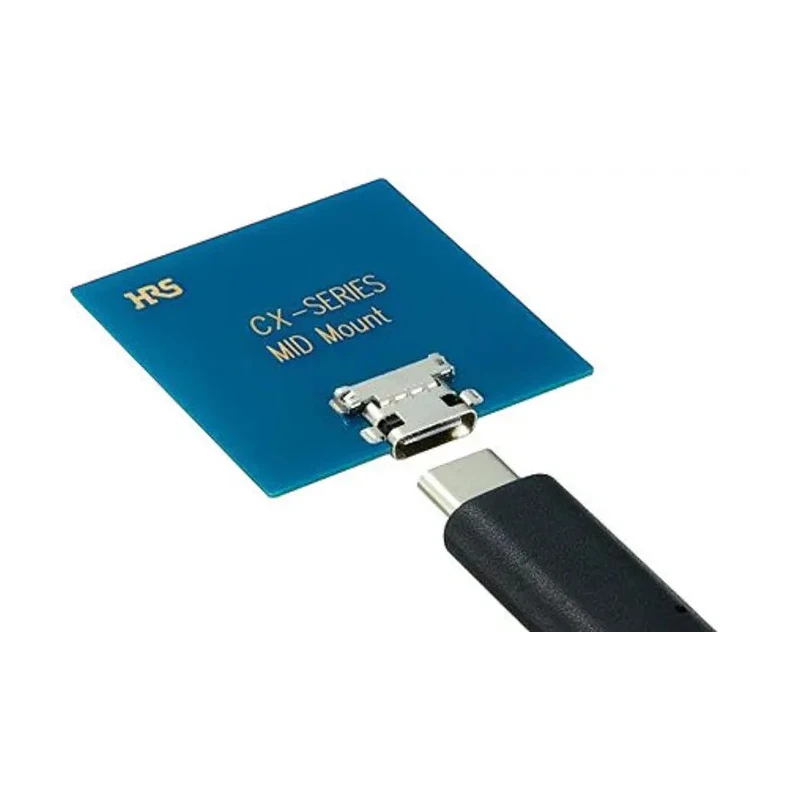

Hirose Right Angle Surface Mount Female USB Type C Connector USB 3.1 5A 20V CX70M-24P2

Name: Hirose Right Angle Surface Mount Female USB Type C Connector USB 3.1 5A 20V CX70M-24P2
Brand: Hirose
SKU: 199162
Price: 2.78 USD
Availability: InStock



Category USB Connector Brand Hirose Condition New

Specifications

Country of Origin	Korea
Voltage	20V
Brand	Hirose
Orientation	Right Angle
Current	5A
Model	CX70M-24P2
Mount Type	Surface
Series	CX70M
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-30°C
USB Type	USB Type C
Connector Gender	Female
USB Specification	USB 3.1
CX70M-24P1 Female USB C Connector, Straight PCB MountBrand	Hirose

Key Features

This USB Type C connector features a compact right angle design suitable for surface mounting.
It supports reversible plug insertion for easy and reliable connectivity.
Rated for a maximum operating temperature of 85°C and minimum of -30°C for versatile environmental use.
Connector gender is female and it includes a solder termination type for secure attachment.
Supports USB 3.1 data speeds ensuring fast data communication up to 5 Gbit/s.
Ideal for applications in smartphones, PCs, laptops, tablets, and power packs.
Manufactured in Korea, Republic Of, ensuring high quality and reliability.

Product Description

Hirose CX70M-24P2 is a right angle surface-mounted female USB Type C connector compliant with the USB 3.1 standard. It is designed to support high-speed data transmission up to 5 Gbit/s and is rated for a current capacity of 5A and operating voltage of 20V.

This compact USB Type C connector measures approximately 7.95 mm in length, making it ideal for devices where space is limited such as mobile gadgets, laptops, and tablets. The reversible plug mating design allows the plug to be inserted in any orientation, enhancing ease of use and reliability.

The connector supports solder termination methods, providing a secure and reliable connection on printed circuit boards. It operates reliably in temperatures ranging from -30°C to 85°C, suitable for various industrial and commercial applications.

Applications include but are not limited to smartphones, personal computers, laptops, tablets, power packs, and chargers. Its hybrid type design supports solder mount and repair scenarios, servicing both new equipment and maintenance markets.

This connector supports USB 3.1 for high-speed data transfer. Current rating of 5A with a voltage rating of 20V ensures safe power delivery. Right angle orientation optimizes the layout on compact boards. Surface mount type facilitates PCB assembly and repair.

Manufactured in Korea, Republic Of, promising compliance with stringent quality standards. Reversible USB plug insertion provides user convenience and reliability.

This product is a new industrial-grade USB Type C connector from Hirose, ideal for use in electronics manufacturing, repair, and product design. For more products like this, browse EnvMart's catalog of industrial electronic components and connectors.
