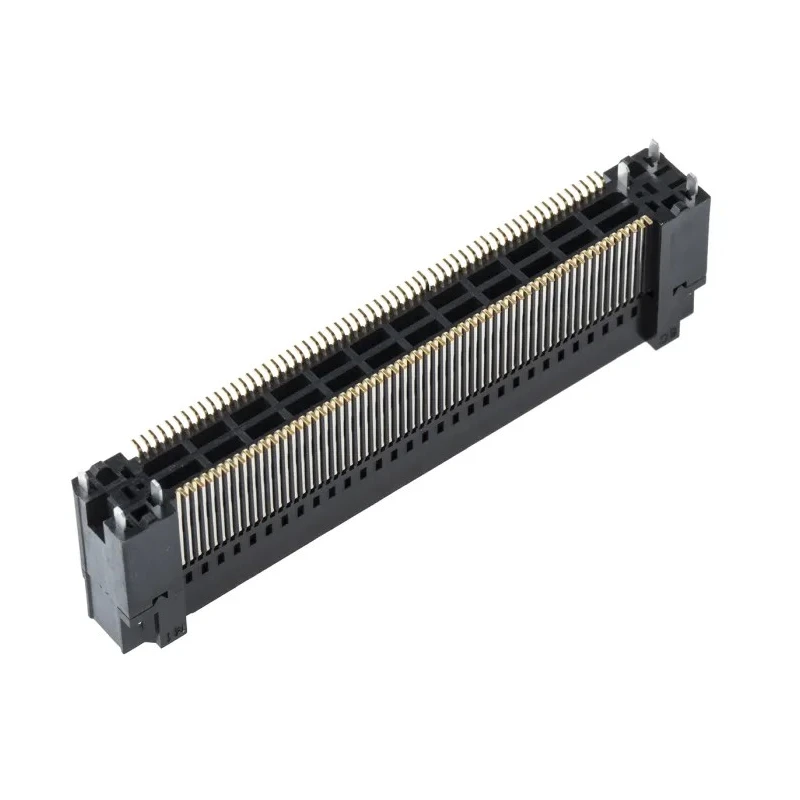

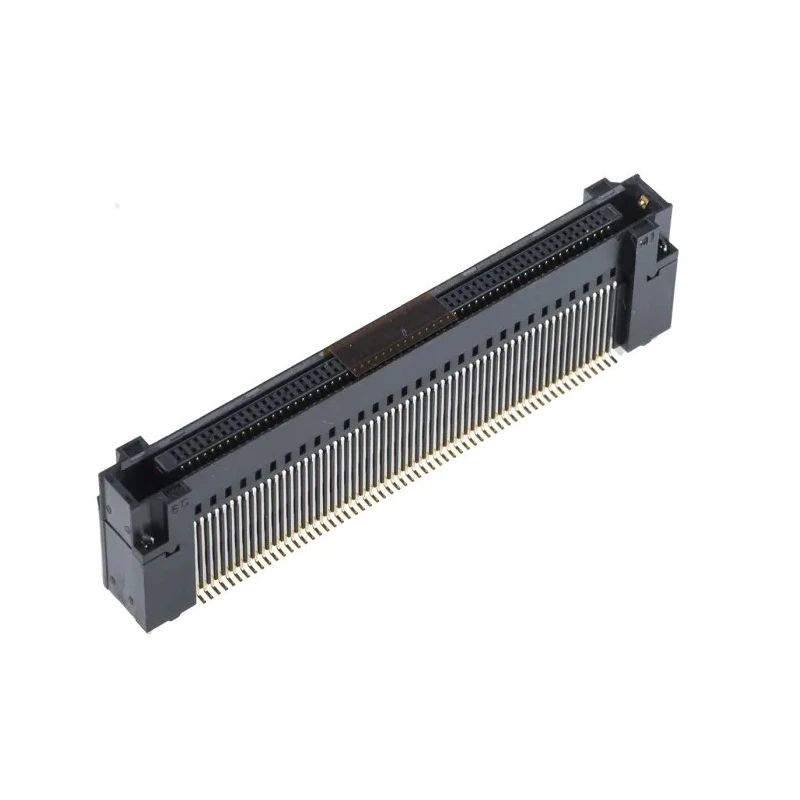

Hirose FunctionMAX FX18 Series Straight Surface PCB Socket 120-Contact 2 Row 0.8 mm Pitch Solder

Hirose FX18-120S-0.8SV20 FunctionMAX FX18 Series Straight Surface PCB Socket is a high-speed board-to-board connector designed for industrial and electronic applications requiring high reliability and performance. It features 120 contacts arranged in two rows with a 0.8 mm pitch, facilitating compact and efficient PCB connections. The connector supports a high transmission rate of over 10 Gbit/s, making it suitable for modern high-speed data communication environments, including PCI-Express Ver. 2.0.

The advanced multifunctional contact design integrates ground, power supply, and 3-step sequential contacts. Ground contacts are positioned to reduce crosstalk by enhancing grounding properties, while power supply contacts offer up to 3A per pin, supporting a total of 12A without utilizing signal pins for power. Sequential contacts provide additional grounding and detection capabilities with staggered positioning in the housing.

This PCB socket has six through-hole pins that provide increased mechanical retention on the PCB, improving resistance to wrenching forces during assembly and operation. Its large mating guides facilitate precise and secure connections to mating components.

Operating within a temperature range from -55°C to 80°C, the connector is constructed with bronze contact materials and complies with RoHS standards, ensuring environmental compliance and robust electrical performance. It is engineered for various mounting configurations including coplanar, vertical, and stacking board mating applications, making it versatile for industrial controllers, servers, measurement equipment, medical instruments, and base station transceivers among others.

High-speed transmission rate exceeding 10 Gbit/s for advanced data communication. Advanced multifunctional contacts combining ground, power, and sequential functions. Six through-hole pins increase PCB retention and mechanical stability.

Large mating guides for secure and easy connector engagement. Wide operating temperature range from -55°C to 80°C for harsh environments. Compliant with RoHS standards for environmental safety. Bronze contact material for durability and reliable conductivity.

Supports 3A per power contact, totaling 12A current capacity. Suitable for coplanar, vertical, and stacking board-to-board mating applications. Manufactured in Malaysia ensuring high-quality production standards.

This Hirose FunctionMAX FX18 Series connector is ideal for industrial, laboratory, communication, and commercial applications requiring high-performance PCB connections. Explore additional electronics components and PCB Sockets within EnvMart to complement your system designs.
