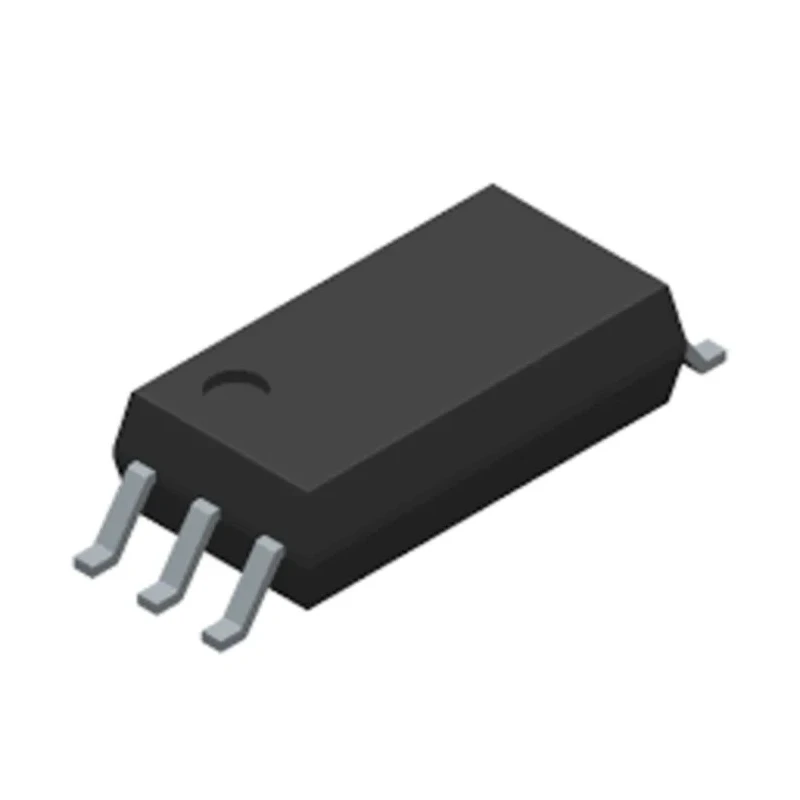

Toshiba DC Input Optocoupler Surface Mount 6-Pin SO-6 TLP2766A(E(O

Free Delivery in India | Lowest Global Shipping Charges

Toshiba DC Input Optocoupler Surface Mount 6-Pin SO-6 TLP2766A(E(O

Name: Toshiba DC Input Optocoupler Surface Mount 6-Pin SO-6 TLP2766A(E(O
Brand: Toshiba
SKU: 166011
Price: 1.94 USD
Availability: InStock



Category Optocoupler Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Model	TLP2766A(E(O
Mount Type	Surface
Output type	Transistor
Series	TLP
Maximum Operating Temperature	125°C
Package Type	SO-6
Minimum Operating Temperature	-40°C
Maximum input current	25mA
Number Of Channels	1
Standards/Approvals	EN, CSA, UL
Maximum Forward Voltage	1.8V
Number of Pins	6
Input Current Type	DC
Typical Rise Time	4ns
Typical Fall Time	5ns

Key Features

The device utilizes a high-output light-emitting diode coupled with a high-gain photodetector.
Applicable for factory automation and programmable logic controllers (PLC).
Supports DC input current with a maximum of 25mA and a forward voltage of 1.8V.
Operates reliably in industrial temperatures ranging from -40°C to 125°C.
Typical rise and fall times are 4ns and 5ns respectively providing high-speed performance.
Designed for surface mount with SO-6 package suitable for compact board layouts.
Provides isolation voltage up to 5000Vrms for safe electrical isolation.
Complies with EN, CSA, and UL standards for safety and quality.

Product Description

Toshiba TLP2766A(E(O is a DC input optocoupler featuring a high-output LED combined with a high-gain, high-speed photodetector. Packaged in a 6-pin SO-6 surface mount configuration, this device provides effective electrical isolation up to 5000Vrms, making it ideal for industrial and automation applications including factory automation and PLC systems.

This optocoupler supports a maximum forward voltage of 1.8V and a maximum input current of 25mA. It operates across a broad temperature range from -40°C to 125°C, ensuring reliable performance under harsh environmental conditions. The high-speed operation is highlighted by typical rise and fall times of 4ns and 5ns respectively, enhancing response times in switching circuits.

The compact SO-6 surface mount package enables dense PCB layouts and ease of assembly. Compliance with EN, CSA, and UL standards underscores the product’s quality and reliability for professional industrial applications.

Typical uses include industrial control, signal isolation, and coupling applications within manufacturing, HVAC, laboratory instrumentation, and automation PLC networks. Its DC input and transistor output offer versatility in integration with digital and analog circuits requiring safe signal transfer.

The device provides reliable high gain and speed optocoupling suitable for industrial automation. Maximum input current rating of 25mA with low forward voltage for energy efficiency. Wide operating temperature range ensures stable function across diverse conditions.

High isolation voltage supports safety in high-voltage industrial environments. Surface mount SO-6 package facilitates compact and automated PCB assembly. Compliant with international standards EN, CSA, and UL for safety and performance.

Explore more components like Toshiba Optocouplers and enhance your industrial electronics solutions with EnvMart’s reliable product catalog.
