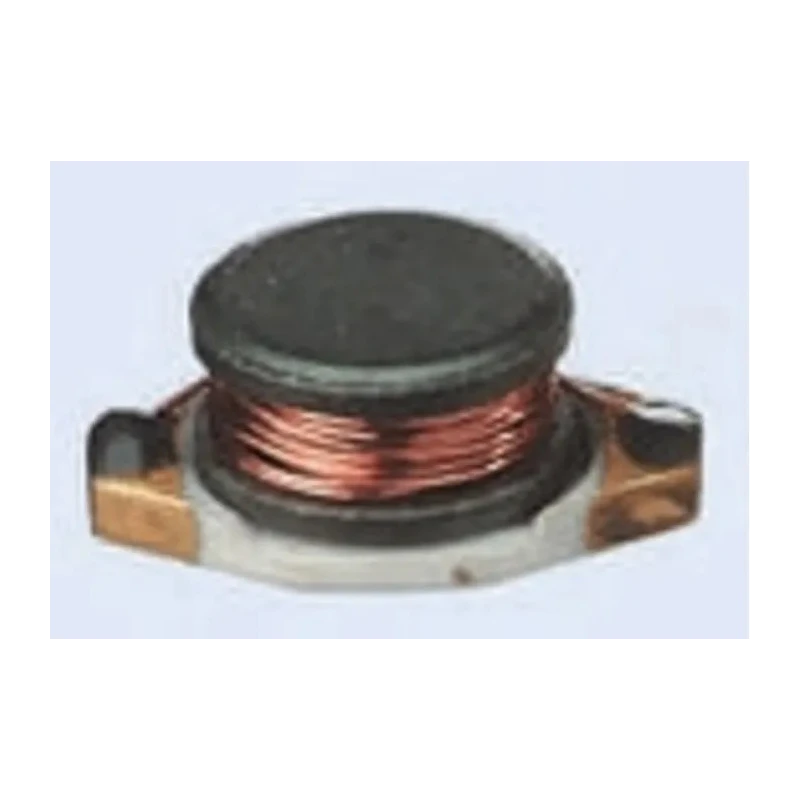

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±20% 1.4 A Idc 74455068
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 4.45mm |
| Brand | Wurth Elektronik |
| Height | 2.92mm |
| Length | 6.6mm |
| Model | 74455068 |
| Depth | 4.45mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | JEDEC JS709B, REACH, RoHS |
| Maximum DC Current | 1.4A |
| Maximum DC Resistance | 130mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 45MHz |
| Inductor Construction | Unshielded |
Key Features
- Compact design suitable for surface mounting applications.
- Low loss ferrite core improves power efficiency.
- Rated maximum operating temperature of 100°C.
- Unshielded wire wound construction with maximum DC resistance of 130 mΩ.
- Compliant with JEDEC JS709B, REACH, and RoHS standards.
- Ideal for high efficiency switched-mode power supplies and interference suppression.
- Available in tape and reel packaging for automated assembly.
- Operates reliably between -40°C and 100°C.
Product Description
Wurth Elektronik 74455068 WE-PD4 series unshielded wirewound surface mount inductor incorporates a ferrite core designed for efficient EMI suppression and power handling in electronic circuits. It features a 6.8 μH inductance with ±20% tolerance and a maximum DC current rating of 1.4 A Idc. This component is molded with a low loss ferrite core supporting frequencies up to 45 MHz and a maximum operating temperature of 100°C.
The inductor’s wirewound construction delivers excellent electrical performance with a maximum DC resistance of 130 mΩ. It does not include shielding, making it compact and suitable for low-interference applications. Termination style is optimized for surface mount soldering.
The WE-PD4 series is approved to comply with JEDEC JS709B, REACH, and RoHS industry standards, ensuring environmental and regulatory compliance. It is particularly suited for industrial, laboratory, and manufacturing environments requiring high efficiency switched-mode power supply units and reliable interference suppression.
This product is supplied in tape and reel packaging to support high volume automated PCB assembly processes. Its compact dimensions of 6.6 mm length, 4.45 mm diameter, and 2.92 mm height enable integration into dense circuit board layouts.
Country of origin is China. The inductor operates steadily within a temperature range from -40°C to 100°C, making it suitable for diverse ambient conditions in electronic and electrical equipment.
Compact design suitable for surface mounting applications. Low loss ferrite core improves power efficiency. Rated maximum operating temperature of 100°C. Unshielded wire wound construction with maximum DC resistance of 130 mΩ.
Compliant with JEDEC JS709B, REACH, and RoHS standards. Ideal for high efficiency switched-mode power supplies and interference suppression. Available in tape and reel packaging for automated assembly. Operates reliably between -40°C and 100°C.
Explore more Surface Mount Inductors and electronic components from Wurth Elektronik at EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.8 μH with a tolerance of ±20%.
This inductor has a maximum DC current rating of 1.4 A Idc.
The dimensions are 6.6 mm in length, 4.45 mm in diameter, and 2.92 mm in height.
The maximum operating temperature is rated at 100°C.
It features an unshielded wire wound construction.
The maximum DC resistance is 130 mΩ.
It is compliant with JEDEC JS709B, REACH, and RoHS standards.
It is supplied in tape and reel packaging, suitable for automated assembly.
The minimum operating temperature is -40°C.
The maximum self-resonant frequency is 45 MHz.
It is particularly suited for high efficiency switched-mode power supplies and interference suppression.
The core material is ferrite, which helps improve power efficiency.
