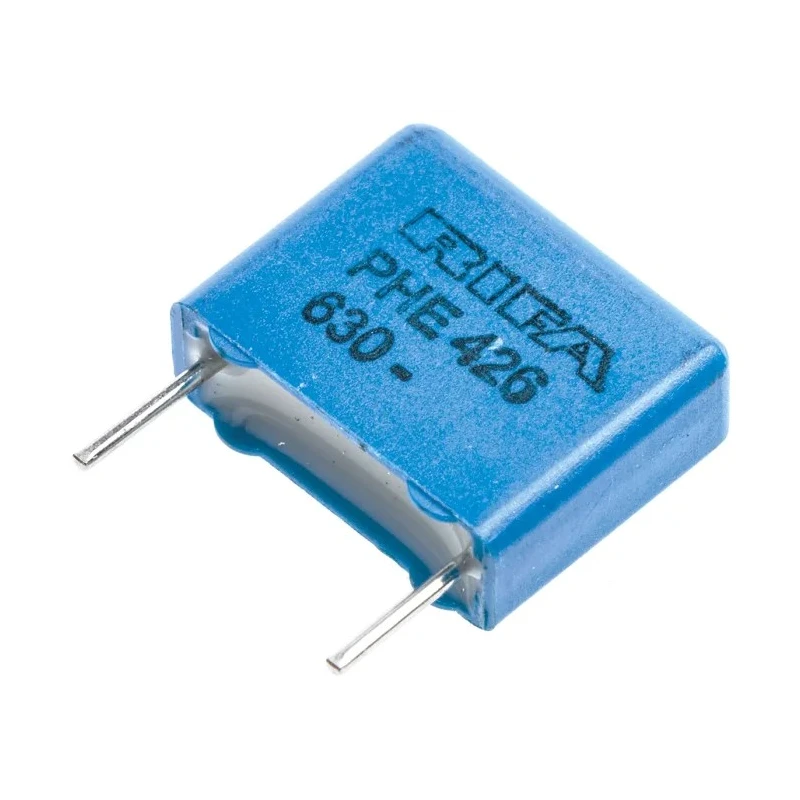

KEMET Film Capacitor Through Hole Radial 22 nF ±5 % 630 V dc 160 V ac PHE426

KEMET PHE426 Film Capacitor is a high-quality through hole capacitor designed for demanding electronic applications. Featuring a capacitance of 22 nF with a ±5 % tolerance, it supports a rated DC voltage of 630 V and an AC voltage rating of 160 V, providing reliable performance in power electronics and signal filtering.

This radial lead capacitor has a lead pitch of 10 mm and lead length of 5 mm, allowing secure and easy PCB mounting. Its encapsulation with UL94V-0 self-extinguishing material ensures enhanced safety and compliance with stringent industrial standards.

Capable of operating in temperatures from -55°C to 105°C, this capacitor is ideal for pulse operations in switched-mode power supplies, televisions, monitors, and electrical ballasts, performing well in high-frequency environments due to its low dissipation factor of 0.05%.

The compact physical size being 13 mm long, 10.5 mm high, and 4.5 mm wide makes it suitable for space-constrained PCB layouts. It meets IEC 60384-16 standards, ensuring its quality and safety for industrial, manufacturing, and electronics design applications.

This capacitor is ideal for designers and engineers working in industrial, laboratory, electronic manufacturing, and consumer electronics sectors. The product comes packaged in boxes, ready for efficient insertion into production lines to improve manufacturing throughput.

KEMET's PHE426 film capacitors are widely used in electronic assemblies requiring dependable pulse and snubber capacitor solutions with stable capacitance and long service life. Radial through hole design enhances mechanical stability in electronic circuits.

Its robust construction and high voltage rating suit industrial power electronics and commercial electronic devices. Explore our extensive range of capacitors and Film Capacitors at EnvMart suitable for various electronic and industrial needs.
