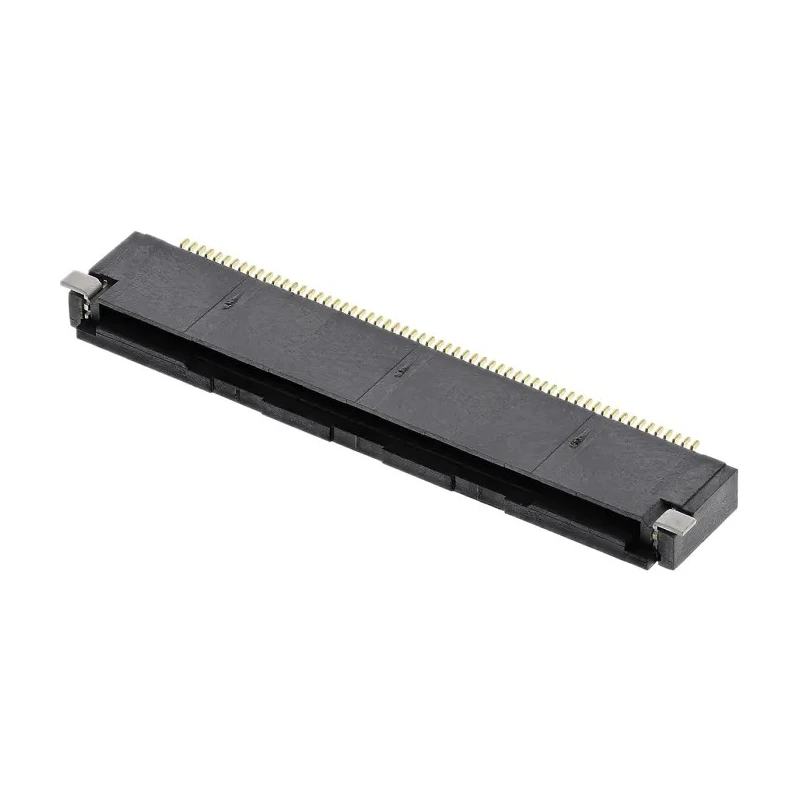

Hirose 60 Way Right Angle Female FPC Connector 0.5 mm Pitch Surface Mount Solder Termination FH28

Hirose FH28E-60S-0.5SH(05) is a 60 way right angle female FPC (Flexible Printed Circuit) connector designed for surface mount solder termination. It features a 0.5 mm pitch spacing compatible with flexible flat cables (FFC) and FPCs of standard thickness 0.3 mm. The connector incorporates a zero insertion force (ZIF) flip-lock actuator which ensures easy insertion of the cable and a robust retention mechanism that includes reinforced metal fittings and a tactile click on full closure, confirming secure locking.

The housing is manufactured from liquid crystal polymer, providing durability and allowing the connector to be mounted over conductive PCB traces without risk of electrical shorts. Phosphor bronze contacts with gold plating deliver reliable electrical conductivity and resistance to corrosion. The design includes side catches that improve retention of tabbed FPCs by aligning and securing them accurately, while also functioning as strain relief to enhance mechanical reliability.

Operating temperature range spans from -40°C to 105°C, making this connector suitable for demanding industrial and consumer electronics applications. It supports currents up to 500mA and voltages up to 50 volts AC. The right angle configuration allows for compact PCB layouts where vertical space is limited.

This FPC connector finds applications in industrial equipment, consumer electronics, GPS navigation systems, test and measurement devices, barcode readers, and medical instrumentation. Its robust construction and locking features enhance durability in environments subject to mechanical stress.

Zero insertion force flip-lock actuator ensures easy cable insertion and secure locking. Side catches enable firm retention and accurate alignment of tabbed FPC cables. Gold-plated phosphor bronze contacts provide excellent electrical performance and corrosion resistance.

Liquid crystal polymer housing supports mounting over conductive PCB traces. Operates reliably from -40°C to 105°C for industrial-grade applications. Supports 60 contacts with 0.5 mm pitch and 500mA current capacity. Right angle female orientation optimizes PCB space usage.
