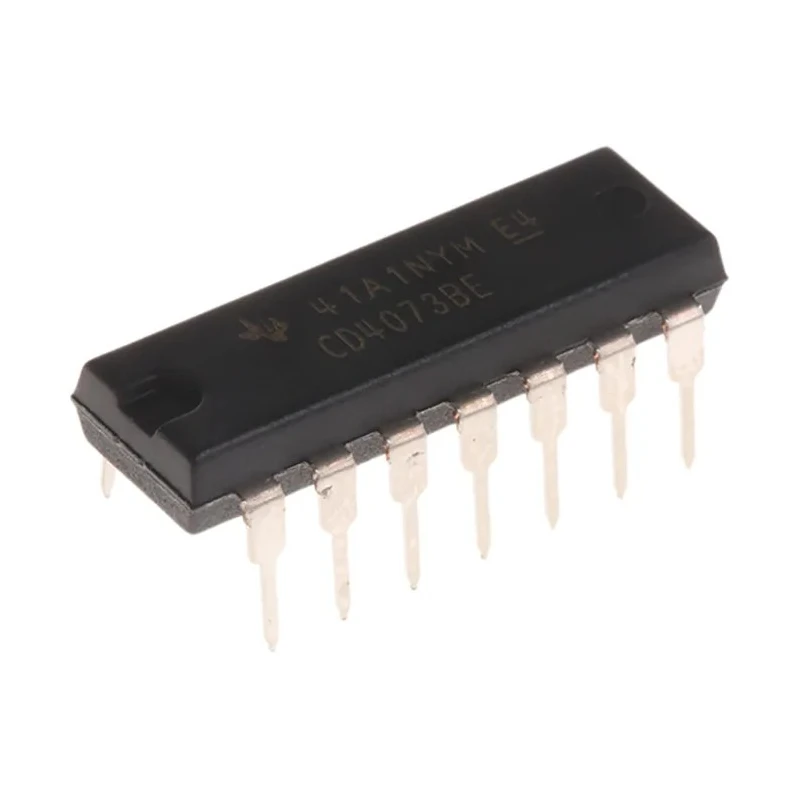

Texas Instruments 3 3-Input AND Logic Gate 14-Pin PDIP CD4073BE

Texas Instruments CD4073BE is a high-quality 3 3-Input AND Logic Gate offered in a 14-Pin PDIP through-hole package, designed for robust industrial and electronic circuit applications.

This logic IC belongs to the 4000 CMOS Logic Family known for low power consumption and wide operating voltage range between 3 V and 18 V, making it versatile for various power supply environments.

The device integrates 3 independent AND logic gates, each with 3 CMOS inputs, making it suitable for combining multiple digital signals in synchronous and asynchronous logic circuits.

It has a maximum propagation delay time of 90 ns (at specified load capacitance), ensuring rapid signal processing for moderately high-speed digital logic requirements. The operating temperature range from -55°C to 125°C supports demanding industrial environments and temperature conditions.

Featuring a durable 14-pin PDIP package optimized for through-hole mounting, it ensures straightforward integration with printed circuit boards and prototyping setups. Maximum output currents are -4.2 mA for high-level and 4.2 mA for low-level outputs, providing stable signal drive capabilities.

Manufactured in Malaysia, the CD4073BE meets reliability demands for semiconductor applications across industrial, laboratory, and electronic manufacturing sectors. Comprises 3 logic elements each with 3 inputs for AND operation.

Wide operating voltage range from 3 V to 18 V allows versatility in power supply design. Maximum propagation delay time at CL is 90 ns ensuring responsive switching. Operates reliably in temperatures from -55°C to 125°C for industrial usage.

Package type PDIP with 14 pins facilitates through-hole mounting. CMOS input type contributes to low power consumption. Maximum high level output current -4.2 mA and low level 4.2 mA for signal integrity.

This CD4073BE 3 Input AND Logic Gate from Texas Instruments is ideal for use in industrial automation, electronic signal processing, laboratory equipment, and embedded system designs requiring reliable digital logic functions.
