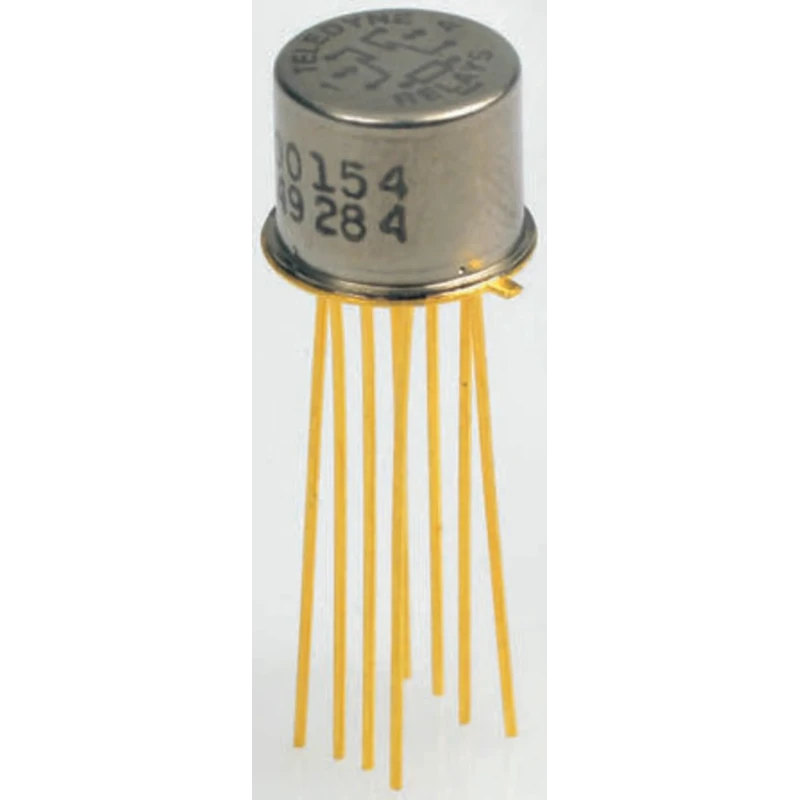

Teledyne PCB RF Relay, 26V DC Coil, DPDT, Gold Plated Contacts, 450mW Coil Power ER412-26A

Teledyne ER412-26A PCB RF Relay is a hermetically sealed DPDT relay optimized for RF applications with a coil voltage of 26V DC and gold plated contacts for superior conductivity and durability.

Designed specifically for ultraminiature RF switching, it offers low intercontact capacitance and minimal contact circuit losses, making it ideal for frequency ranges extending well into the UHF spectrum.

The relay has a coil resistance of 1560Ω and a coil power rating of 450mW, ensuring efficient actuation. It measures 9.4mm in length and 9.86mm in height, supporting PCB through-hole mounting.

Its operating temperature range spans from -65°C to 125°C, allowing for stable operation in demanding industrial, telecommunications, and laboratory environments.

The relay also features high EMI shielding and exceptional ESD resistance, enhancing its reliability in sensitive electronic circuits subject to electrical noise and static discharge.

Gold plated metal alloy contacts provide superior switching performance. Compact form factor optimized for PCB mounting applications. Durable coil with 1560Ω resistance and 450mW power consumption. Wide operating temperature from -65°C to 125°C.

Designed to withstand shock and vibration with a unique uniframe design. RoHS compliant and certified to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. This Teledyne RF relay is suitable for industrial automation, telecommunications, laboratory instrumentation, and high-frequency RF signal switching applications.
