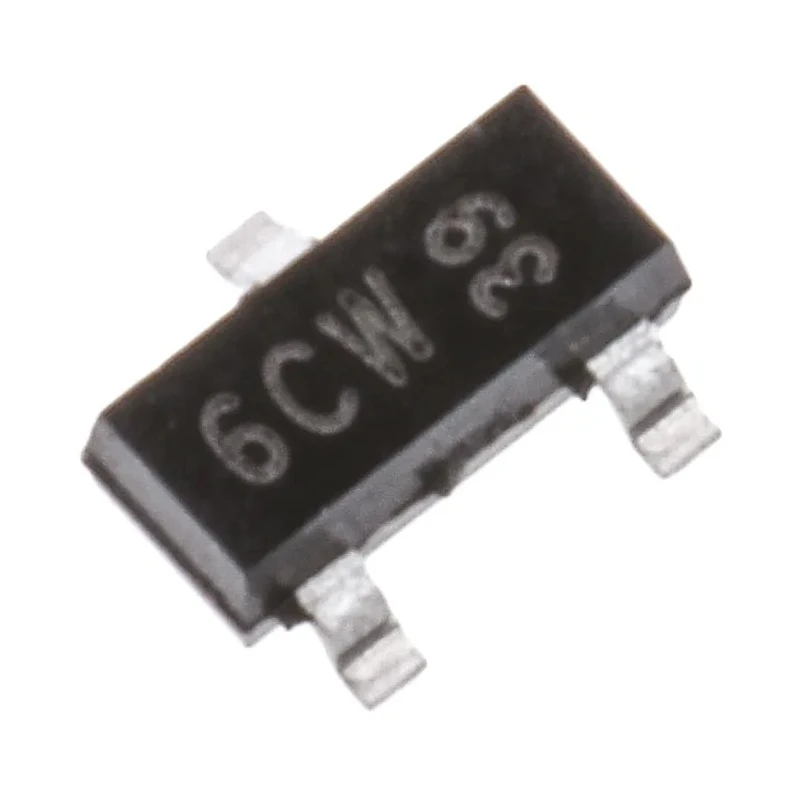

Nexperia Transistor, 500 mA NPN Small Signal, 45 V, 3-Pin SOT-23 BC817-40,215

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Transistor, 500 mA NPN Small Signal, 45 V, 3-Pin SOT-23 BC817-40,215

Name: Nexperia Transistor, 500 mA NPN Small Signal, 45 V, 3-Pin SOT-23 BC817-40,215
Brand: Nexperia
SKU: 182653
Price: 0.03 USD
Availability: InStock



Category Bipolar Transistors Brand Nexperia Condition New

Specifications

Country of Origin	India
Brand	Nexperia
Height	1.11mm
Length	3mm
Model	BC817-40,215
Width	2.5mm
Mount Type	Surface
Series	BC817
Maximum Operating Temperature	150°C
Package Type	SOT-23
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	3
Maximum Collector Emitter Voltage Vceo	45V
Minimum DC Current Gain hFE	250
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	5V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	250mW
Maximum DC Collector Current Idc	500mA
Transistor Configuration	Single
Maximum Transition Frequency ft	100MHz
onsemi BC817-40LT1G Transistor, 500 mA NPN, 45 V, 3-Pin SOT-23Brand	onsemi

Key Features

This transistor has a maximum collector current (Idc) of 500 mA.
Maximum collector-emitter voltage (Vceo) is rated at 45 V, suitable for moderate voltage applications.
The transistor configuration is single with NPN polarity for general purpose switching and amplification.
It has a minimum DC current gain (hFE) of 250, ensuring good amplification capability.
Maximum power dissipation is 250 mW, suitable for low power signal applications.
Operates reliably in temperature ranges from -65°C to 150°C, supporting a broad thermal environment.
Package type is SOT-23, enabling compact surface mount design and easy PCB assembly.
Complies with RoHS standards and the automotive AEC-Q101 standard, ensuring quality and environmental compliance.

Product Description

Nexperia BC817-40,215 transistor is a high-quality small signal NPN bipolar transistor designed for use in electronic components, power and connectors, and discrete semiconductor applications.

With a maximum collector current of 500 mA and collector-emitter voltage rating of 45 V, this transistor is suitable for moderate voltage switching and amplification in circuits. The device comes in a compact SOT-23 surface mount package with a 3-pin configuration, facilitating easy and compact PCB layout.

The transistor exhibits a minimum DC current gain (hFE) of 250 and maximum power dissipation of 250 mW, ensuring strong and reliable signal amplification in low power applications.

Operating temperature ranges from -65°C to a maximum of 150°C, making it suitable for a wide variety of industrial, automotive, and commercial environments. This transistor complies with the RoHS environmental standard and automotive industry AEC-Q101 standard, assuring safety and endurance for automotive and industrial applications.

Physical dimensions are conducive to compact PCB designs, measuring 3 mm in length, 2.5 mm in width, and 1.11 mm in height. The maximum transition frequency of 100 MHz supports high frequency switching and amplification tasks in various electronic devices.

This transistor has a maximum collector current (Idc) of 500 mA. Maximum collector-emitter voltage (Vceo) is 45 V. Package type is SOT-23 suitable for surface mount applications. Minimum DC current gain (hFE) of 250 ensures excellent amplification.

Operating temperature range spans from -65°C to 150°C for reliability. Compliant with RoHS and automotive AEC-Q101 standards. Ideal for use in industrial, automotive, manufacturing, and electronic design applications requiring reliable small signal transistors.
