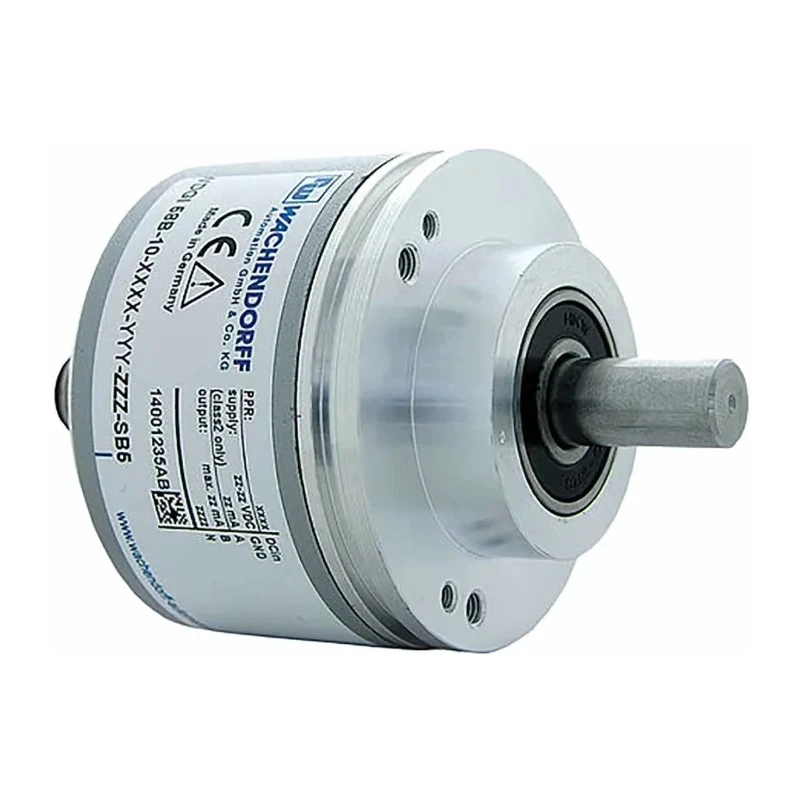

Wachendorff WDGI 58B Series Incremental Encoder 5.5V DC 4096 PPR RS422 TTL Inverted Signal Solid Shaft WDG58B-4096-ABN-I05-K3

Wachendorff WDG58B-4096-ABN-I05-K3 is a high-precision incremental rotary encoder designed for industrial motion control and automation applications. Operating at 5.5V DC, it delivers 4096 pulses per revolution, enabling accurate recording of rpm, position, distance, or speed.

The encoder features a solid 10mm shaft, robust aluminium housing, and clamping flange mount for secure installation. It is engineered to handle high axial and radial loads, ensuring durability in harsh industrial environments.

The unit supports RS422 and TTL inverted output signals, compatible with various control systems. Its high switching frequency of 200 kHz allows for responsive feedback. Protection ratings IP65 on the shaft and IP67 on the cover ensure resistance against dust and moisture, suitable for demanding conditions.

Operating temperature ranges from -20°C to 80°C, broadening its application scope across industrial, manufacturing, and automation sectors. The compact 83mm by 83mm dimensions facilitate fitting in standard equipment installations.

This encoder is compliant with DIN VDE 0160 standards and is manufactured in the United States, promising quality and reliability. Features Incremental Encoder technology with 4096 pulses per revolution for accurate positioning.

Operates at a maximum speed of 8000 rpm ensuring reliable high-speed performance. Solid shaft with 10mm diameter suitable for various mounting configurations. Supports RS422 and TTL inverted output signals for versatile interface compatibility.

Supplied voltage of 5.5V DC with high switching frequency of 200 kHz. Robust aluminium housing with clamping flange mount offers IP65 and IP67 protection ratings. Operates reliably within temperature range of -20°C to 80°C for industrial environments.

Compact 83mm width and height dimensions fit standard applications. Designed to withstand high axial and radial loads with early warning output functionality. Manufactured in the United States adhering to DIN VDE 0160 standards for industrial quality.
