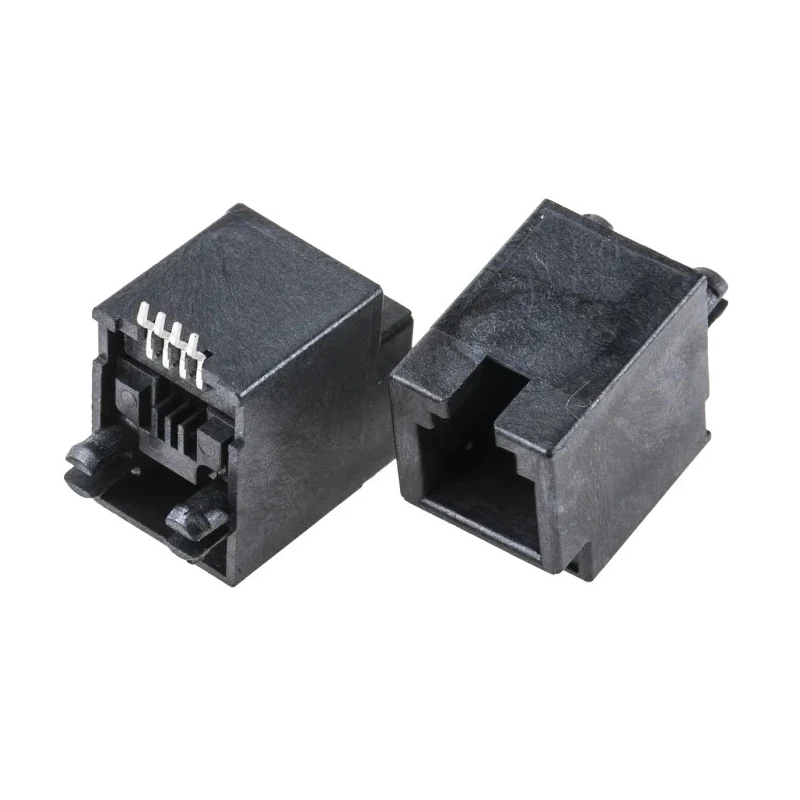

Molex RJ22 Cat3 Unshielded Female Modular Jack Connector Surface Mount 1 Port 4 Way 95503 Series
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 11.18mm |
| Model | RJ22 |
| Depth | 15.08mm |
| Connector Type | Modular Jack |
| Number Of Ways | 4 |
| Width | 15.7mm |
| Mount Type | Surface |
| Contact Material | Brass |
| Series | 95503 |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Shield Type | Unshielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| LAN Category | Cat3 |
| Ethernet Connector Type | RJ22 |
Key Features
- High reliability gold-plated contacts ensure excellent conductivity.
- Compact dimensions of 15.7mm width, 15.08mm depth, and 11.18mm length.
- Surface mount type suitable for PCB installations.
- Unshielded modular jack designed for Cat3 LAN category performance.
- Operating temperature range from -40°C to 85°C for robust use.
- Brass contact material with gold over nickel plating for durability.
- Straight connector orientation for easy cable alignment.
- Solder termination type compatible with standard PCB assembly processes.
Product Description
Molex RJ22 Cat3 Unshielded Female Modular Jack Connector, model RJ22 from the 95503 series, designed for network and telecom equipment requiring reliable connectivity. This surface mount connector offers a single port with a 4-way contact configuration, providing stable unshielded communications for Ethernet and telecom applications.
Constructed with brass contacts plated with gold over nickel, the connector provides high conductivity and resistance to corrosion, ensuring long-term durability. Its compact design measures 15.7mm in width, 15.08mm depth, and 11.18mm length, optimized for PCB mounting with surface mount capabilities suitable for SMT and through-hole PCB assembly.
The RJ22 connector supports Cat3 LAN category standards for voice and low-speed data transmission suitable for legacy telecom systems or other Ethernet applications requiring unshielded modular jacks. It operates reliably within a temperature range from -40°C to 85°C, making it applicable for various industrial and commercial environments.
The connector features a straight orientation with solder termination type, facilitating straightforward, secure PCB installation. This product is UL recognized and CSA certified, meeting standard safety and quality benchmarks.
High reliability gold-plated contacts ensure excellent conductivity. Compact dimensions of 15.7mm width, 15.08mm depth, and 11.18mm length. Surface mount type suitable for PCB installations. Unshielded modular jack designed for Cat3 LAN category performance.
Operating temperature range from -40°C to 85°C for robust use. Brass contact material with gold over nickel plating for durability. Straight connector orientation for easy cable alignment. Solder termination type compatible with standard PCB assembly processes.
This Molex RJ22 connector series is widely applicable in electronic components manufacturing, telecom network hardware assemblies, and any industrial or commercial equipment requiring reliable Cat3 Ethernet connections.
Browse more Molex Connectors and network components in the Electronics & Electricals category at EnvMart for comprehensive connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has compact dimensions of 15.7mm in width, 15.08mm in depth, and 11.18mm in length.
It operates reliably within a temperature range from -40°C to 85°C, making it suitable for various industrial and commercial environments.
The RJ22 connector features a solder termination type, which is compatible with standard PCB assembly processes.
The contacts are made of brass and are plated with gold over nickel to ensure high conductivity and resistance to corrosion.
This model is designed with a single port configuration.
It is designed for Cat3 LAN category performance, suitable for voice and low-speed data transmission.
The connector features a straight orientation, which facilitates easy cable alignment during installation.
Yes, it is a surface mount type, optimized for PCB installations.
The RJ22 connector has a 4-way contact configuration.
Yes, it is UL recognized and CSA certified, meeting standard safety and quality benchmarks.
It is widely applicable in electronic components manufacturing, telecom network hardware assemblies, and any equipment requiring reliable Cat3 Ethernet connections.
This connector belongs to the 95503 series by Molex.
