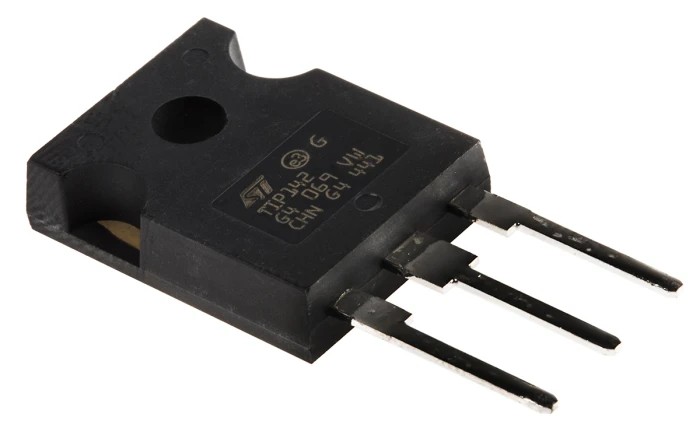

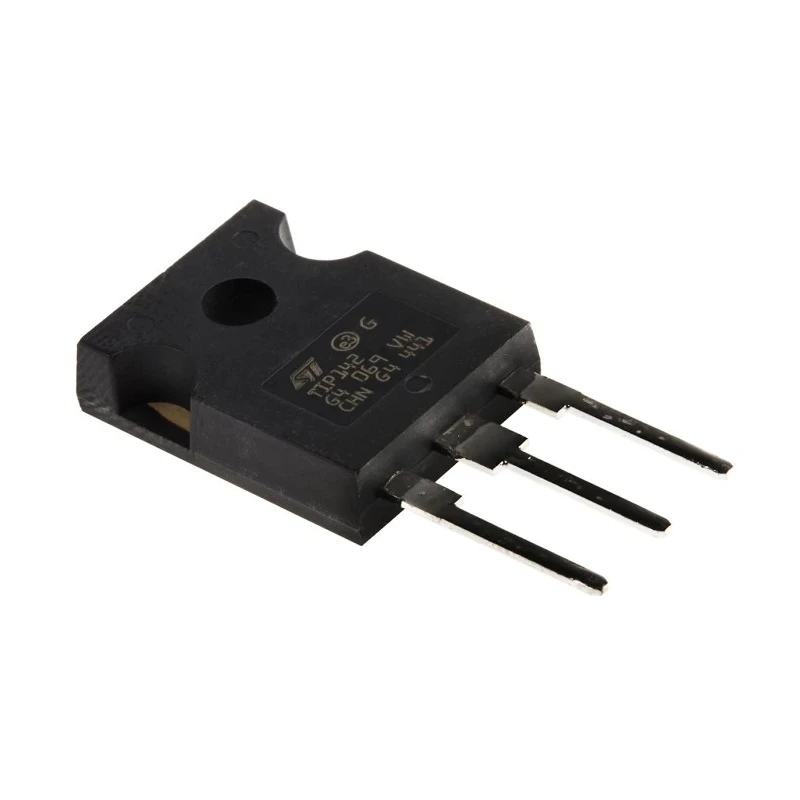

STMicroelectronics NPN Darlington Transistor 10 A 100 V HFE 500, TO-247 Package TIP142

STMicroelectronics TIP142 is a high-performance NPN Darlington Transistor designed for power switching and amplification applications. Rated for a maximum continuous collector current of 10 A and a collector-emitter voltage of 100 V, it ensures excellent electrical performance in demanding industrial environments.

Housed in a robust TO-247 through-hole package with three pins, the TIP142 features a high minimum DC current gain (hFE) of 500, enabling efficient signal amplification and switching. It supports power dissipation up to 125 W, facilitating reliable operation under high power loads.

The device supports a wide operating temperature range from -65°C to 150°C, making it suitable for various industrial, power electronics, and control system applications. A maximum collector-emitter saturation voltage of 2 V allows for improved efficiency in switching applications.

Key technical specifications include maximum emitter-base voltage of 5 V and maximum collector base voltage of 100 V, providing robust voltage handling capabilities. The transistor polarity is NPN, supporting standard circuit configurations in discrete semiconductor designs.

Additional features of the TIP142 include low collector cut-off current and absence of automotive standards, focusing on reliable industrial and laboratory usage scenarios. This component is ideal for electronic components, power & connectors, discrete semiconductor applications, and Darlington pair circuits.

High current gain with minimum DC current gain (hFE) of 500. Robust TO-247 package suitable for through-hole mounting. Maximum power dissipation of 125 W for efficient heat handling. Wide operating temperature range from -65°C to 150°C.

Low collector-emitter saturation voltage of 2 V for enhanced efficiency. Designed for NPN polarity with 3 pins. Maximum emitter-base voltage is 5 V to ensure device protection. Maximum collector base voltage rating of 100 V.

Reliable transistor with a maximum collector cut-off current of 1 mA. Industrial-grade component suitable for power and amplification applications.

The TIP142 is well-suited for use in industrial electronics, power supply controls, amplification circuits, and other high-power semiconductor applications. For more transistor and semiconductor products, explore the Electronics & Electricals category at EnvMart.
