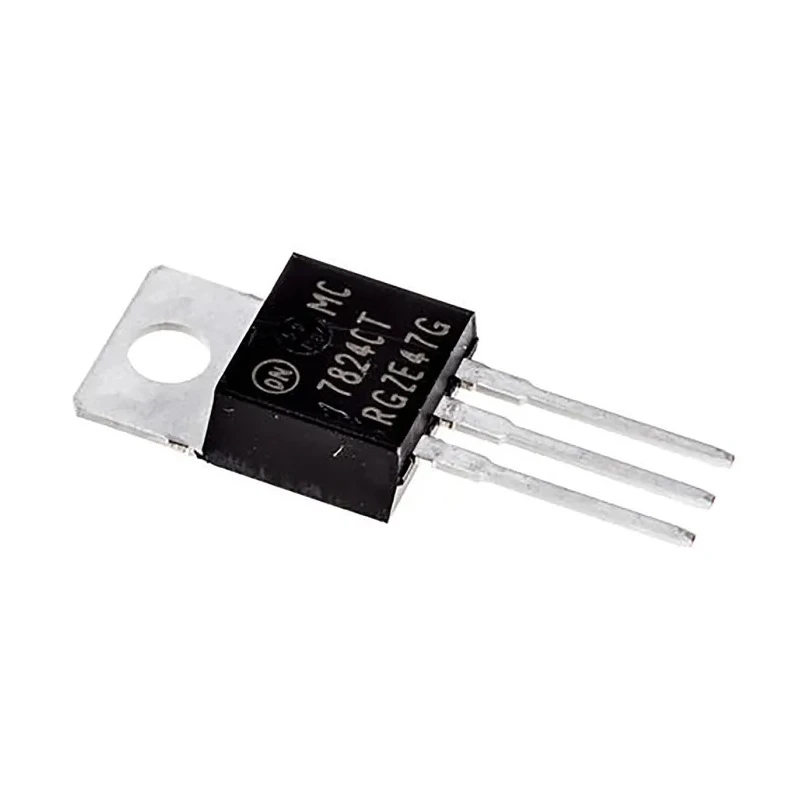

onsemi 5-Channel Linear Voltage Regulator 1 A 24V TO-220 3-Pin MC7824CTG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi MC7824CTG, 5-Channel Linear, Voltage Regulator, 1 A, 24V, TO-2 |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7824CTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MC78xx |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 65 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 40V |
| Output Voltage | 24V |
| Quiescent Current | 3.6mA |
| Line Regulation | 60 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 24V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- This voltage regulator is designed for positive polarity operation.
- Features a TO-220 3-pin package for easy integration.
- Ensures consistent linear regulation with 60 mV line regulation and 65 mV load regulation.
- Supports operating temperatures ranging from 0°C to 125°C.
- Complies with RoHS standards and automotive AEC-Q100 certification for reliability.
- Quiescent current consumption is low at 3.6 mA.
- Maximum input voltage supported is 40V, with minimum input voltage of 24V.
Product Description
onsemi MC7824CTG is a high-performance 5-channel linear voltage regulator designed for stable power regulation in electronic circuits requiring 24V fixed output at 1 Amp current capacity.
The device utilizes a TO-220 3-pin through-hole package, enabling straightforward mounting and secure connections. It features positive polarity output and fixed output voltage with a focus on precise linear regulation.
This voltage regulator delivers excellent line regulation of 60 mV and load regulation of 65 mV, ensuring steady voltage under varying load and input fluctuations. Its low quiescent current of 3.6mA further enhances power efficiency making it suitable for energy-sensitive applications.
The MC7824CTG operates effectively within a temperature range of 0°C to 125°C, ensuring robust performance in diverse and demanding environments including automotive applications, as supported by the AEC-Q100 automotive standard compliance.
The compact dimensions of 30.02 mm height, 4.82 mm width, and 10.28 mm length make this component ideal for space-constrained PCB layouts. It conforms to RoHS compliance standards ensuring eco-friendly manufacturing practices.
This voltage regulator is typically used in industrial, automotive, and embedded systems to provide reliable power management solutions. The design supports up to 40V maximum input voltage and 24V minimum input voltage, suitable for various regulated power supply designs.
This voltage regulator is designed for positive polarity operation. Features a TO-220 3-pin package for easy integration. Ensures consistent linear regulation with 60 mV line regulation and 65 mV load regulation. Supports operating temperatures ranging from 0°C to 125°C.
Complies with RoHS standards and automotive AEC-Q100 certification for reliability. Compact dimensions: height 30.02 mm, width 4.82 mm, length 10.28 mm. Quiescent current consumption is low at 3.6 mA. Maximum input voltage supported is 40V, with minimum input voltage of 24V.
Explore onsemi Voltage Regulators on EnvMart for a wide range of power management ICs suitable for industrial and automotive electronic systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MC7824CTG provides a fixed output voltage of 24V.
This voltage regulator supports a maximum input voltage of 40V.
It has a current capacity of 1 Amp.
The dimensions of this model are 30.02 mm in height, 4.82 mm in width, and 10.28 mm in length.
The quiescent current consumption is low at 3.6 mA.
It features a line regulation of 60 mV.
The load regulation is specified at 65 mV.
This voltage regulator operates effectively within a temperature range of 0°C to 125°C.
It utilizes a TO-220 3-pin through-hole package for easy integration.
The MC7824CTG complies with the AEC-Q100 automotive standard.
Yes, it complies with RoHS standards, ensuring eco-friendly manufacturing practices.
This model provides 5 outputs.
