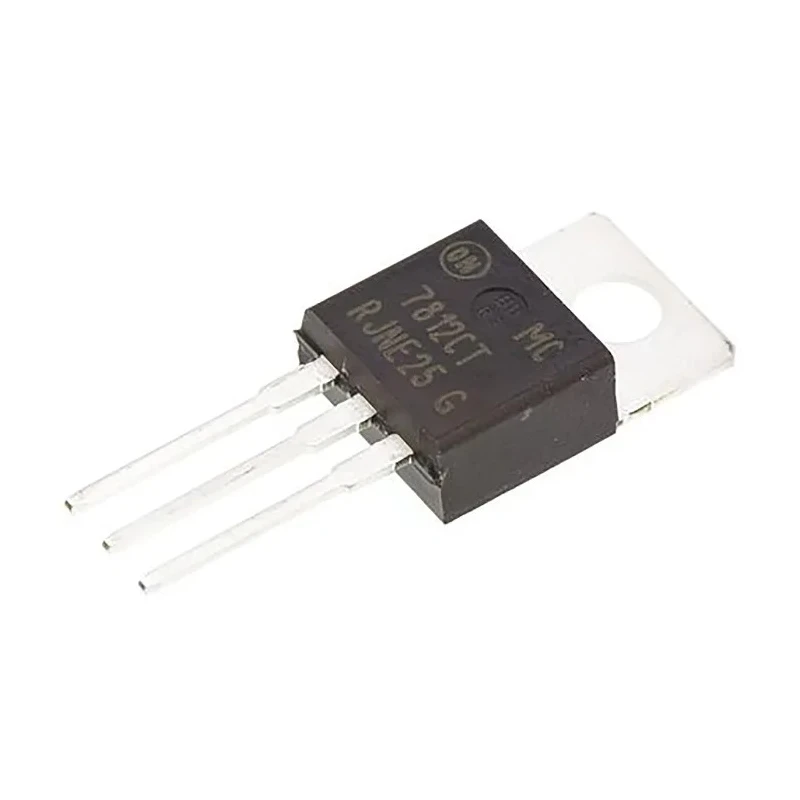

onsemi 5-Channel Linear Voltage Regulator 12V 1A TO-220 3-Pin MC7812CTG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Regulators onsemi MC7812CTG, 5-Channel Linear, Voltage Regulator, 1 A, 12V, TO-2 |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7812CTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MC78xx |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 60 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 12V |
| Quiescent Current | 3.4mA |
| Line Regulation | 48 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 12V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides fixed 12V output voltage with positive polarity.
- Features internal thermal overload and short circuit protection for safe operation.
- Supports up to 5 outputs with low quiescent current of 3.4mA.
- RoHS compliant Pb-free device ensuring environmental safety.
- Operates within temperature range of 0°C to 125°C for reliable performance.
- Compact TO-220 package with dimensions 30.02mm height, 10.28mm length, 4.82mm width.
- Minimum input voltage is 12V; maximum input voltage is 35V.
- Suitable for a wide range of electronics applications requiring stable voltage regulation.
Product Description
onsemi MC7812CTG is a monolithic integrated fixed-voltage linear regulator designed for stable 12V output at 1A current. It is packaged in a TO-220 3-pin through-hole mount suitable for various electronics and power management applications.
This voltage regulator features five output channels and incorporates built-in internal thermal overload protection and short circuit current limiting, ensuring safety and durability in electronic circuits. The device maintains accurate voltage regulation with 1.5% to 4% tolerance options.
Its low quiescent current of 3.4mA maximizes efficiency, and the positive polarity fixed output is ideal for diverse electronics projects needing consistent power supply.
The MC7812CTG is RoHS compliant and Pb-free, aligning with modern environmental standards. It is tested to operate reliably in ambient temperatures from 0°C to 125°C, with a maximum input voltage of 35V and minimum 12V input requirement.
Typical applications include local on-card regulation in consumer and automotive electronics where robust, safe, and accurate voltage regulation is essential. The device meets automotive standard AEC-Q100 ensuring suitability for automotive grade circuits.
Provides fixed 12V output voltage with positive polarity. Features internal thermal overload and short circuit protection for safe operation. Supports up to 5 outputs with low quiescent current of 3.4mA. RoHS compliant Pb-free device ensuring environmental safety.
Operates within temperature range of 0°C to 125°C for reliable performance. Compact TO-220 package with dimensions 30.02mm height, 10.28mm length, 4.82mm width. Minimum input voltage is 12V; maximum input voltage is 35V.
Suitable for a wide range of electronics applications requiring stable voltage regulation. Complies with automotive standard AEC-Q100 for enhanced quality. Explore more Voltage Regulators and power management ICs at EnvMart for your industrial, automotive, and electronics projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a fixed output voltage of 12V.
The maximum input voltage is 35V, with a minimum input requirement of 12V.
This model supports up to 5 output channels.
It can deliver a maximum output current of 1A.
The quiescent current is 3.4mA, which helps maximize efficiency.
The dimensions are 30.02mm in height, 10.28mm in length, and 4.82mm in width.
It operates reliably within a temperature range of 0°C to 125°C.
It features internal thermal overload protection and short circuit current limiting for safe operation.
Yes, it is RoHS compliant and Pb-free, ensuring environmental safety.
It complies with the automotive standard AEC-Q100, ensuring suitability for automotive applications.
It is a linear voltage regulator with a positive polarity fixed output.
The load regulation is specified at 60 mV.
