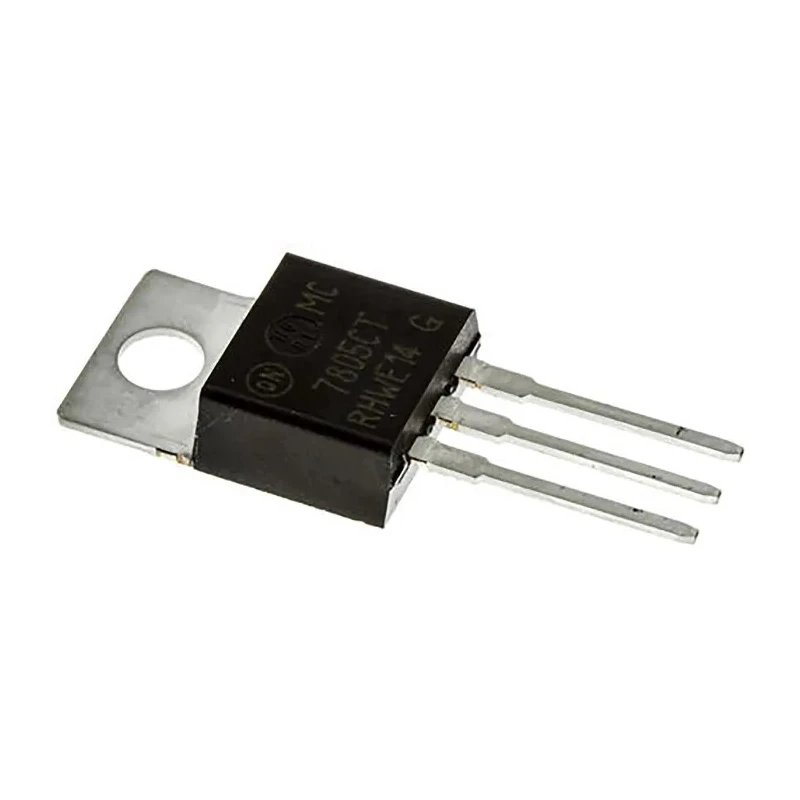

onsemi 5-Channel Linear Voltage Regulator 1 A 5V TO-220 3-Pin MC7805CTG
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Voltage | Regulators onsemi MC7805CTG, 5-Channel Linear, Voltage Regulator, 1 A, 5V, TO-22 |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.28mm |
| Model | MC7805CTG |
| Width | 4.82mm |
| Mount Type | Through Hole |
| Output type | Fixed |
| Series | MC78xx |
| Output Current | 1A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-220 |
| Load Regulation | 25 mV |
| Minimum Operating Temperature | 0°C |
| Polarity | Positive |
| Regulator Type | Linear |
| Number of outputs | 5 |
| Maximum Input Voltage | 35V |
| Output Voltage | 5V |
| Quiescent Current | 3.2mA |
| Line Regulation | 20 mV |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides fixed 5V output voltage with positive polarity.
- Features internal thermal overload protection and current limiting.
- Mount type is through-hole suitable for various PCB designs.
- Line regulation of 20 mV and load regulation of 25 mV ensures stable voltage supply.
- Complies with RoHS standards and automotive AEC-Q100 certification.
- Operating temperature ranges from 0°C to 125°C suitable for harsh environments.
- Package dimensions are 30.02 mm height, 10.28 mm length, and 4.82 mm width.
- Quiescent current is low at 3.2 mA making it power efficient.
Product Description
onsemi MC7805CTG is a 5-channel fixed 5V linear voltage regulator, designed to deliver 1 A of output current efficiently in a TO-220 3-pin through-hole package. It integrates internal thermal overload protection, current limiting, and safe area compensation to ensure reliable operation in various electronic applications.
This linear voltage regulator belongs to the MC7805 family from ON Semiconductor, known for robust performance in local or on-card voltage regulation solutions. The positive polarity output design makes it suitable for power regulation in industrial, automotive, and consumer electronic circuits.
Key technical parameters include low quiescent current of 3.2 mA, tight line regulation of 20 mV and load regulation of 25 mV for consistent and stable output voltage. Its operation is certified under RoHS compliance and automotive AEC-Q100 standards, qualifying it for automotive applications and high-reliability environments.
The regulator supports a maximum input voltage of 35V and operates reliably within a temperature range from 0°C to 125°C, making it apt for demanding temperature conditions. Its compact physical size with dimensions 30.02 mm height, 10.28 mm length, and 4.82 mm width facilitates easy integration in PCB layouts.
This device is ideal for industrial electronics, power management in embedded systems, automotive voltage regulation, and laboratory equipment.*. Fixed 5V output with 1 A current capacity. Internal thermal and current protection.
Through-hole TO-220 3-pin mounting. RoHS compliant and automotive certified. Wide operating temperature range. Explore the complete range of onsemi Voltage Regulators at EnvMart for your power management requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an output current capacity of 1 A.
The maximum input voltage for the MC7805CTG is 35V.
The package dimensions are 30.02 mm in height, 10.28 mm in length, and 4.82 mm in width.
The line regulation is specified at 20 mV, ensuring stable voltage output.
The load regulation for this voltage regulator is 25 mV.
It operates reliably within a temperature range from 0°C to 125°C.
This model uses a through-hole mounting type suitable for various PCB designs.
It complies with RoHS standards and is certified under automotive AEC-Q100.
The quiescent current is low at 3.2 mA, contributing to its power efficiency.
This voltage regulator features 5 channels for output.
It provides a fixed output voltage of 5V.
It is a linear voltage regulator with positive polarity output.
