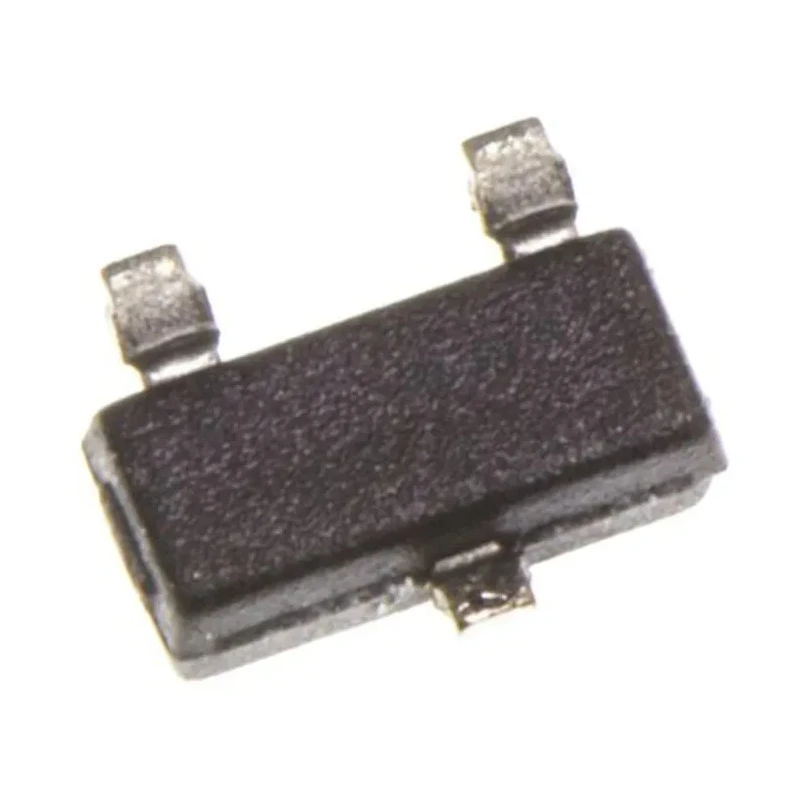

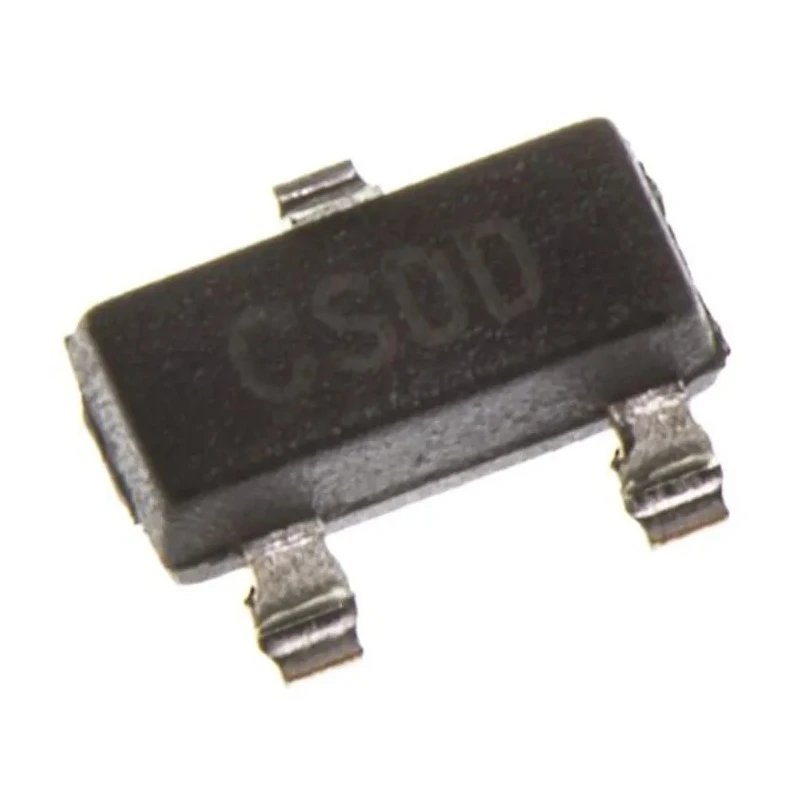

Renesas Electronics Fixed Series Voltage Reference 4.096V ±0.2 % Initial Accuracy Surface Mount SOT-23 ISL21010DFH310Z-T7A
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Renesas Electronics |
| Height | 950μm |
| Length | 2.92mm |
| Model | ISL21010DFH310Z-T7A |
| Mount Type | Surface |
| Output type | Fixed |
| Series | ISL21010 |
| Temperature Coefficient | 15 ppm/°C |
| Output Current | 25mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Load Regulation | 110 μV/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 5.5V |
| Line Regulation | 100 μV/V |
| Minimum Input Voltage | 2.2V |
| Pin Count | 3 |
| Reference Voltage | 4.096V |
| Initial Accuracy | ±0.2 % |
Key Features
- Offers stable fixed voltage reference with a 4.096V output for accurate power management applications.
- Initial accuracy of ±0.2 % ensures tight voltage regulation over temperature.
- Compact 3-pin SOT-23 package suitable for surface mounting on PCBs.
- Supports an output current up to 25mA for versatile load conditions.
- Operates reliably over a temperature range of -40°C to 125°C for automotive and industrial environments.
- Low line regulation of 100 μV/V and load regulation of 110 μV/mA for stable operation.
- Maximum input voltage rating of 5.5V with a minimum of 2.2V input voltage.
- Temperature coefficient of 15 ppm/°C minimizes voltage drift in varying thermal conditions.
Product Description
Renesas Electronics ISL21010DFH310Z-T7A fixed series voltage reference is engineered to deliver a precise and stable 4.096V output voltage with a tight initial accuracy of ±0.2 %. Housed in a compact 3-pin SOT-23 surface mount package, this component is ideal for compact circuit designs requiring accurate reference voltage sources.
This voltage reference IC supports an output current capacity of up to 25mA, making it versatile for various load demands. It operates safely across a wide temperature range from -40°C to 125°C, suiting automotive and industrial electronics environments.
The device features excellent line regulation at 100 μV/V and load regulation at 110 μV/mA, ensuring minimal voltage variation with input supply and load changes. Its temperature coefficient of 15 ppm/°C helps reduce output voltage drift across temperature fluctuations, enhancing measurement accuracy.
With a maximum permissible input voltage of 5.5V and a minimum operating input voltage of 2.2V, the ISL21010DFH310Z-T7A integrates seamlessly into numerous power management IC and precision measurement systems.
The product is manufactured in Malaysia, adhering to international industry standards without automotive certification. Its small form factor of 2.92mm length and 950µm height makes it suitable for high-density PCB layouts.
Provides fixed 4.096V reference voltage with ±0.2 % initial accuracy. 3-pin SOT-23 package for surface mount PCB assembly. Rated for -40°C to 125°C operation temperature range. Output current capability of 25mA. Low line and load regulation improve voltage stability.
Temperature coefficient of 15 ppm/°C reduces drift. Input voltage range between 2.2V and 5.5V. Compact size suitable for tight circuit spaces. Manufactured in Malaysia following industry quality standards.
This voltage reference IC is ideal for industrial, automotive, laboratory, and power management applications demanding accurate and stable voltage references. It enables designers to achieve precise measurement and control in complex electronic systems.
Explore more Voltage Reference and power management solutions on EnvMart to optimize your electronic designs with trusted components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 4.096V.
It has an initial accuracy of ±0.2 % which ensures tight voltage regulation.
It operates reliably over a temperature range of -40°C to 125°C, suitable for automotive and industrial applications.
The maximum permissible input voltage for this device is 5.5V.
It supports an output current capacity of up to 25mA.
This unit is housed in a compact 3-pin SOT-23 surface mount package, ideal for PCB assembly.
It features a low line regulation of 100 μV/V and a load regulation of 110 μV/mA, ensuring stable operation.
The temperature coefficient is 15 ppm/°C, which helps minimize voltage drift with temperature changes.
The minimum input voltage required is 2.2V.
The SOT-23 package has a height of 950μm and a length of 2.92mm, making it suitable for high-density layouts.
It is manufactured in Malaysia, adhering to international industry standards.
This voltage reference is ideal for industrial, automotive, laboratory, and power management applications that require accurate voltage references.
