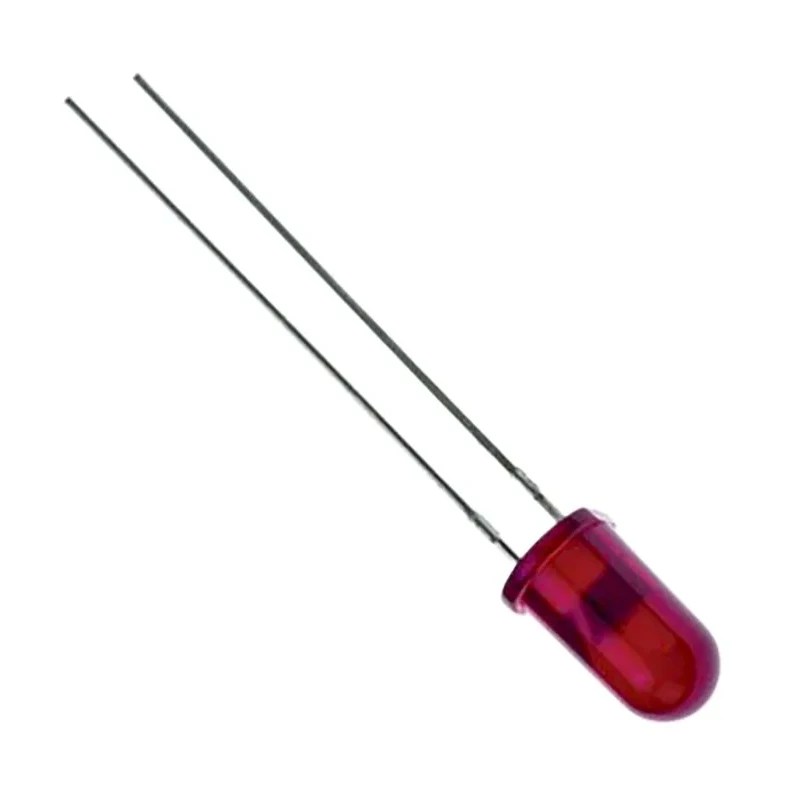

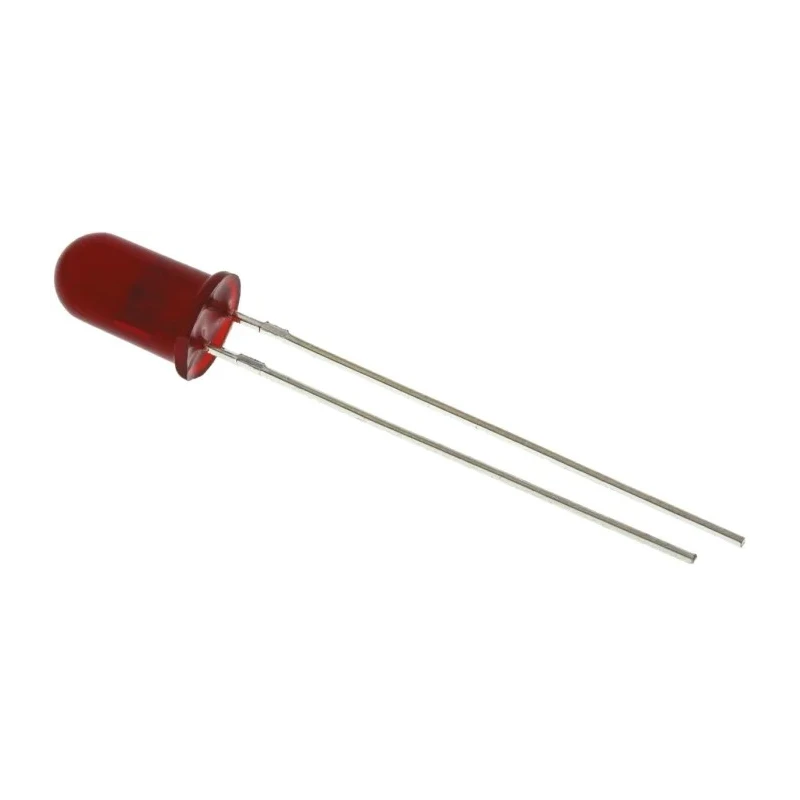

Broadcom 1.8 V Red 5 mm (T-1 3/4) Through Hole LED HLMP-D101

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 1.8 V Red 5 mm (T-1 3/4) Through Hole LED HLMP-D101

Name: Broadcom 1.8 V Red 5 mm (T-1 3/4) Through Hole LED HLMP-D101
Brand: Broadcom
SKU: 181011



Category LED - Light Emitting Diodes Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HLMP-D101
Packaging	Ammo
Mount Type	Through Hole
Series	HLMP
Maximum forward current	20mA
Viewing angle	65 °
Package Type	5 mm (T-1 3/4)
Lens Colour	Red
Standards/Approvals	RoHS
LED Colour	Red
Dominant Wavelength	637nm
Forward Voltage	1.8V
Number of Pins	2
LED Luminosity	70 mcd
Maximum Power Dissipation	87mW
Lens Dimensions	5 x 9.19 mm
Lens Shape	Round
Lens Finish	Diffused, Tinted
- HLMP-D101/D105	T-1 3/4 (5mm) package
- HLMP-K101/K105	T-1 (3mm) package

Key Features

High intensity double heterojunction AlGaAs/GaAs LED technology.
Deep red color with 637 nm dominant wavelength.
Maximum forward current of 20 mA ensures efficient operation.
Wide 65° viewing angle and 70 mcd luminous intensity.
Diffused tinted lens provides uniform light dispersion.
Through hole mounting with 2 pins and Ammo packaging.
Low forward voltage with 87 mW maximum power dissipation.
TTL and CMOS compatible for versatile circuit integration.

Product Description

Broadcom HLMP-D101 is a high intensity red LED designed for through hole mounting, featuring a standard 5 mm (T-1 3/4) round diffused tinted lens. Operating at a forward voltage of 1.8 V and a maximum forward current of 20 mA, it delivers a luminous intensity of 70 mcd and a dominant wavelength of 637 nm. The LED employs advanced double heterojunction AlGaAs/GaAs material technology to ensure high light output efficiency and low power consumption.

This LED's wide 65° viewing angle provides uniform illumination, making it suitable for bright ambient lighting, movable message panels, portable equipment, and general purpose indicator applications. The device is packaged using Ammo packaging for efficient automated insertion and manufacturing processes.

Designed to be TTL and CMOS compatible, the HLMP-D101 can be directly interfaced with standard logic circuits. Its maximum power dissipation of 87 mW allows reliable operation under typical conditions.

The product conforms to RoHS standards, ensuring compliance with environmental regulations. With its robust construction and proven reliability, this LED is an excellent choice for laboratory, industrial, signage, and commercial electronics applications.

High intensity red LED ensuring excellent brightness and longevity. Wide viewing angle for effective wide-area lighting. Low forward voltage and power dissipation reduce energy consumption. Ammo packaging supports automated assembly lines.

RoHS compliant construction for hazardous substance-free operation. Through hole mounting simplifies integration into PCB assemblies. Compatible with TTL and CMOS logic levels for versatile circuitry. Stable operation with 20 mA maximum forward current rating.

Ideal for industrial, commercial, and laboratory LED indications. Explore the comprehensive range of LEDs and other electronic components available in the Electronics & Electricals category at EnvMart.
