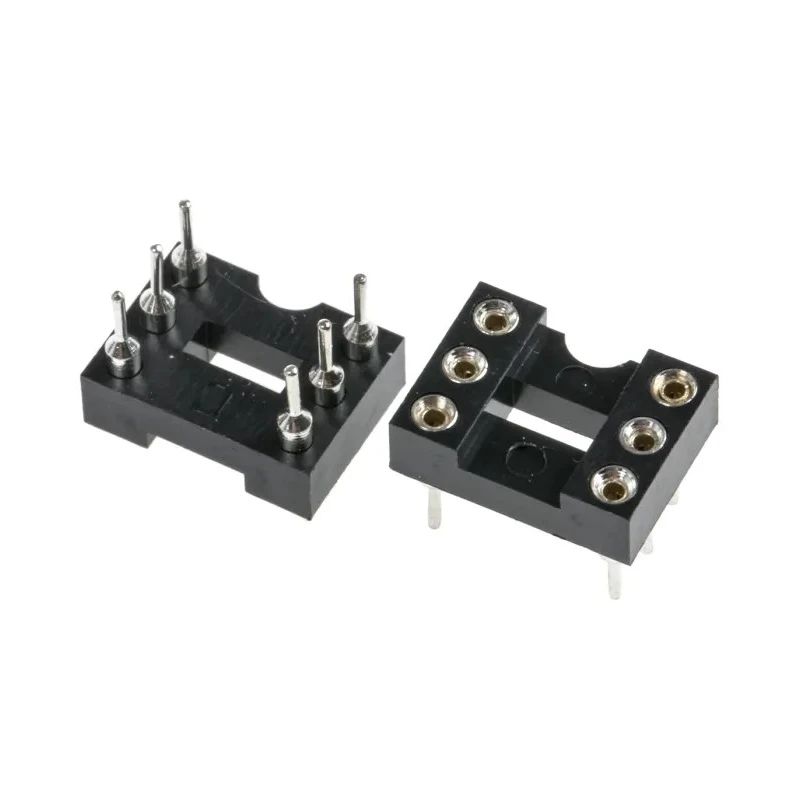

Winslow 2.54 mm Pitch Vertical 6 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30506TRC
Specifications
| Country of Origin | India |
|---|---|
| Brand | Winslow |
| Orientation | Vertical |
| Current | 5A |
| Temperature range | -55°C to +125°C |
| Frame Type | Open Frame |
| Length | 7.54mm |
| Model | W30506TRC |
| Depth | 10.14mm |
| Width | 4.6mm |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Beryllium Copper Alloy |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Pitch | 2.54mm |
| Contact Plating | Tin Lead Alloy |
| Number of Contacts | 6 |
| Pin Type | Turned |
| Row Width | 7.62mm |
| Insertions | 1000 |
| TURNED PIN I.C. SKT 6 WAYBrand | NEUTRAL |
Key Features
- This socket is designed with open frame construction for easy insertion and removal of ICs.
- Turned pin contacts provide secure and stable connections with beryllium copper alloy for durability.
- Supports a current rating of 5A, ensuring efficient performance in circuits.
- Constructed with Polybutylene Terephthalate housing offering heat resistance up to 150°C.
- The socket is rated to withstand up to 1000 insertions, perfect for prototyping and testing.
- Contact plating utilizes tin lead alloy to maintain signal integrity and reliability.
- Suitable for industrial and electronic laboratory applications requiring DIP sockets.
Product Description
Winslow W30506TRC is a high-quality 6 Way DIL Socket with a 2.54 mm pitch, designed for vertical mounting and through-hole PCB installation. Its turned pin contacts ensure secure and stable connections for integrated circuits, ideal for development, testing, and prototype environments.
The socket is constructed with an open frame design, promoting easy insertion and removal of ICs without damage. The contact material is a beryllium copper alloy plated with a tin lead alloy, enhancing durability and consistent electrical performance.
Housing made from Polybutylene Terephthalate resists temperatures up to 150°C allowing reliable use in demanding industrial and laboratory settings. The socket supports a current of 5 amperes and is rated for up to 1000 insertions, making it well-suited for non-permanent wiring and debugging tasks.
Physical dimensions of 4.6mm width, 10.14mm depth, and 7.54mm length enable compact electronic designs and facilitate integration into varied PCB layouts. This product is ideal for users needing robust DIP sockets for electronics manufacturing, prototyping, or repair.
This socket provides reliable, open frame DIL socket functionality with turned pin contacts. Rated for 5A current carrying capacity and a maximum temperature of 150°C. Constructed from durable beryllium copper alloy and PBT housing materials.
Supports up to 1000 IC insertions, suitable for development and testing. Through hole mount type with a 2.54 mm pitch and vertical contact orientation. Compact size to fit in space-constrained circuit designs.
Find this DIL socket ideal for electronic assembly, industrial instrumentation, laboratory electronics prototyping, and manufacturing applications. Explore more electronics components and sockets from Winslow in the EnvMart product catalog.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Winslow W30506TRC DIL socket supports a current rating of 5A, ensuring efficient performance in circuits.
This model has a pitch of 2.54 mm, suitable for standard DIP configurations.
The maximum operating temperature for this socket is 150°C, allowing it to be used in demanding environments.
It is rated to withstand up to 1000 insertions, making it ideal for prototyping and testing applications.
The housing is made from Polybutylene Terephthalate, and the contacts are made from beryllium copper alloy plated with tin lead alloy.
This socket uses a through-hole mounting type, which is standard for PCB installations.
The socket has dimensions of 4.6 mm in width, 10.14 mm in depth, and 7.54 mm in length.
The Winslow W30506TRC socket is designed for vertical orientation, facilitating compact PCB layouts.
This model is suitable for industrial and electronic laboratory applications requiring DIP sockets, particularly in prototyping and testing.
It features turned pin contacts, which provide secure and stable connections for integrated circuits.
The termination type for this socket is solder, which is standard for securing it to PCBs.
The Winslow W30506TRC DIL socket is manufactured in India.
