HARWIN Datamate L-Tek Series Right Angle Surface PCB Header, 8 Contact(s), 2 mm Pitch, 2 Row, Shrouded M80-8280842

Free Delivery in India | Lowest Global Shipping Charges

HARWIN Datamate L-Tek Series Right Angle Surface PCB Header, 8 Contact(s), 2 mm Pitch, 2 Row, Shrouded M80-8280842

Name: HARWIN Datamate L-Tek Series Right Angle Surface PCB Header, 8 Contact(s), 2 mm Pitch, 2 Row, Shrouded M80-8280842
Brand: HARWIN
SKU: 164685



Category PCB Headers Brand HARWIN Condition New

Specifications

Country of Origin	United Kingdom
Voltage	120V
Brand	HARWIN
Orientation	Right Angle
Current	3A
Model	M80-8280842
Mount Type	Surface
Housing Material	Polyphenylene Sulphide
Contact Material	Phosphor Bronze
Series	Datamate L-Tek
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

This shrouded PCB header features a robust board-to-board and wire-to-board connector system.
Constructed with a polyphenylene sulphide housing to ensure durability in demanding applications.
Contacts made from phosphor bronze with gold plating provide reliable electrical connection and corrosion resistance.
Designed for solder termination with male contact gender and a friction latch for secure mating.
Rated for 3A current and 120V voltage, operating in temperatures from -55°C to 125°C.
The connector is right angle oriented with 2 mm row pitch and shrouded for safety and protection.
Complies with harsh environment requirements suitable for industrial, electronic, and manufacturing uses.
Manufactured in the United Kingdom ensuring high quality and adherence to industry standards.

Product Description

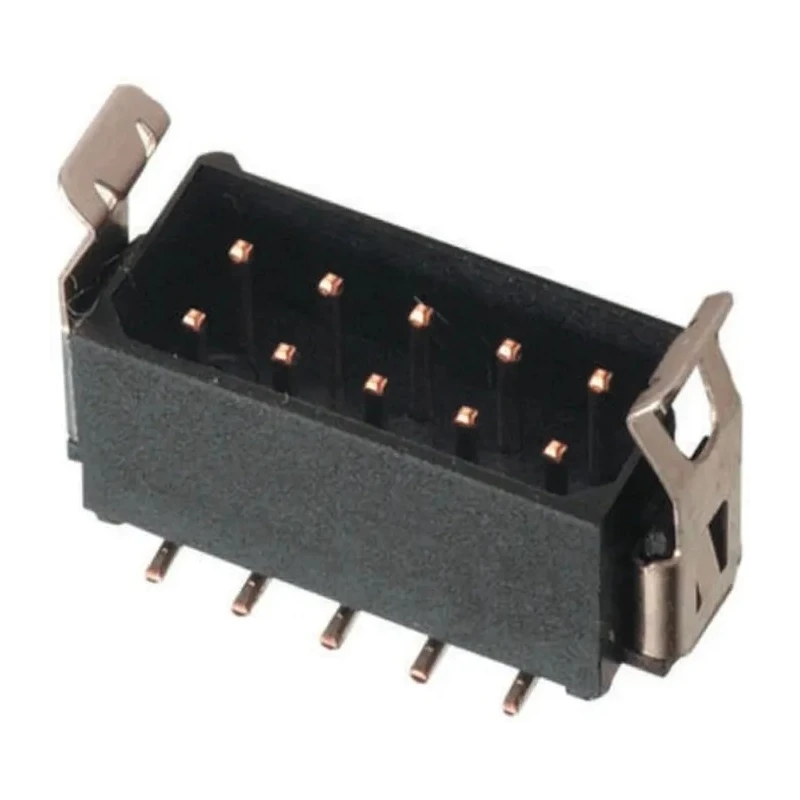

HARWIN M80-8280842 is a high-reliability PCB header from the Datamate L-Tek series, featuring right angle surface mounting with 8 contacts arranged in 2 rows at a 2 mm pitch. This shrouded connector suits applications requiring durable and secure electrical connections in harsh or vibration-prone environments.

The housing is crafted from polyphenylene sulphide, offering excellent resistance to heat and chemicals. Contacts are made from phosphor bronze with gold plating, ensuring reliable conductivity and long cycle life up to many mating cycles without degradation. The connector system supports board-to-board and wire-to-board connections with male contacts terminating via solder.

This Datamate connector series is designed for industrial, electronic, telecommunications, and manufacturing sectors where connection integrity under shock and vibration is critical. Operating voltage is up to 120V with a current rating of 3A, and the temperature range spans from -55°C to 125°C, making it suitable for demanding environments.

The connector includes a friction latch to secure connection while allowing quick disconnection when necessary. It is fully shrouded to prevent damage and enhance safety during installation and operation. Its right angle orientation and surface mount design facilitate compact PCB layouts and ease of assembly.

This connector ensures robust and reliable connections in complex electronic assemblies. Ideal for use in industrial controls, communication equipment, and instrumentation systems. Manufactured in the United Kingdom adhering to strict quality standards, assuring product consistency.

Polarised mouldings prevent incorrect mating, improving system reliability. Compatible with industry equivalents and supports COTS (commercial off-the-shelf) applications. Explore EnvMart’s extensive range of high-quality connectors for reliable electronic design and manufacturing solutions.

Explore more products in our PCB Headers category.
