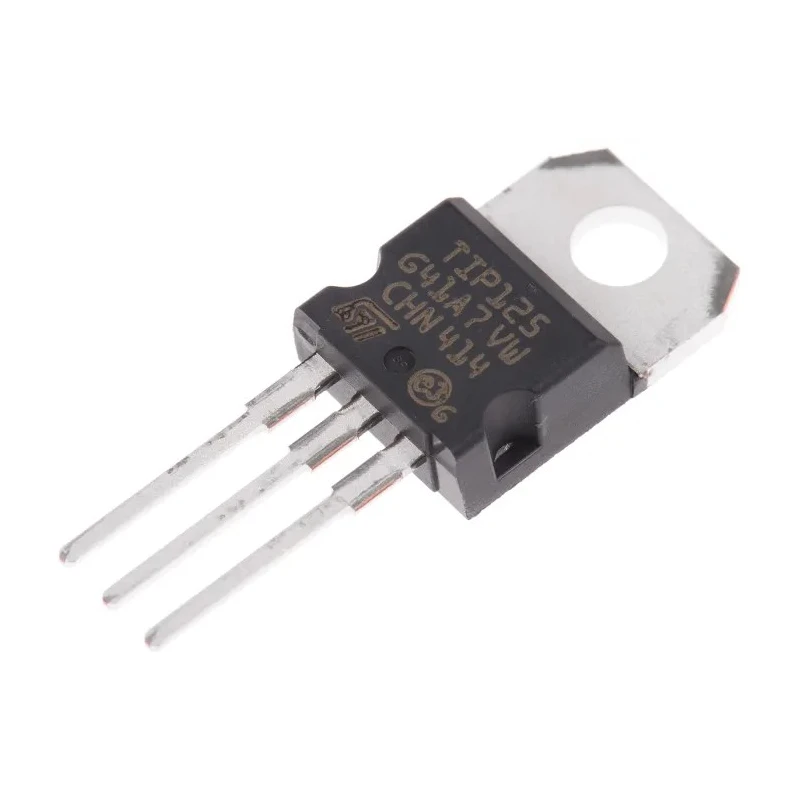

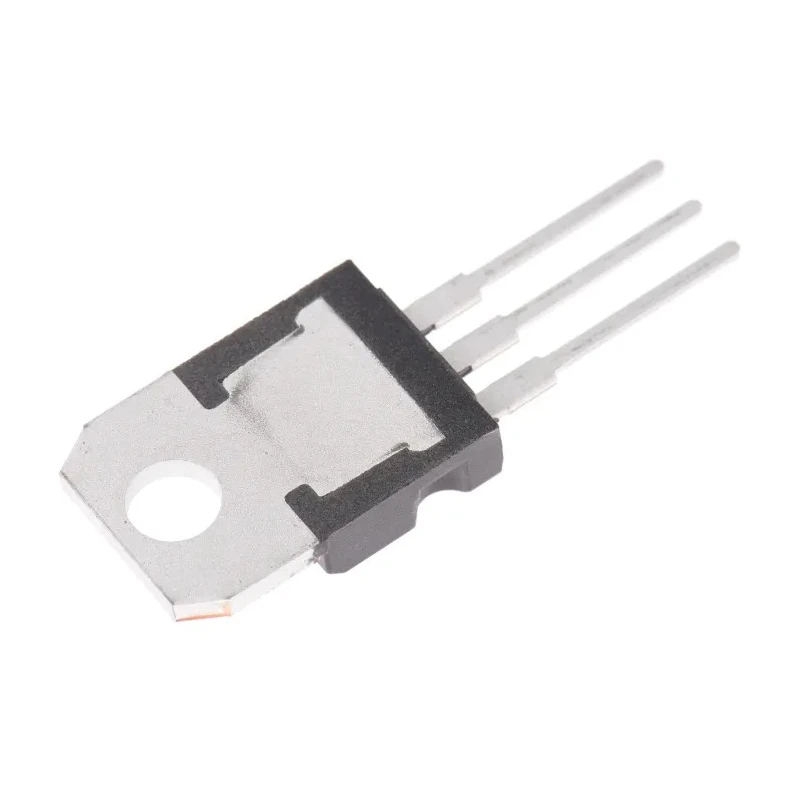

STMicroelectronics Darlington Transistor PNP 5 A 60 V 1000 hFE 3-Pin TO-220 TIP125
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 9.15mm |
| Length | 10.4mm |
| Model | TIP125 |
| Mount Type | Through Hole |
| Series | TIP125 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Maximum Continuous Collector Current Ic | 5A |
| Maximum Collector Emitter Voltage Vceo | 60V |
| Number of Elements per Chip | 1 |
| Minimum DC Current Gain hFE | 1000 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | 5V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2V |
| Maximum Collector Base Voltage VCBO | 60V |
| Maximum Collector Cut-off Current | 0.2mA |
| Maximum Power Dissipation Pd | 65W |
| STMicroelectronics 1 Darlington Transistor PNP, 5 A 60 V HFE | 1000, 3-Pin TO-220 |
Key Features
- Maximum continuous collector current of 5 amperes for high power applications.
- Collector-emitter voltage rated at 60 volts ensuring robust operation.
- High gain featuring a minimum DC current gain (hFE) of 1000 for efficient amplification.
- Durable TO-220 through-hole package with 3 pins for easy PCB mounting.
- Maximum power dissipation of 65 watts supporting heavy load conditions.
- Designed for PNP transistor polarity suitable for various electronic circuits.
- Wide operating temperature range from -65°C to 150°C for industrial environments.
- Maximum emitter-base voltage of 5 volts and collector-base voltage of 60 volts.
Product Description
STMicroelectronics TIP125 is a high-performance PNP Darlington Transistor designed for power electronics applications. It supports a maximum continuous collector current of 5 A and a collector-emitter voltage of 60 V, making it ideal for medium power amplification and switching applications.
This transistor features a minimum DC current gain (hFE) of 1000, delivering excellent amplification capability, and is housed in a robust TO-220 through-hole package with 3 pins for secure mounting on circuit boards.
Engineered to operate reliably in harsh conditions, the TIP125 supports a wide operating temperature range from -65°C to 150°C, suitable for industrial, automotive, and other demanding environments.
The maximum power dissipation of 65 W enables it to handle significant loads without degradation. The device’s maximum emitter-base voltage is 5 V, and the collector-base voltage rating is 60 V, ensuring safe operational margins.
Its compact form factor with dimensions of 10.4 mm length and 9.15 mm height facilitates integration into complex circuits with space constraints. The single transistor element per chip guarantees consistent switching and amplification performance.
Maximum continuous collector current of 5 A. Collector-emitter voltage rating of 60 V. High current gain with minimum hFE of 1000. Durable TO-220 3-pin through-hole package. Maximum power dissipation of 65 W. Designed for PNP transistor polarity.
Wide temperature range: -65°C to 150°C. Emitter-base voltage up to 5 V. Collector-base voltage up to 60 V. Compact size: 10.4 mm length and 9.15 mm height.
This transistor is suitable for industrial electronics, power amplification, motor control, and other applications requiring reliable medium power handling. With its robust electrical characteristics and form factor, it supports enhanced circuit efficiency and durability.
Explore more STMicroelectronics transistors and semiconductor products at EnvMart for your electronics manufacturing and design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current of the TIP125 is 5 amperes, making it suitable for high power applications.
The collector-emitter voltage rating for this model is 60 volts, ensuring robust operation in various applications.
This transistor features a minimum DC current gain (hFE) of 1000, which provides efficient amplification capabilities.
The TIP125 can handle a maximum power dissipation of 65 watts, supporting heavy load conditions without degradation.
The TIP125 is housed in a TO-220 through-hole package, which features 3 pins for easy PCB mounting.
It operates within a wide temperature range from -65°C to 150°C, making it suitable for industrial environments.
This model has a length of 10.4 mm and a height of 9.15 mm, facilitating integration into compact circuits.
The maximum emitter-base voltage for this transistor is 5 volts, ensuring safe operational margins.
This transistor is suitable for applications such as industrial electronics, power amplification, and motor control.
The TIP125 contains a single transistor element per chip, ensuring consistent performance in switching and amplification.
The maximum collector-base voltage rating for the TIP125 is 60 volts, which supports its robust performance in various circuits.
The TIP125 is designed for PNP transistor polarity, making it suitable for various electronic circuits.
