Molex KK 396 Series Right Angle Through Hole Pin Header 12 Contacts 3.96 mm Pitch 1 Row Unshrouded 26-48-1126

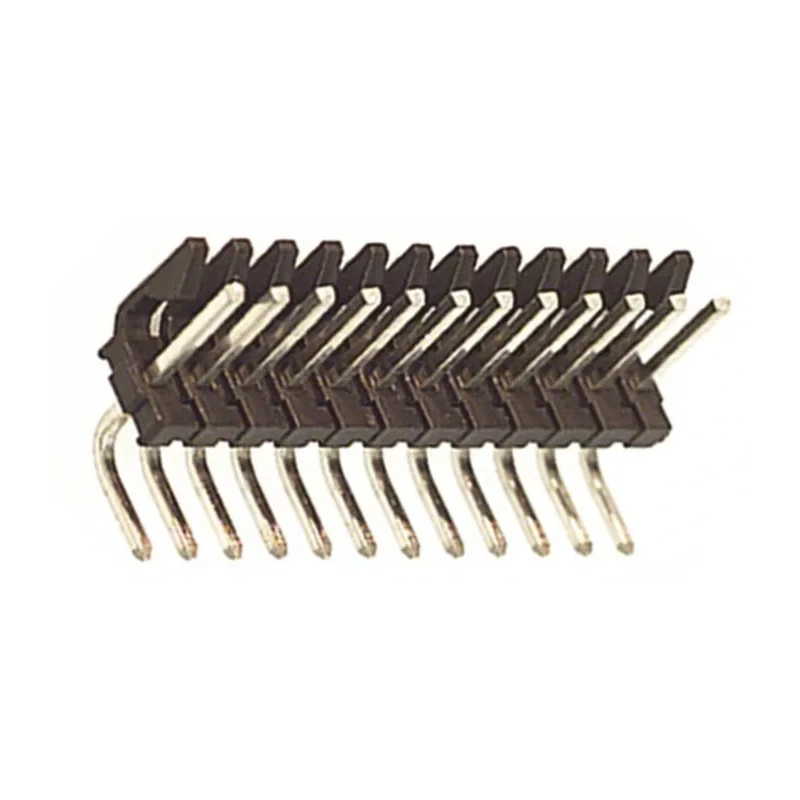

The Molex 26-48-1126 KK 396 Series represents a high-quality right angle through hole pin header designed for electronics assembly and PCB applications. It features 12 male contacts arranged in a single row with a 3.96 mm pitch, supporting wire-to-board connections with excellent electrical performance.

Constructed with brass contact material and a tin plating for corrosion resistance and durability, this pin header ensures consistent conductivity and reliability in demanding industrial environments. The polyester housing provides robust insulation and mechanical stability during assembly and operation.

This unshrouded pin header is designed for through-hole mounting and utilizes solder termination to secure the pins firmly to the PCB. Its right angle orientation facilitates optimal board layout and space saving in electronic designs.

Operating in a temperature range from -40°C to 105°C, it is suitable for a wide range of industrial and commercial electronics applications. The header supports a voltage rating of 250 V and a current rating of 7 A, ensuring effective power and signal transfer.

Typical applications include PCB interconnections in telecommunications, industrial controls, and consumer electronics where durable, high-quality connectivity is required. The unshrouded design facilitates visual inspection and troubleshooting during assembly processes.

Features a right angle orientation for versatile PCB mounting. Comprises 12 male contacts in a single row configuration. Pitch between contacts is 3.96 mm for precise spacing. Constructed with brass contacts plated in tin for reliable conductivity.

Housing made of durable polyester ensuring stability and insulation. Designed for through-hole mounting with solder termination type. Operating temperature range from -40°C up to 105°C for robust performance. Maximum voltage rating of 250 V with 7 A current capacity.

Tail pin length is 5.38 mm to ensure secure PCB contact. Unshrouded design allowing easy inspection and access to pins.

Choose Molex KK 396 Series pin headers for trusted PCB connections in demanding industrial, manufacturing, and electronics applications. Explore EnvMart's extensive range of PCB connectors and headers to find compatible components to complete your assembly needs.
