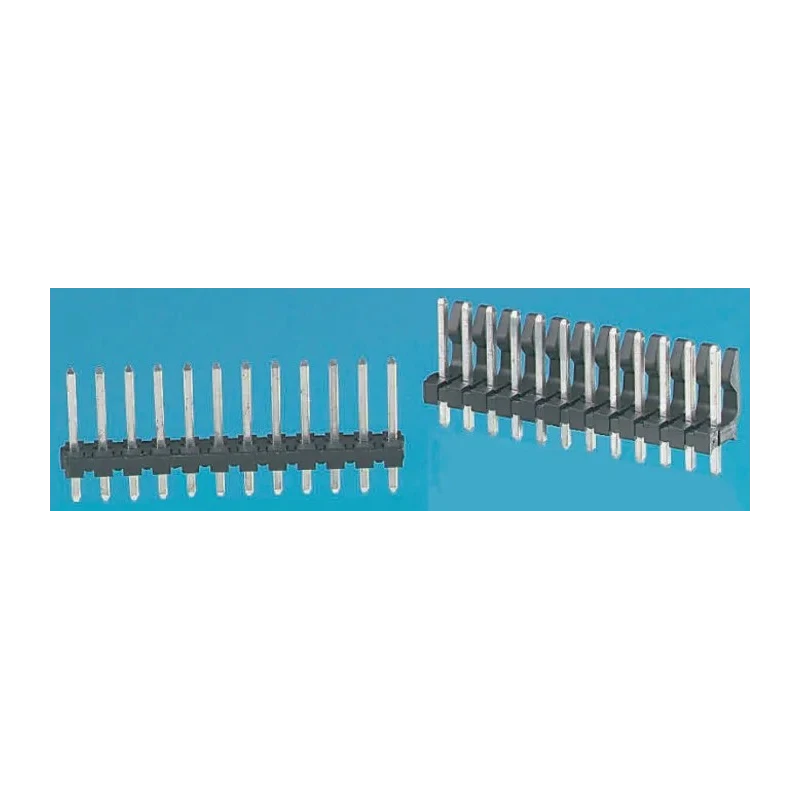

Molex KK 396 Series Straight Through Hole Pin Header 12 Contacts 3.96 mm Pitch 1 Row Unshrouded 26-48-1125
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 7A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | KK 396 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 5.38mm |
Key Features
- Comprises 12 male contacts arranged in a single row for precise PCB interfacing.
- Features 3.96 mm pitch suitable for standard KK 396 range applications.
- Constructed with a polyester housing ensuring durability and electrical insulation.
- Brass contact material with tin plating guarantees reliable conductivity and corrosion resistance.
- Designed for through-hole mounting and solder termination to provide sturdy assembly.
- Operates efficiently at currents up to 7A and voltage up to 250V.
- Wide temperature range from -40°C to 105°C for harsh environment resilience.
- Compatibility with multiple series housings such as 3069, 2139, 6442, enhancing system versatility.
Product Description
Molex 26-48-1125 KK 396 Series Straight Through Hole Pin Header features 12 male contacts arranged in a single row with a 3.96 mm pitch, making it highly suitable for wire-to-board connections in electronic assemblies.
The pin header utilizes a robust polyester housing that provides excellent electrical insulation and mechanical reliability, critical in demanding industrial and commercial electronics manufacturing.
Contacts are made of brass with a tin plating finish to ensure superior electrical conductivity and corrosion resistance, supporting currents up to 7A and voltages up to 250V. This connector is intended for through-hole mounting and uses solder termination for strong mechanical and electrical connections on PCBs.
It supports a broad operating temperature range from -40°C to 105°C, allowing operation in challenging temperature conditions common in industrial and automotive electronics.
The KK 396 series pin header is compatible with various connector housings, including models 3069, 2139, and 6442 series, and mates with IDT connector series providing flexibility in design and manufacturing of electronic systems.
Typical applications include industrial automation, consumer electronics, and communication equipment where reliable and durable PCB interconnections are necessary. Comprises 12 male contacts arranged in a single row for precise PCB interfacing.
Features 3.96 mm pitch suitable for standard KK 396 range applications. Constructed with a polyester housing ensuring durability and electrical insulation. Brass contact material with tin plating guarantees reliable conductivity and corrosion resistance.
Designed for through-hole mounting and solder termination to provide sturdy assembly. Operates efficiently at currents up to 7A and voltage up to 250V. Wide temperature range from -40°C to 105°C for harsh environment resilience.
Compatibility with multiple series housings such as 3069, 2139, 6442, enhancing system versatility.
Explore more PCB connectors and related components in the Electronics Components category on EnvMart to find suitable parts for your industrial, laboratory, commercial, and manufacturing requirements.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this pin header is 3.96 mm, making it suitable for standard KK 396 range applications.
It operates efficiently at currents up to 7A and voltages up to 250V.
The contacts are made of brass with a tin plating finish, ensuring reliable conductivity and corrosion resistance.
The operating temperature range is from -40°C to 105°C, allowing it to function in harsh environments.
This model features 12 male contacts arranged in a single row.
It is designed for through-hole mounting and uses solder termination for strong connections.
It is compatible with multiple series housings such as 3069, 2139, and 6442, enhancing system versatility.
The tail pin length is 5.38 mm, suitable for through-hole applications.
This pin header utilizes a wire-to-board connector system, ideal for PCB interfacing.
The housing is constructed from polyester, providing electrical insulation and mechanical reliability.
This model is unshrouded, allowing for easy access to the contacts.
Typical applications include industrial automation, consumer electronics, and communication equipment where reliable PCB interconnections are necessary.
