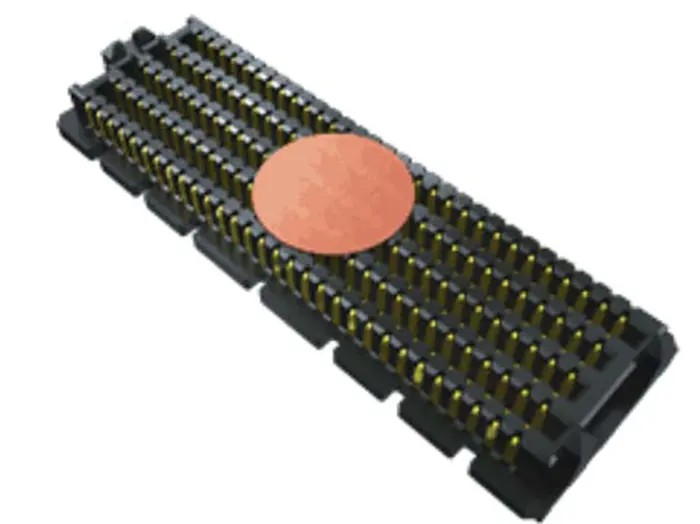

Samtec SEAM Series Straight Surface PCB Header, 500 Contacts, 1.27 mm Pitch, 10 Row, Shrouded SEAM-50-11.0-S-10-2-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec SEAM Series Straight Surface PCB Header, 500 Contacts, 1.27 mm Pitch, 10 Row, Shrouded SEAM-50-11.0-S-10-2-A-K-TR

Name: Samtec SEAM Series Straight Surface PCB Header, 500 Contacts, 1.27 mm Pitch, 10 Row, Shrouded SEAM-50-11.0-S-10-2-A-K-TR
Brand: Samtec
SKU: 105971
Price: 78.28 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	240V
Brand	Samtec
Orientation	Straight
Current	2.7A
Model	SEAM-50-11.0-S-10-2-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	SEAM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	10
Pitch	1.27mm
Contact Plating	Gold or Tin
Number of Contacts	500
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

High-density open-pin-field array terminal suitable for board-to-board connections.
Constructed with Liquid Crystal Polymer housing and copper alloy contacts for durability.
Gold or tin plating over 50 μ" nickel ensures reliable conductivity.
Supports current rating of 2.7 A and voltage rating of 240 V AC.
Operates in a temperature range from -55°C to 125°C.
Shrouded male contacts with solder termination for surface mount application.
Row pitch and pin pitch both maintained at 1.27 mm for precision alignment.
RoHS compliant, ensuring environmental safety standards.

Product Description

Samtec SEAM-50-11.0-S-10-2-A-K-TR PCB Header is a high-density, high-speed straight surface mount connector designed for board-to-board applications. Featuring 500 male contacts arranged in 10 rows with a 1.27 mm pitch, this shrouded header uses a robust Liquid Crystal Polymer housing and copper alloy contacts with gold or tin plating over nickel to ensure reliable electrical performance and durability.

This PCB header supports an operating current of 2.7 A and a voltage rating of 240 V AC, making it suitable for various industrial electronic devices. Its operating temperature range from -55°C up to 125°C allows use in harsh environmental conditions. The solder termination type and surface mount mounting make it ideal for automated assembly in manufacturing environments.

Designed with a shrouded interface, the header ensures secure mating and protection against improper connections. It complies with RoHS directives, confirming adherence to environmental and safety regulations.

High contact count with 500 pins for complex circuit designs. Pitch spacing of 1.27 mm supports compact and precise layouts. Housing material of Liquid Crystal Polymer offers high mechanical strength and thermal stability.

Gold or tin plating provides excellent corrosion resistance and electrical conductivity. Suitable for industrial, electronic manufacturing, and laboratory PCB assembly applications. Surface mount type facilitates integration in automated PCB production lines.

This connector is an essential component for electronics requiring dense and reliable board-to-board connections in industrial, commercial, and laboratory settings. Explore the broader Samtec PCB Header range on EnvMart for compatible and complementary products.
