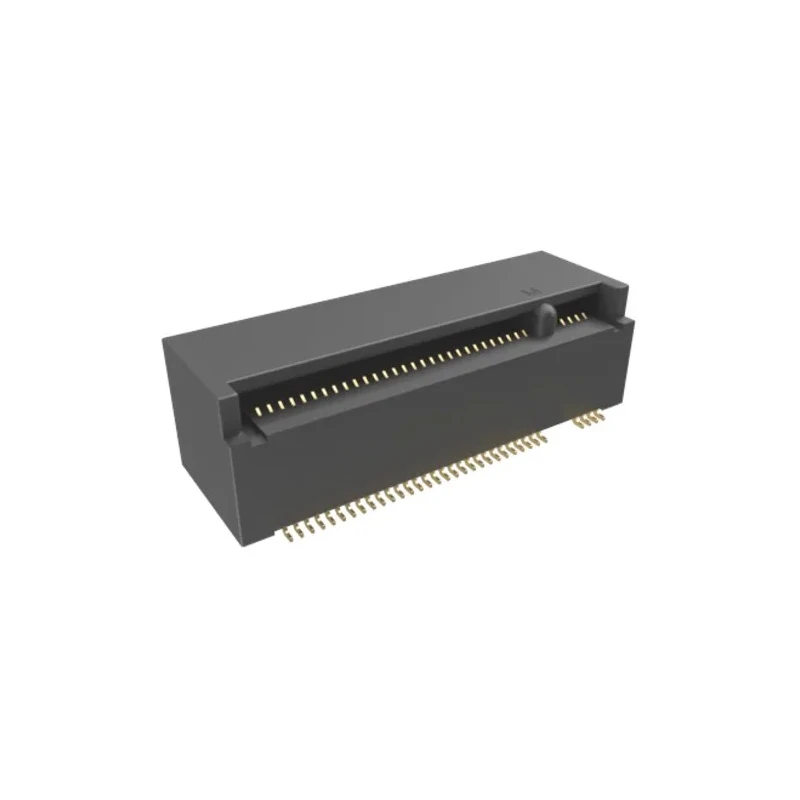

Amphenol Communications Solutions M.2 Gen 5 Series Right Angle Edge Connector Female 67-Contacts 0.5 mm Pitch MDT670M01501
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 750mA |
| Model | MDT670M01501 |
| Mount Type | Board |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | M.2 Gen 5 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 0.5mm |
| Standards/Approvals | UL, RoHS |
| Contact Plating | Gold |
| Number of Contacts | 67 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
Key Features
- The connector features a right angle orientation suitable for board mounting.
- It has 67 female contacts with gold plating for reliable connection.
- Supports a current rating of 750mA and voltage up to 500V.
- Constructed with copper alloy contacts and a thermoplastic housing.
- Operates in temperature ranges from -40°C to 80°C.
- Fully compliant with PCI-SIG PCIe M.2 specifications supporting both single and double-sided modules.
- Offers multiple connector keying options for design flexibility.
- Designed to occupy less board space with various connector height choices.
Product Description
Amphenol Communications Solutions MDT670M01501 M.2 Gen 5 Series Right Angle Edge Connector Female with 67 contacts and 0.5 mm pitch is engineered for high-speed PCIe applications requiring compact and reliable board connectivity.
This Edge Connector provides a right angle mount type, enabling efficient use of board space and accommodating diverse electronic designs. It supports a continuous current of 750mA and a voltage rating of 500V, making it suitable for demanding signal integrity applications.
The connector features gold-plated copper alloy contacts for superior conductivity and corrosion resistance, housed in a durable thermoplastic material designed to withstand operating temperatures from -40°C to 80°C. It also incorporates keying options to prevent mismating and ensure secure connections.
Fully compliant with PCI-SIG PCIe M.2 specifications, the connector supports both single and double-sided modules, providing design flexibility and higher data rate capabilities compared to PCIe Mini Card connectors.
This product is certified to relevant industry standards including UL and RoHS, ensuring safety, reliability, and environmental compliance. Ideal for use in industrial electronics, computing, telecommunications, and other commercial electronic systems.
The connector has a right angle orientation for optimal PCB layout. Consists of 67 female contacts spaced at 0.5 mm pitch. Supports current capacity of 750mA and voltage up to 500V. Constructed with copper alloy contacts plated in gold.
Thermoplastic housing material ensures durability and thermal stability. Operating temperature range from -40°C to 80°C. Multiple connector keying options for application versatility. Compact design reduces PCB footprint and allows various connector heights.
Compliance with PCI-SIG M.2 Gen 5 standard for high-speed data transfer. Certified UL and RoHS standards for quality assurance and environmental safety. For high-performance electronic connector solutions, explore more products from Amphenol Communications Solutions at EnvMart.
