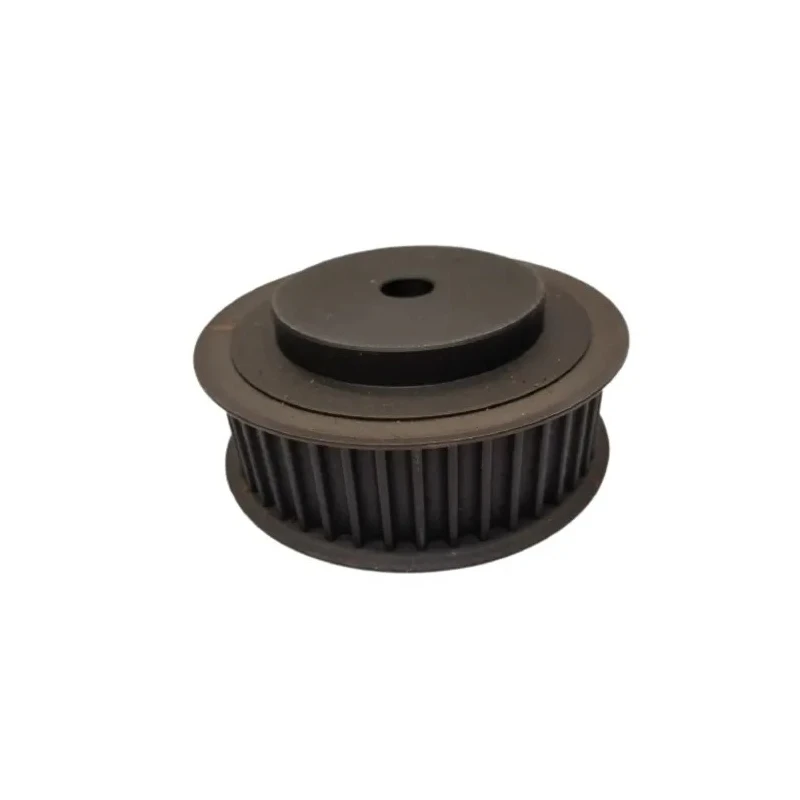

OPTIBELT Timing Belt Pulley Steel 20 mm 8 mm Pitch 22 Tooth 228M20

Free Delivery in India | Lowest Global Shipping Charges

OPTIBELT Timing Belt Pulley Steel 20 mm 8 mm Pitch 22 Tooth 228M20

Name: OPTIBELT Timing Belt Pulley Steel 20 mm 8 mm Pitch 22 Tooth 228M20
Brand: OPTIBELT
SKU: 174656
Price: 32.5 USD
Availability: InStock



Category Mechanical Power Transmission Brand OPTIBELT Condition New

Specifications

Country of Origin	India
Brand	OPTIBELT
Material	Steel
Model	228M20
Outside diameter	54.65mm
Number of Teeth	22
Bore Diameter	30mm
Flange Diameter	60mm
Pitch	8mm
Standards/Approvals	RoHS
Pitch Circle Diameter	56.02mm
Acceptable Belt Width	20mm

Key Features

The pulley has a pitch circle diameter of 56.02 mm.
The flange diameter measures 60 mm to support belt alignment.
It accepts belts with a width of 20 mm.
The bore diameter is 30 mm, providing a finished bore hole.
The pulley is flanged and conforms to RoHS standards.
Designed for use with HTD belts in various mechanical power transmission applications.
Manufactured from high strength steel ensuring longevity and reliability.
Outside diameter of the pulley is 54.65 mm for precise fitment.

Product Description

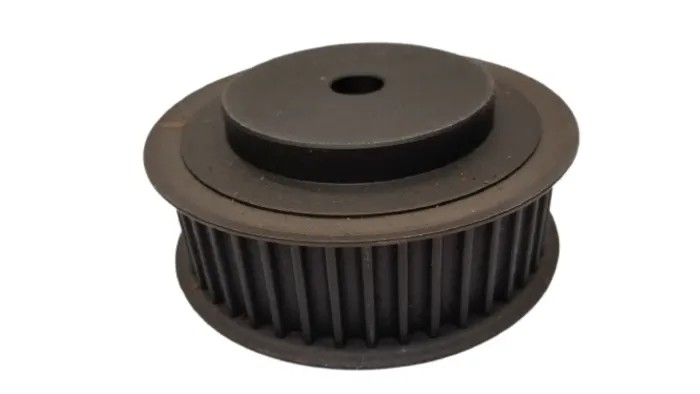

OPTIBELT 228M20 Timing Belt Pulley is a durable steel pulley designed for mechanical power transmission systems requiring precise timing and high reliability. This pulley features 22 teeth with an 8 mm pitch suitable for HTD belts, ensuring proper engagement and smooth operation.

The pulley has a pitch circle diameter of 56.02 mm and a flange diameter of 60 mm, providing excellent belt support and alignment during rotation. The bore diameter is finished to 30 mm to fit shafts accurately without additional machining.

Manufactured from high strength steel and flanged for enhanced belt retention, this pulley is compliant with RoHS standards, making it suitable for industrial and manufacturing equipment requiring certified materials.

It accepts belts with a width of 20 mm, fitting a variety of timing belt sizes commonly used in automation, conveyor systems, and machine tools. The outside diameter measures 54.65 mm, contributing to its compact design and compatibility with various machinery setups.

The pulley is constructed using high-quality steel material ensuring robustness. It contains 22 teeth enabling precise transmission ratios. Flanged design supports and retains the belt during operation. Finished bore hole of 30 mm diameter offers precise shaft fitting.

Complies with RoHS standards signifying environmental compliance. Compatible with HTD belts, widely used in industrial power transmission. Supports belt width up to 20 mm for versatile applications. Pitch circle diameter and flange dimensions are optimized for durability and performance.

This OPTIBELT timing belt pulley is ideal for use in industrial, manufacturing, and mechanical power transmission applications where precision and material strength are critical. It is suitable for use in automated machinery, conveyors, fluid power systems, and HVAC equipment.
