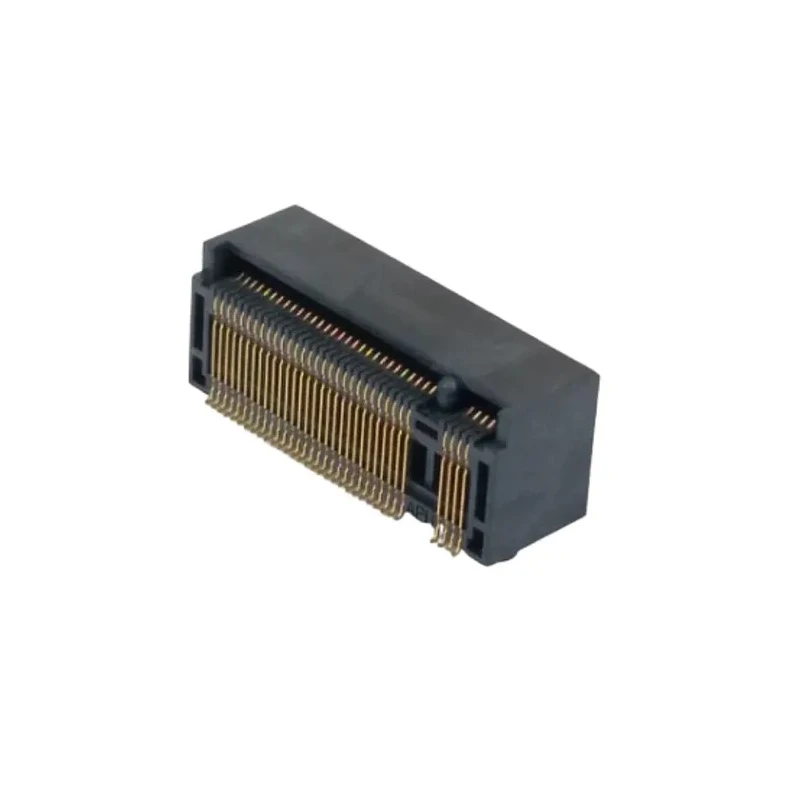

Amphenol Communications Solutions M.2 Gen 5 Series Right Angle Edge Connector Female, Board Mount, 67 Contacts MDT420M01501
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V |
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 750mA |
| Model | MDT420M01501 |
| Mount Type | Board |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | M.2 Gen 5 |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -40°C |
| Pitch | 0.5mm |
| Standards/Approvals | RoHS, UL |
| Contact Plating | Gold |
| Number of Contacts | 67 |
| Contact Gender | Female |
| Connector Gender | Female |
| Card Type | PCIe |
Key Features
- This edge connector offers a right angle orientation for versatile PCB mounting.
- It supports a current rating of 750mA and voltage up to 500V for reliable electrical performance.
- The contacts are gold plated and made of copper alloy to ensure durability and conductivity.
- Designed to operate within a temperature range of -40°C to 80°C, suitable for various industrial environments.
- It has keying options to prevent incorrect mating and is compliant with RoHS and UL standards.
- The housing is constructed from thermoplastic material for insulation and protection.
- Compatible with PCIe M.2 Gen 5 series devices and supports both single and double-sided modules.
Product Description
Amphenol Communications Solutions MDT420M01501 M.2 Gen 5 Series Right Angle Edge Connector is a highly reliable female edge connector designed for board mounting applications requiring a compact and efficient interface. Featuring 67 contacts arranged at a 0.5 mm pitch, this connector meets the PCI-SIG PCIe M.2 Gen 5 specification, ensuring high-speed data transmission with minimized board area usage.
Its right angle orientation facilitates flexible PCB layouts and mechanical designs, making it suitable for advanced computing and communication modules including PCIe cards. The connector supports a current rating of 750mA and withstands voltages up to 500V, providing stable electrical performance across various industrial settings.
Manufactured with copper alloy contacts plated in gold, it ensures superior conductivity and resistance to corrosion. The thermoplastic housing enhances durability and protection of internal contacts. With a broad operating temperature range from -40°C to 80°C, the connector can be deployed in harsh environmental conditions.
Its keyed design prevents mismating, enhancing system reliability. Fully compliant with RoHS and UL standards, this connector promotes environmental safety and quality assurance.
Ideal for use in electronic components manufacturing, telecommunications, data centers, and computing industries, this M.2 Gen 5 connector supports both single and double-sided modules, offering design flexibility with several connector height options to meet different assembly requirements.
This edge connector provides 67 contacts on a 0.5 mm pitch. It is designed with right angle orientation for board mounting. Contact plating is gold for enhanced durability and conductivity. The product operates between -40°C and 80°C.
Rated for 750mA current and 500V voltage. The thermoplastic housing offers insulation and robustness. Compliant with PCIe M.2 Gen 5 standards, RoHS, and UL certifications. Discover advanced Edge Connector solutions like the MDT420M01501 by exploring the Electronics Components category at EnvMart for premium-quality connectivity products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this edge connector is 500V.
This model supports a current rating of 750mA.
It operates within a temperature range of -40°C to 80°C.
The connector features 67 contacts arranged at a 0.5 mm pitch.
The contacts are made of copper alloy and are gold plated, while the housing is constructed from thermoplastic material.
This connector is designed for board mounting applications.
Yes, it is compliant with RoHS and UL standards.
This connector has a right angle orientation for versatile PCB mounting.
It supports PCIe M.2 Gen 5 series devices, accommodating both single and double-sided modules.
The keyed design prevents incorrect mating, enhancing the reliability of the connection.
The country of origin for this product is China.
The pitch of the contacts is 0.5 mm.
