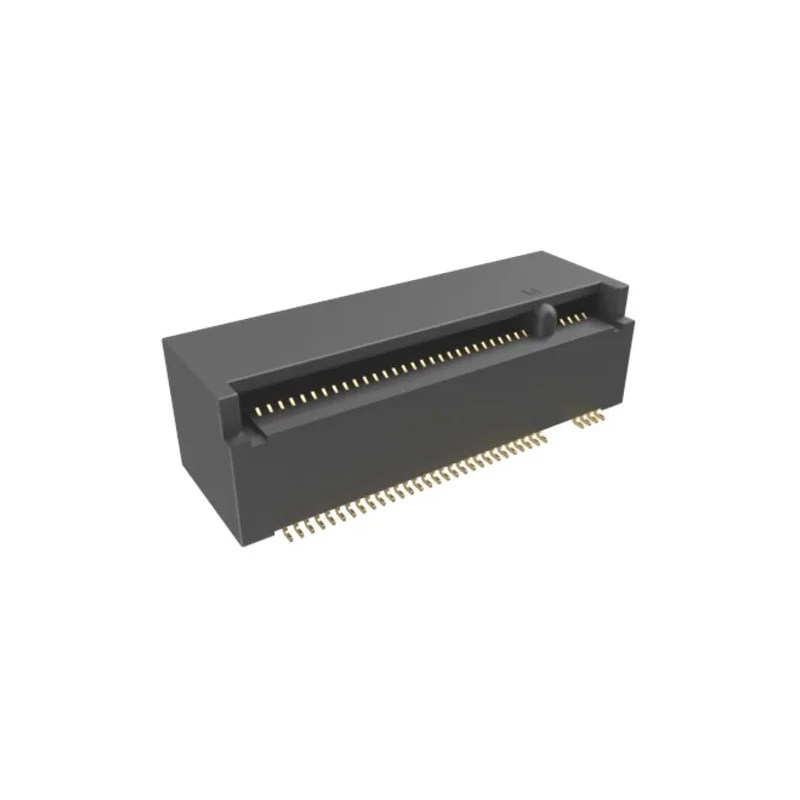

Amphenol Communications Solutions M.2 Gen 5 Series Right Angle Edge Connector Female, Board Mount, 67-Contacts MDT670M01501

Amphenol Communications Solutions MDT670M01501 is a high-performance M.2 Gen 5 series right angle edge connector designed for board mounting, featuring 67 contacts at a fine 0.5 mm pitch. This edge connector supports PCIe card type applications, providing superior electrical contact with gold-plated copper alloy pins for optimal conductivity and corrosion resistance.

The connector's thermoplastic housing ensures durability under industrial conditions, accommodating operating temperatures from -40°C to 80°C. It is rated for 750mA current and 500V voltage, making it suitable for demanding electronic component installations.

Designed to occupy minimal board space while providing multiple height options, this component offers design flexibility for compact electronics. It supports both single and double-sided modules with secure keying features that prevent incorrect mating.

Certified with UL and RoHS standards, the connector meets rigorous quality and environmental compliance requirements. This edge connector is ideal for industrial, telecommunications, computing, and electronic manufacturing use cases requiring dependable, space-efficient connections.

The connector is designed with a right angle orientation suitable for compact board layouts. It provides 67 gold-plated copper alloy contacts ensuring reliable electrical performance. Rated for a current of 750mA and voltage up to 500V.

Constructed with thermoplastic housing, supporting operating temperatures ranging from -40°C to 80°C. Compliant with PCI-SIG PCIe M.2 Gen 5 standards and suitable for PCIe card type applications. Includes keying features for proper mating and assembly.

Manufactured in China with UL and RoHS certifications to ensure quality and safety. Explore the full range of Edge Connectors and electronic components available on EnvMart to meet your technical and industrial needs.
