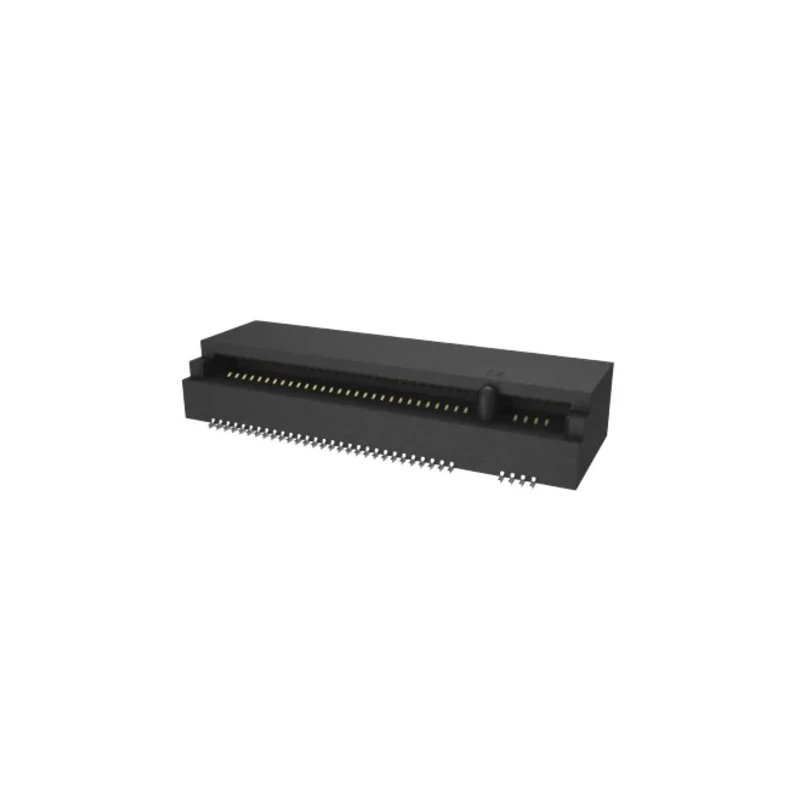

Amphenol Communications Solutions M.2 Gen 5 Series Right Angle Edge Connector Female, Board Mount, 67 Contacts MDT850M01501

Amphenol Communications Solutions MDT850M01501 is a high-performance M.2 Gen 5 Series right angle edge connector with female contacts, specifically designed for board mounting in PCIe applications. This connector provides 67 contacts on a 0.5 mm pitch, offering compact design to occupy less board space while enabling higher data rates compared to traditional PCIe Mini Card connectors.

The right angle orientation allows for flexible PCB designs, supporting both single-sided and double-sided modules. The gold-plated copper alloy contacts ensure superior electrical conductivity and durability under demanding operating environments. Its thermoplastic housing provides robust insulation and mechanical stability.

With a current rating of 750mA and voltage rating of 500V, the connector supports various high-speed data and power applications in industrial, electronic manufacturing, communications equipment, and computing industries. It operates reliably across a temperature range of -40°C to 80°C, making it suitable for diverse environmental conditions.

The connector is fully compliant with PCI-SIG PCIe M.2 specifications, featuring keying options for secure and error-free mating. The series supports different connector height options, providing design flexibility to meet specific board layout requirements.

This edge connector features a right angle orientation suitable for board mounting. It has 67 gold-plated copper alloy contacts ensuring reliable connectivity. Supports current up to 750mA and voltage rating of 500V. Operating temperature ranges from -40°C to 80°C for industrial stability.

Fully compliant with PCI-SIG PCIe M.2 specifications to support high data rates. Thermoplastic housing material offers durable insulation and protection. The connector includes keying way for correct mating and modularity options.

Designed to accommodate both single and double-sided modules for flexibility. Manufactured in China ensuring consistent quality standards.

Ideal for use in electronic components, power and communications equipment, this Edge Connector fits well within demanding industrial and commercial applications requiring reliable PCIe connectivity. Explore more options and related connector products at EnvMart.
