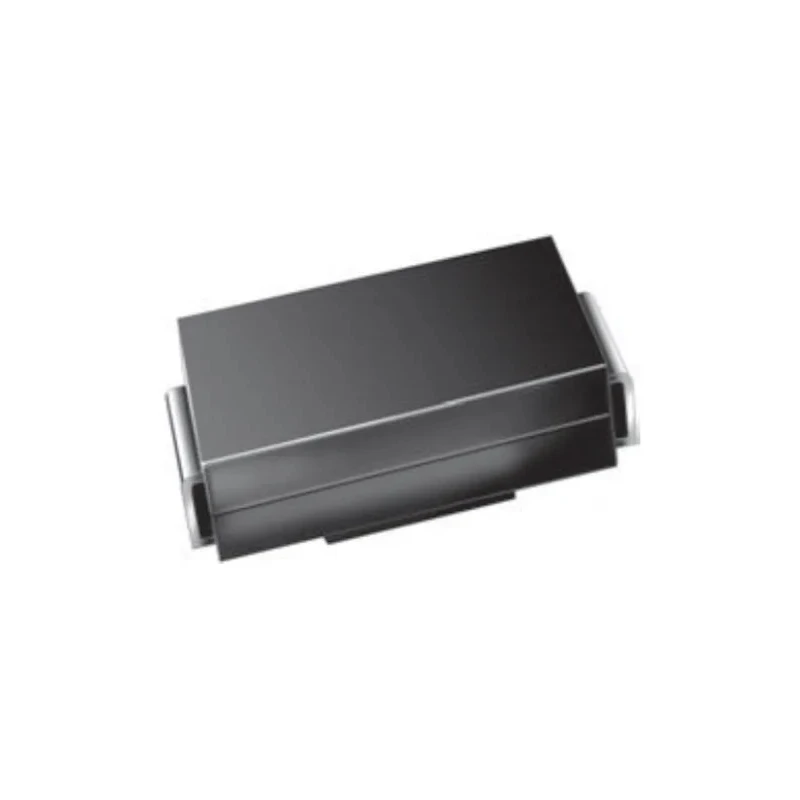

Vishay Bi-Directional TVS Diode, 400 W, Surface Mount, DO-214AC Package SMAJ9.0CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 2.79mm |
| Length | 4.5mm |
| Model | SMAJ9.0CAHM3_A/H |
| Width | 2.29mm |
| Mount Type | Surface |
| Series | SMAJ |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AC (SMA) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 15.4V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 10V |
| Maximum Reverse Stand-off Voltage Vwm | 9V |
| Peak Pulse Power Dissipation Pppm | 400W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 26A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- The diode is bi-directional providing effective protection against voltage spikes.
- It operates with a minimum breakdown voltage of 10 V and a maximum reverse stand-off voltage of 9 V.
- The package features a low profile with dimensions 4.5 mm length, 2.79 mm height, and 2.29 mm width.
- It supports peak pulse power dissipation up to 400 W and peak pulse current of 26 A.
- The diode has fast response time and excellent clamping voltage at 15.4 V.
- Its operating temperature ranges from -65°C to a maximum of 150°C ensuring reliability in harsh environments.
- Surface mount type is suitable for automated PCB assembly techniques.
- The component is RoHS compliant and AEC-Q101 qualified for automotive applications.
Product Description
Vishay SMAJ9.0CAHM3_A/H is a bi-directional transient voltage suppression diode designed for sensitive electronic applications requiring protection from voltage spikes induced by inductive load switching or lightning.
This TVS diode comes in a compact, low profile DO-214AC (SMA) surface mount package measuring 4.5 mm in length, 2.79 mm in height, and 2.29 mm in width, making it ideal for space-constrained PCB layouts.
It offers a peak pulse power dissipation of 400 watts with a 10/1000 μs waveform, enabling it to handle transient surges effectively while maintaining fast response times and low incremental surge resistance.
The device has a minimum breakdown voltage (Vbr) of 10 volts and a maximum reverse stand-off voltage (Vwm) of 9 volts, with a clamping voltage (Vc) of 15.4 volts to limit voltage spikes and protect downstream components.
Operating temperature range from -65°C to 150°C ensures this diode performs reliably in industrial, automotive, telecommunications, and consumer electronics applications requiring robust ESD protection.
Certified to meet RoHS standards and qualified to AEC-Q101 automotive requirements, this TVS Diode is suitable for demanding environments including automotive and industrial electronics.
Bi-directional transient voltage suppression. Surface mount DO-214AC package. 400 W peak pulse power capability. Fast response time and low surge resistance. Wide operating temperature from -65°C to 150°C. RoHS compliant and AEC-Q101 certified.
Low leakage current of 1 μA maximum.
This diode is ideal for protecting ICs, MOSFETs, sensors, and signal lines in construction, manufacturing, automotive systems, telecommunications, and consumer electronics industries.
Explore more Vishay semiconductor protection components and related electronic parts in our electronics section at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a peak pulse power dissipation of 400 W, enabling it to effectively handle transient surges.
The diode comes in a DO-214AC package with dimensions of 4.5 mm in length, 2.79 mm in height, and 2.29 mm in width.
It operates within a temperature range from -65°C to a maximum of 150°C, ensuring reliability in various environments.
The clamping voltage (Vc) for this diode is 15.4 V, which helps limit voltage spikes and protect downstream components.
The minimum breakdown voltage (Vbr) of this diode is 10 V, providing effective protection against voltage spikes.
The maximum reverse stand-off voltage (Vwm) is 9 V, which defines the maximum voltage the diode can withstand without conducting.
This model can handle a maximum peak pulse current of 26 A, making it suitable for high transient conditions.
Yes, the diode is RoHS compliant, ensuring it meets environmental standards for hazardous substances.
It is qualified to the AEC-Q101 automotive standard, making it suitable for automotive applications.
This unit features a surface mount type, which is suitable for automated PCB assembly techniques.
The maximum reverse leakage current for this diode is 1 μA, which is low and helps in maintaining efficiency.
It is ideal for protecting ICs, MOSFETs, sensors, and signal lines in automotive, telecommunications, and consumer electronics applications.
