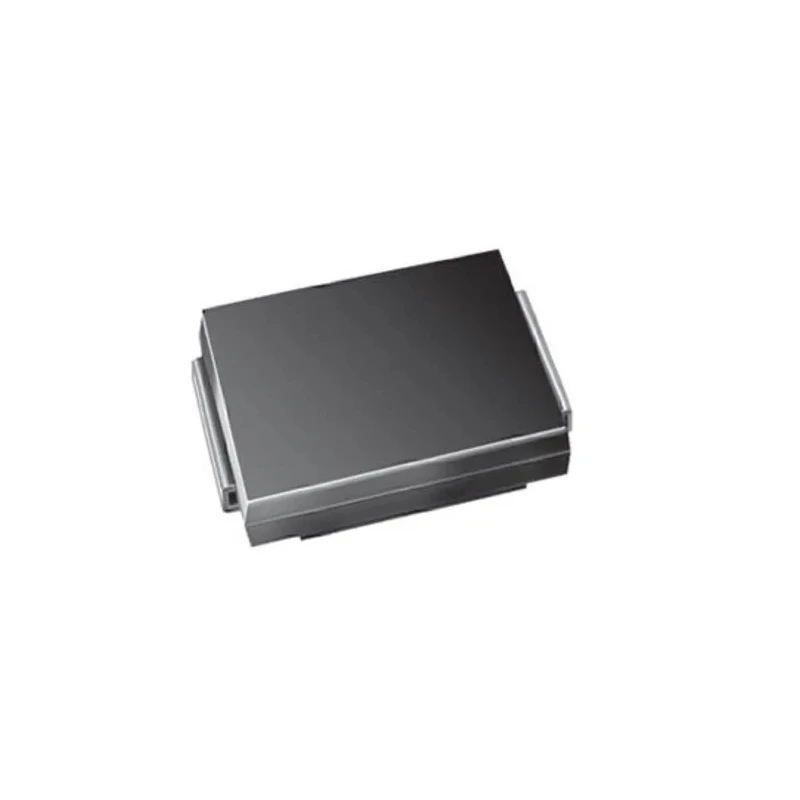

Vishay Bi-Directional TVS Diode 1500 W Surface Mount DO-214AB Package 1.5SMC120CAHM3_A/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 6.22mm |
| Length | 7.11mm |
| Model | 1.5SMC120CAHM3_A/H |
| Width | 2.62mm |
| Mount Type | Surface |
| Series | 1.5SMC |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AB (SMC) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Clamping Voltage VC | 165V |
| Automotive Standard | AEC-Q101 |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 114V |
| Maximum Reverse Stand-off Voltage Vwm | 102V |
| Peak Pulse Power Dissipation Pppm | 1500W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 9.1A |
Key Features
- Provides protection against voltage transients with bi-directional configuration.
- Designed with glass passivated chip junction for enhanced reliability.
- Suited for consumer, computer, industrial, automotive, and telecommunication applications.
- Offers low profile suitable for automated placement on PCBs.
- Meets RoHS compliance and AEC-Q101 automotive standard.
- Features very fast response time and low incremental surge resistance.
- Operating temperature range from -65°C to 150°C ensures durability in harsh environments.
- 10/1000 μs waveform with 0.01% duty cycle capability.
Product Description
Vishay 1.5SMC120CAHM3_A/H Bi-Directional TVS Diode offers robust transient voltage suppression with a peak pulse power rating of 1500 W, packaged in a surface mount DO-214AB (SMC) design. This diode is engineered to protect sensitive electronic devices against voltage surges caused by inductive load switching, lightning, and other transient events.
The device's low-profile package facilitates automated assembly processes, making it highly suitable for consumer electronics, computers, industrial equipment, automotive electronics, and telecommunication systems. Its glass passivated chip junction ensures longevity and stable electrical characteristics over its operational life.
Key operational specifications include a minimum breakdown voltage of 114 V and a maximum reverse stand-off voltage of 102 V. Clamping voltage is rated at 165 V, and the diode can handle a maximum peak pulse current of 9.1 A. With an operating temperature range from -65°C to 150°C, it performs reliably in demanding environmental conditions.
This TVS diode meets RoHS environmental directives and is qualified to the automotive standard AEC-Q101. It demonstrates excellent clamping capability, a very fast response time, and a low incremental surge resistance, making it ideal for protecting integrated circuits, MOSFETs, signal lines, and sensor units.
Provides protection against voltage transients with bi-directional configuration. Designed with glass passivated chip junction for enhanced reliability. Suited for consumer, computer, industrial, automotive, and telecommunication applications.
Offers low profile suitable for automated placement on PCBs. Meets RoHS compliance and AEC-Q101 automotive standard. Features very fast response time and low incremental surge resistance. Operating temperature range from -65°C to 150°C ensures durability in harsh environments.
10/1000 μs waveform with 0.01% duty cycle capability. Compact dimensions: 7.11 mm length, 6.22 mm height, and 2.62 mm width.
For applications requiring reliable transient voltage suppression in demanding industrial, automotive, and electronic manufacturing environments, the Vishay 1.5SMC120CAHM3_A/H offers a proven solution. Explore more TVS Diodes and related semiconductor components in our Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay 1.5SMC120CAHM3_A/H has a peak pulse power rating of 1500 W.
This diode operates within a temperature range of -65°C to 150°C.
The clamping voltage for this model is rated at 165 V.
The maximum reverse stand-off voltage is 102 V.
The minimum breakdown voltage is 114 V.
The dimensions are 7.11 mm in length, 6.22 mm in height, and 2.62 mm in width.
It can handle a maximum peak pulse current of 9.1 A.
Yes, it meets the AEC-Q101 automotive standard, making it suitable for automotive applications.
This model supports surface mounting in a DO-214AB (SMC) package.
It meets RoHS compliance and the AEC-Q101 automotive standard.
This diode is suited for consumer electronics, computers, industrial equipment, automotive electronics, and telecommunication systems.
It features a very fast response time, suitable for protecting sensitive electronic devices against voltage surges.
