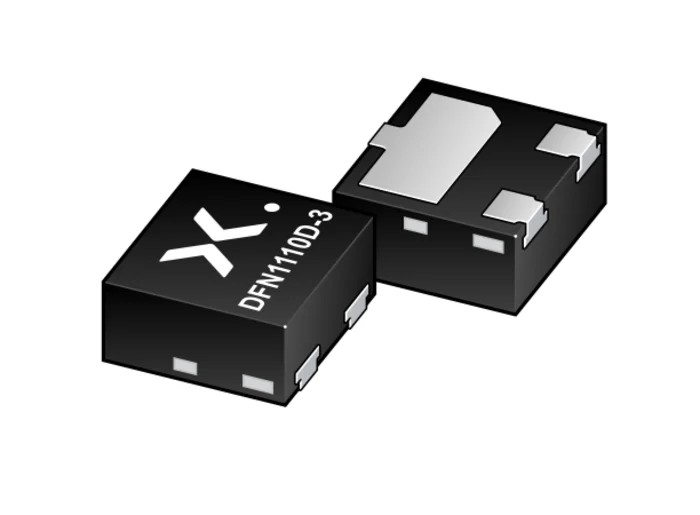

Nexperia Resistor-Equipped PNP Transistor, 100 mA, 50 V, 3-Pin DFN1110D-3 PDTA143XQB-QZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA143XQB-QZ |
| Mount Type | Surface |
| Series | PDTA143X |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |
Key Features
- Ultra small DFN1110D-3 plastic package with side-wettable flanks.
- Built-in resistors simplify circuit design and reduce component count.
- Low package height of 0.5 mm suitable for automatic optical inspection.
- Capable of switching loads and controlling IC inputs efficiently.
- Automotive grade compliant with AEC-Q101 standards.
- Operation guaranteed between -55°C and 150°C.
- 3 pins with PNP transistor polarity and configuration.
- Cost-effective alternative in digital transistor applications.
Product Description
The Nexperia PDTA143XQB-QZ is a resistor-equipped PNP transistor encapsulated in an ultra small DFN1110D-3 package with side-wettable flanks, optimized for space-saving surface mount technology (SMT) applications. It supports a maximum collector current of 100 mA and a maximum collector-emitter voltage of 50 V, making it suitable for a variety of electronic switching and control functions.
Featuring built-in resistors, this transistor simplifies circuit design by reducing the number of external components and overall assembly complexity. The low profile package height of 0.5 mm makes it ideal for modern compact electronic devices and ensures compatibility with automatic optical inspection (AOI) processes for high-volume production.
This device is rated to operate in a temperature range from -55°C up to 150°C, supporting reliable performance across industrial and automotive environments. Its PNP configuration is optimized for switching loads and controlling IC inputs in digital circuits, offering a cost-saving alternative to conventional BC857 series transistors.
Equipped with RoHS compliance and meeting the automotive-grade AEC-Q101 standard, the PDTA143XQB-QZ transistor is well suited for stringent quality and environmental requirements in automotive and industrial applications.
Ultra-compact surface mount package with side-wettable flanks. Built-in resistors reduce component count and pick-and-place costs. Automotive standard AEC-Q101 certification ensures high reliability. Wide operating temperature range from -55°C to +150°C.
Ideal for digital circuit applications including load switching and IC input control. Low height of 0.5 mm supports compact PCBs. RoHS compliant for environmental responsibility. 3-Pin configuration with PNP polarity.
This transistor is widely used in industrial, automotive, and digital electronics, providing an efficient and cost-effective solution for controlling currents up to 100 mA and voltages up to 50 V. Browse the Nexperia Bipolar Transistors category on EnvMart for complete options and compatible components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum collector current for the Nexperia PDTA143XQB-QZ is 100 mA.
This model has a maximum collector-emitter voltage rating of 50 V.
The operating temperature range is from -55°C to 150°C.
It is encapsulated in a DFN1110D-3 package, which is ultra-small and suitable for surface mount technology (SMT).
Yes, it is compliant with the AEC-Q101 automotive standard, ensuring high reliability for automotive applications.
The PDTA143XQB-QZ has a 3-pin configuration with PNP polarity.
The built-in resistors simplify circuit design by reducing the number of external components required.
Yes, the PDTA143XQB-QZ is RoHS compliant, meeting environmental responsibility standards.
It is suitable for digital circuit applications, including load switching and controlling IC inputs.
The package height is 0.5 mm, making it suitable for compact PCB designs.
The maximum emitter-base voltage (VEBO) is -10 V.
The country of origin for this transistor is India.
