| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | PDTA123JQC-QZ |
| Mount Type | Surface |
| Series | PDTA123J |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1412D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -50V |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -10V |
| Automotive Standard | AEC-Q101 |
| Maximum DC Collector Current Idc | -100mA |
| Transistor Configuration | PNP |

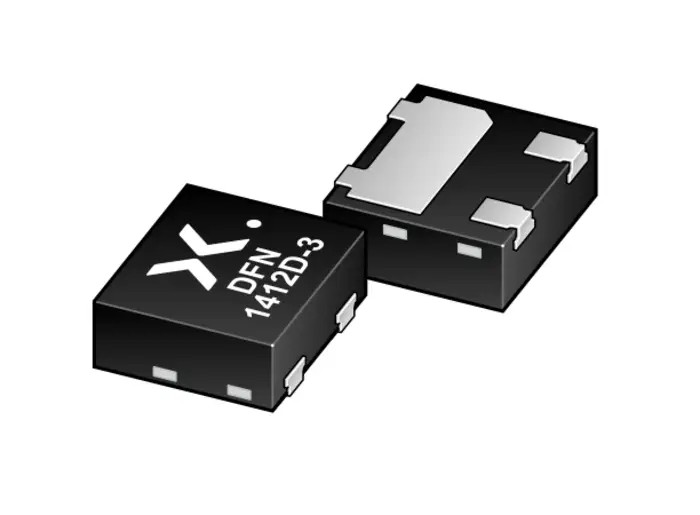

The Nexperia PDTA123JQC-QZ is a resistor-equipped PNP transistor offered in an ultra-compact DFN1412D-3 (SOT8009) plastic surface mount package. This 3-pin leadless device integrates built-in resistors which simplify circuit designs and reduce the number of external components, effectively lowering PCB size and costs. With a maximum DC collector current of 100 mA and a collector-emitter voltage rating of 50 V, this transistor is well-suited for digital and switching applications within automotive, industrial, and consumer electronics sectors.
Its plastic package features side-wettable flanks that enable precise and reliable automatic optical inspection (AOI) of solder joints, enhancing manufacturing quality control. The device operates over a wide temperature range from -55°C to 150°C, ensuring robust performance in harsh environments. The PDTA123JQC-QZ is RoHS compliant and qualified to AEC-Q101 automotive standards, underscoring high reliability for automotive and industrial use cases.
Common use cases include controlling IC inputs, switching low voltage loads, and serving as a cost-saving replacement for the BC857 transistor series in digital circuits. The transistor’s low package height of 0.5 mm aids in minimizing profile for compact PCB layouts, vital in modern electronic designs.
The transistor supports up to 100 mA collector current. Maximum collector-emitter voltage is 50 V. Built-in resistors reduce external components. RoHS compliant and automotive AEC-Q101 qualified. Operation temperature -55°C to 150°C ensures application versatility.
Side-wettable flanks improve solder joint inspection. 3-pin leadless DFN1412D-3 package reduces PCB footprint. Ideal for digital and switching load applications. Cost-effective alternative to BC857 series transistors. Explore more Nexperia transistor solutions and electronic components on EnvMart for your industrial and commercial project needs.
