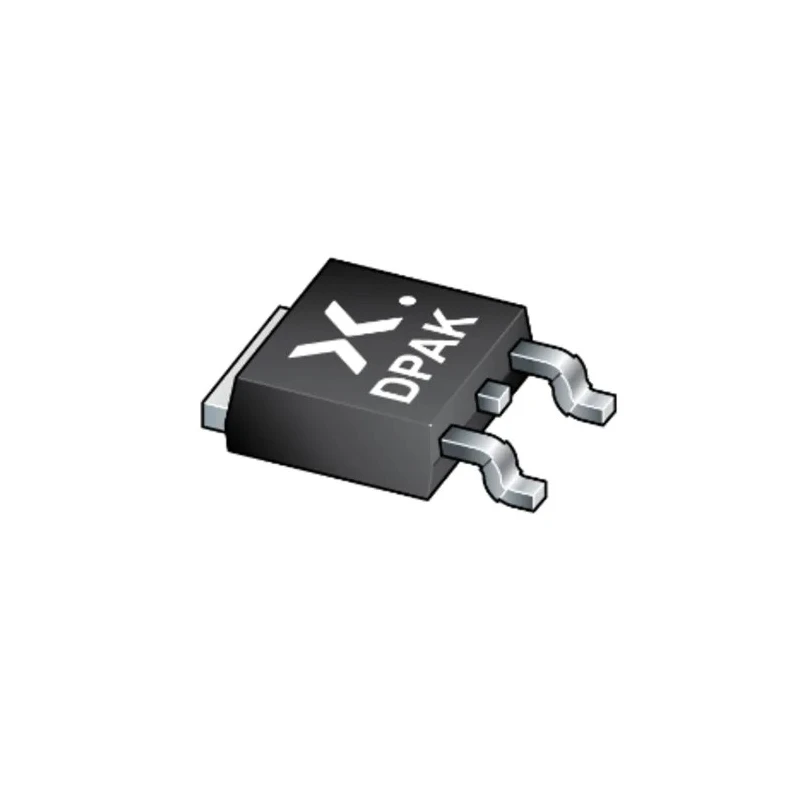

Nexperia Bipolar Transistor PNP 6 A, 100 V, 15 W, 3-Pin Surface Mount TO-252 MJD42CJ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | MJD42CJ |
| Mount Type | Surface |
| Series | MJD2873 |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -100V |
| Minimum DC Current Gain hFE | 15 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -6V |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 15W |
| Maximum DC Collector Current Idc | -6A |
Key Features
- Designed for surface mounting with TO-252 package type.
- Maximum DC collector current of 6 amperes for high current applications.
- Collector emitter voltage rating of 100 volts ensures operating safety.
- Transistor polarity is PNP suitable for various circuit designs.
- Minimum DC current gain (hFE) of 15 for efficient amplification.
- Operating temperature range from -55°C to 150°C ensures reliability.
- Maximum emitter base voltage of 6 volts.
- Automotive standard compliant with AEC-Q101 for enhanced quality.
Product Description
Nexperia MJD42CJ bipolar transistor is a high power PNP transistor housed in a TO-252 (DPAK) surface mount package. It supports a maximum DC collector current of 6 amperes and can withstand a collector emitter voltage of 100 volts, making it suitable for power switching and amplification in electronic circuits.
This transistor features a maximum power dissipation of 15 watts enabling operation in demanding conditions without overheating. The device achieves high energy efficiency due to reduced heat generation and offers fast switching speeds with low collector emitter saturation voltage.
The MJD42CJ series complies with automotive standard AEC-Q101, ensuring high reliability for automotive and industrial applications. It operates reliably across a wide temperature range from -55°C to 150°C, supporting various environmental conditions.
With a minimum DC current gain of 15 and a maximum emitter base voltage of 6 volts, this transistor is ideal for discrete semiconductor applications requiring robust and efficient switching. The 3-pin configuration and TO-252 plastic package facilitate surface mounting on PCBs, simplifying manufacturing processes.
Designed for surface mounting with TO-252 package type. Maximum DC collector current of 6 amperes for high current applications. Collector emitter voltage rating of 100 volts ensures operating safety. Transistor polarity is PNP suitable for various circuit designs.
Minimum DC current gain (hFE) of 15 for efficient amplification. Operating temperature range from -55°C to 150°C ensures reliability. Maximum emitter base voltage of 6 volts. Automotive standard compliant with AEC-Q101 for enhanced quality.
Fast switching speeds and low saturation voltage provide efficient performance. Package includes 3 pins for easy electrical connection.
This bipolar transistor is widely used in automotive, industrial, power management, and electronic device manufacturing applications. The reliable surface mount package and robust electrical characteristics make it a critical component for power switching and amplification in compact electronic systems.
Explore the full range of Bipolar Transistors and related semiconductor components on EnvMart to meet your industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC collector current for the MJD42CJ is 6 amperes, making it suitable for high current applications.
This model has a collector-emitter voltage rating of 100 volts, ensuring safe operation in various applications.
The MJD42CJ can dissipate a maximum power of 15 watts, allowing it to operate effectively in demanding conditions.
It operates reliably within a temperature range of -55°C to 150°C, suitable for diverse environmental conditions.
This bipolar transistor is housed in a TO-252 (DPAK) surface mount package, facilitating easy integration into PCBs.
The minimum DC current gain (hFE) for the MJD42CJ is 15, which supports efficient amplification in circuits.
The maximum emitter-base voltage for this model is 6 volts, which is important for maintaining circuit integrity.
Yes, the MJD42CJ is compliant with the automotive standard AEC-Q101, ensuring high reliability for automotive applications.
This model features a 3-pin configuration, which simplifies electrical connections during installation.
The MJD42CJ is a PNP transistor, making it suitable for various circuit designs that require this polarity.
This bipolar transistor is widely used in automotive, industrial, power management, and electronic device manufacturing applications.
Key features include a maximum collector current of 6A, collector-emitter voltage of 100V, and compliance with AEC-Q101, among others.
