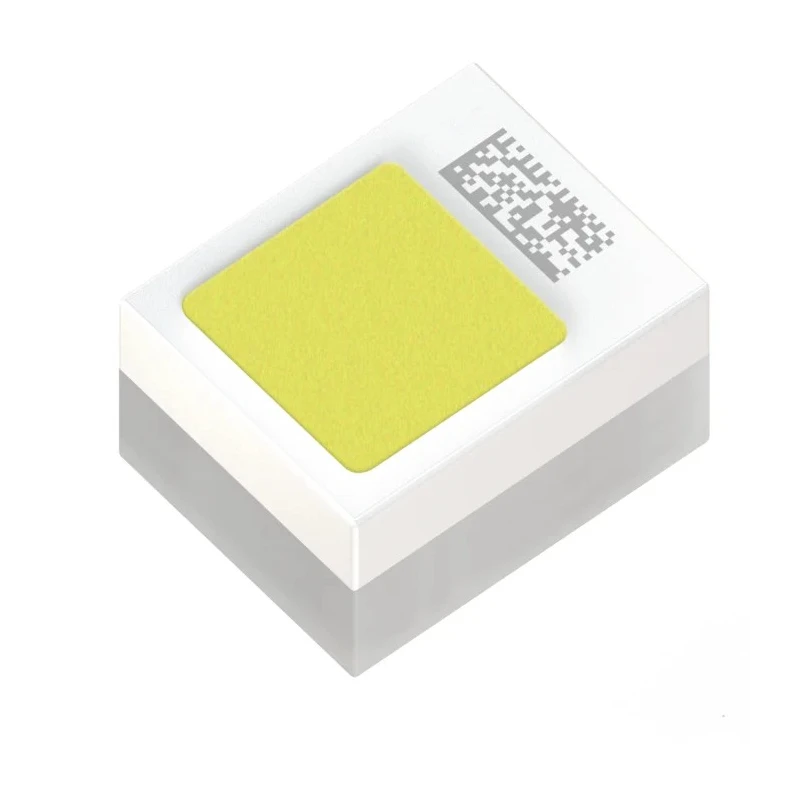

ams OSRAM 3.4 V White LED Ceramic Package Surface Mount KW CWLPM3.TK-5SS9-4L07M0-2686

Free Delivery in India | Lowest Global Shipping Charges

ams OSRAM 3.4 V White LED Ceramic Package Surface Mount KW CWLPM3.TK-5SS9-4L07M0-2686

Name: ams OSRAM 3.4 V White LED Ceramic Package Surface Mount KW CWLPM3.TK-5SS9-4L07M0-2686
Brand: ams OSRAM
SKU: 178032



Category LED - Light Emitting Diodes Brand ams OSRAM Condition New

Specifications

Country of Origin	Malaysia
Brand	ams OSRAM
Model	KW CWLPM3.TK-5SS9-4L07M0-2686
Packaging	Tape & Reel
Mount Type	Surface
Series	KW CWLPM3.TK
Number Of Leds	1
Maximum forward current	1500mA
Viewing angle	120 °
Package Type	Ceramic package
Standards/Approvals	RoHS
LED Colour	White
Forward Voltage	3.4V
Number of Pins	2
Lens Dimensions	1.15 x 1.15 mm
Lens Shape	Square
LED Luminous Flux	410 to 535 lm

Key Features

The LED features a maximum forward current of 1500 mA.
It has a forward voltage of 3.4 V and a viewing angle of 120 degrees.
The ceramic package provides excellent heat dissipation and mechanical stability.
Lens dimensions measure 1.15 x 1.15 mm with a square lens shape.
The LED luminous flux ranges from 410 to 535 lumens.
This LED complies with RoHS standards ensuring environmental safety.
Designed for applications including headlamps, LED, laser, and night vision systems.
It operates reliably within a temperature range of -40°C to 135°C.

Product Description

ams OSRAM KW CWLPM3.TK-5SS9-4L07M0-2686 is a compact white LED packaged in a ceramic surface mount designed to deliver high luminous efficacy with excellent thermal management. The ceramic package enhances heat dissipation, allowing stable operation at a maximum forward current of 1500 mA and a forward voltage of 3.4 V.

Its square lens with dimensions of 1.15 by 1.15 mm provides a wide viewing angle of 120 degrees, making it suitable for various illumination applications requiring uniform light distribution.

This LED produces a luminous flux ranging between 410 and 535 lumens, ensuring bright white illumination in demanding industrial and automotive contexts. The device meets RoHS environmental standards, ensuring it is free of hazardous substances and safe for use in compliant electronic assemblies.

Designed for robustness, it operates effectively in temperatures from -40°C to 135°C, suitable for harsh conditions seen in automotive headlamps, LED lighting, laser systems, and night vision applications.

The surface mount technology packaging simplifies automated assembly on PCBs, optimizing manufacturing efficiency for industrial, automotive, and electronic component uses. Maximum forward current: 1500 mA. Forward voltage: 3.4 V.

Viewing angle: 120 degrees. Lens dimensions: 1.15 x 1.15 mm. Luminous flux: 410 to 535 lumens. Lens shape: Square. Package Type: Ceramic package. Mount Type: Surface mount. Complies with RoHS standards.

ams OSRAM LEDs provide reliable, high-performance lighting solutions for industrial, automotive, laboratory, and commercial applications. Explore more from the LEDs category at EnvMart for compatible lighting components and accessories.
