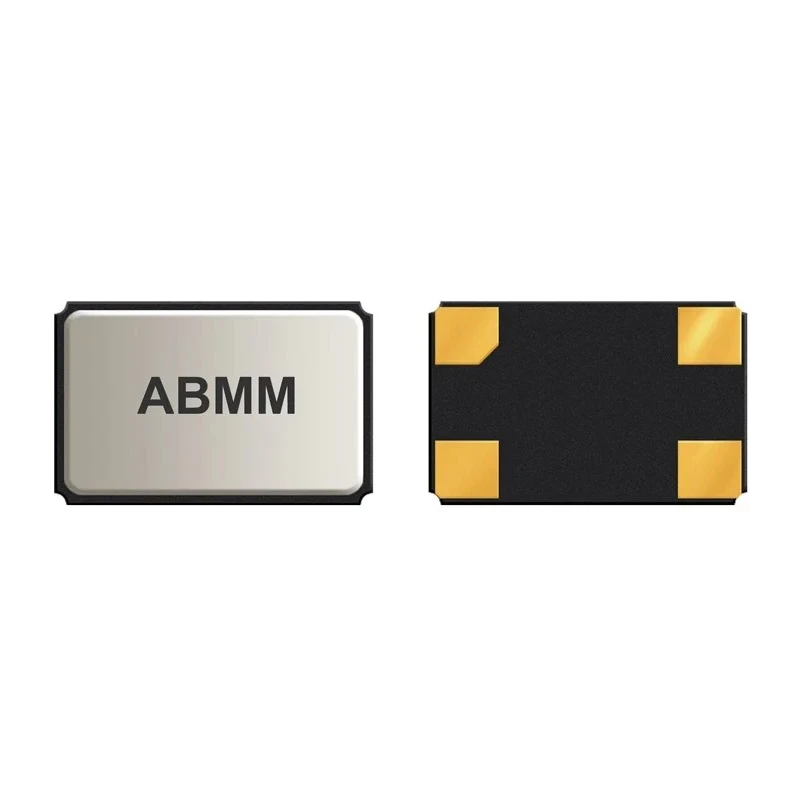

Abracon 16 MHz Surface Mount 4-Pin Crystal Unit ±50 ppm Frequency Tolerance ABMM-16.000MHZ-B2-T

Name: Abracon 16 MHz Surface Mount 4-Pin Crystal Unit ±50 ppm Frequency Tolerance ABMM-16.000MHZ-B2-T
Brand: Abracon
SKU: 177968



Category Crystal Units Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	1.3mm
Length	7mm
Model	ABMM-16.000MHZ-B2-T
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	ABMM
Maximum Operating Temperature	60°C
Package Type	Surface Mount
Minimum Operating Temperature	-10°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	16MHz
Load Capacitance	18pF
Series Resistance	50Ω

Key Features

Standard frequency of 16 MHz with ±50 ppm frequency tolerance.
Low equivalent series resistance of 50 ohms ensures signal integrity.
Compact surface mount package with 4 pins and dimensions 7 mm x 5 mm x 1.3 mm.
Operating temperature range from -10°C to 60°C for reliable performance.
Load capacitance of 18 pF optimized for microprocessor circuits.
Compliant with RoHS standards supporting environmentally safe manufacturing.
Available in tape and reel packaging for automated PCB assembly.
Designed for applications including computers, modems, communication devices, and test equipment.

Product Description

The Abracon ABMM-16.000MHZ-B2-T is a 16 MHz crystal unit designed for surface mount applications with a 4-pin configuration and compact size of 7 mm length, 5 mm width, and 1.3 mm height. It provides precise frequency control with a tolerance of ±50 ppm and frequency stability of ±50 ppm, suitable for high-performance timing requirements.

Featuring an equivalent series resistance (ESR) of 50 ohms, this crystal unit ensures minimal signal loss. Its load capacitance of 18 pF is ideal for microprocessor and communication circuits.

The device operates reliably over a temperature range from -10°C to 60°C, supporting various industrial and commercial electronics such as computers, modems, PCMCIA, and test equipment. The surface mount design enables easy integration onto printed circuit boards, and tape and reel packaging supports automated manufacturing processes.

This crystal unit complies with RoHS standards, ensuring it meets environmental safety regulations. The ABMM series by Abracon is known for stability and durability in demanding electronic applications.

Standard frequency of 16 MHz with ±50 ppm tolerance. Low ESR of 50 ohms for high signal quality. Compact surface mount 4-pin package. Operating temperature of -10°C to 60°C. 18 pF load capacitance for microprocessor compatibility.

RoHS compliant for environmental safety. Tape and reel packaging suitable for assembly lines. Suitable for industrial, laboratory, communication, and computing use.
