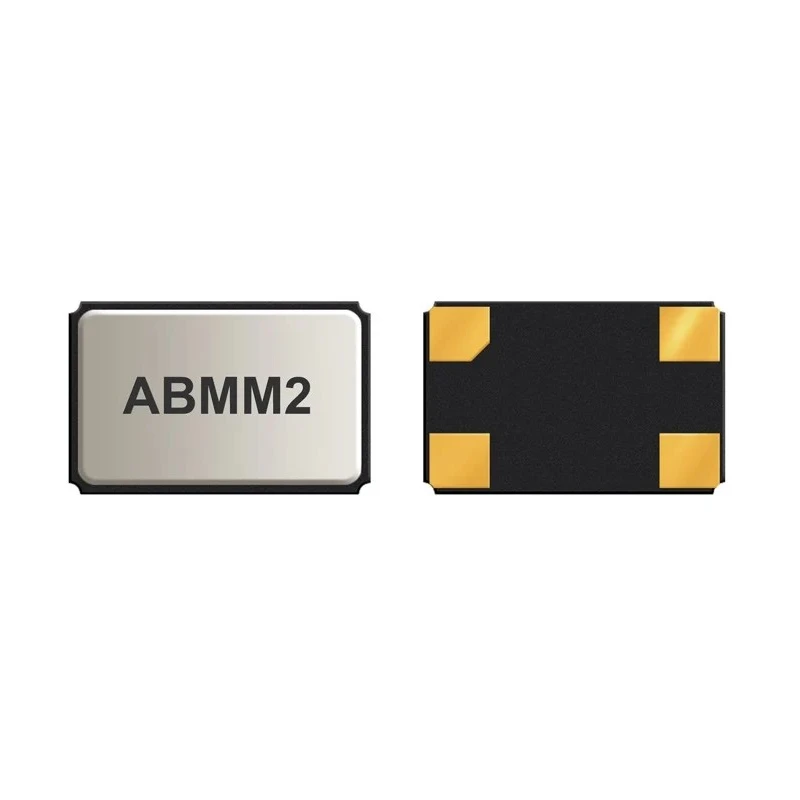

Abracon 24 MHz Crystal Unit Surface Mount 4-Pin 6 mm x 3.5 mm x 1.2 mm ±20 ppm Frequency Tolerance ABMM2-24.000MHZ-E2-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 1.2mm |
| Length | 6mm |
| Model | ABMM2-24.000MHZ-E2-T |
| Packaging | Tape & Reel |
| Width | 3.5mm |
| Mount Type | Surface |
| Series | ABmm² |
| Maximum Operating Temperature | 60°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -10°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Standard Frequency | 24MHz |
| Load Capacitance | 18pF |
| Series Resistance | 50Ω |
Key Features
- The crystal unit operates with a frequency of 24 MHz for reliable timing control.
- Surface mount type with a 4-pin configuration suitable for automated assembly.
- Compact dimensions of 6 mm length, 3.5 mm width, and low profile 1.2 mm height.
- Low series resistance of 50 ohms for efficient signal processing.
- Temperature operating range from -10°C to 60°C with RoHS compliant ceramic seal.
- Package supplied in tape and reel format compatible with high-volume manufacturing.
- Designed for use in computer, modem, microprocessor, communication and test equipment.
Product Description
Abracon ABMM2-24.000MHZ-E2-T is a precision 24 MHz crystal unit designed for surface mount applications requiring high frequency stability and reliability. This low profile crystal measures 6 mm in length, 3.5 mm in width, and a slim height of only 1.2 mm, making it ideal for compact electronic devices.
With a frequency tolerance and stability rated at ±20 ppm, it ensures consistent timing and signal clarity in sensitive circuits. The unit features a 4-pin surface mount package sealed within a ceramic case to provide durability and RoHS compliance for environmentally responsible manufacturing.
The equivalent series resistance (ESR) is 50 ohms, facilitating efficient electrical performance. This crystal is suitable for various industrial and commercial applications including computers, modems, microprocessors, communications, test equipment, and PCMCIA devices.
The operating temperature range from -10°C to 60°C allows reliable functionality in diverse environmental conditions. Supplied on tape and reel packaging, this product supports efficient automated PCB assembly lines and mass production workflows.
The crystal provides a steady 24 MHz frequency precision. Low profile surface mount design with 4 pins for flexible PCB layouts. ±20 ppm frequency tolerance ensures signal accuracy. Robust RoHS compliant ceramic hermetic sealing.
Series resistance optimized at 50 ohms for electrical efficiency. Operating temperature range from -10°C to 60°C. Packaged in tape and reel for streamlined manufacturing use. Ideal for use in computers, communication, and test equipment.
This Abracon crystal unit is engineered to meet the needs of modern electronics manufacturing facilities, offering precision frequency control in a compact and reliable form factor. Its surface mount footprint supports automated placement and soldering processes prevalent in high volume device assembly.
Explore other high-quality Crystal Units and electronic components in the Electronics Components category at EnvMart for your industrial or laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at a frequency of 24 MHz, providing reliable timing control for various applications.
The crystal unit measures 6 mm in length, 3.5 mm in width, and has a height of 1.2 mm, making it suitable for compact electronic devices.
It operates within a temperature range of -10°C to 60°C, allowing for functionality in diverse environmental conditions.
The series resistance is optimized at 50 ohms, which facilitates efficient electrical performance.
It is supplied in tape and reel format, which is compatible with high-volume automated assembly processes.
The frequency tolerance is rated at ±20 ppm, ensuring consistent timing and signal accuracy in sensitive circuits.
This model features a 4-pin configuration, suitable for surface mount applications.
Yes, it has a RoHS compliant ceramic seal, ensuring it meets environmental regulations.
It is designed for use in computers, modems, microprocessors, communication devices, and test equipment.
This unit utilizes a surface mount type, which is ideal for automated PCB assembly.
The load capacitance is specified at 18 pF, which is important for its operation in various circuits.
This model is part of the ABmm² series, which includes various precision crystal units.
