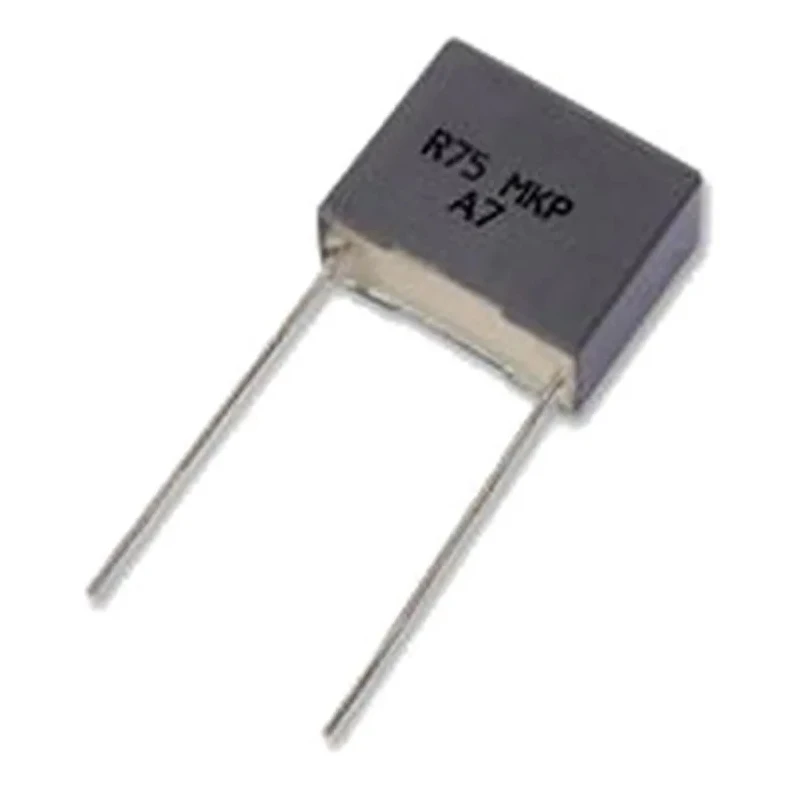

KEMET R75 Film Capacitor, ±5 % Tolerance, 470 nF Capacitance, 630 V DC, 250 V AC, Through Hole Mount R75PR34704040J

KEMET R75PR34704040J is a specialized film capacitor series designed for high frequency electronic applications requiring precise capacitance and high voltage endurance. This model features a capacitance of 470 nF with a tolerance of ±5 %, and operates safely up to 630 V DC and 250 V AC voltages.

Constructed using metallized polypropylene film, it incorporates radial leads made of tinned wire allowing through-hole PCB mounting. The capacitor exhibits self-healing properties, which extend service life and reliability under transient voltage conditions.

This capacitor is widely used in industrial applications like deflection circuits in televisions (S-correction), resonant capacitors in electronic ballasts and compact lamps, power factor correction circuits, and coupling capacitors in switched mode power supplies (SMPS). It is not recommended for across-the-line applications.

The encapsulation is done in a self-extinguishing material rated to UL94V-0, ensuring enhanced safety and compliance with modern industrial standards.

Key dimensions include a lead pitch of 27.5 mm, lead length of 30 mm, overall length of 32 mm, width of 9 mm, and height of 17 mm, making it suitable for a variety of PCB layouts. Pins have a diameter of 0.8 mm with a total of 2 pins.

Operating temperature range extends from -55°C to 105°C, allowing deployment in harsh environments. The product complies with Automotive Standard AEC-Q100 and adheres to RoHS and IEC 60286-2 standards, confirming environmental safety and performance.

Constructed with metallized polypropylene film and radial tin-plated leads for durability. Wide voltage capability from 160 V up to 2000 V DC with self-healing technology. Applications include TV deflection circuits, electronic ballasts, power factor correction, and SMPS coupling.

Encapsulated in a flame-retardant material meeting UL94V-0 requirements for electrical safety. Lead pitch of 27.5 mm fits standard through-hole mounting schemes. Operating temperature from -55°C to 105°C for versatile industrial use.

Pin diameter 0.8 mm with 2-pin configuration ensures reliable circuit connections.

This film capacitor is ideal for demanding industrial, electronic manufacturing, and laboratory applications requiring stable capacitance, environmental compliance, and safety certifications. Browse EnvMart's Electronics Components > Film Capacitor category for similar KEMET products and complementary components.
