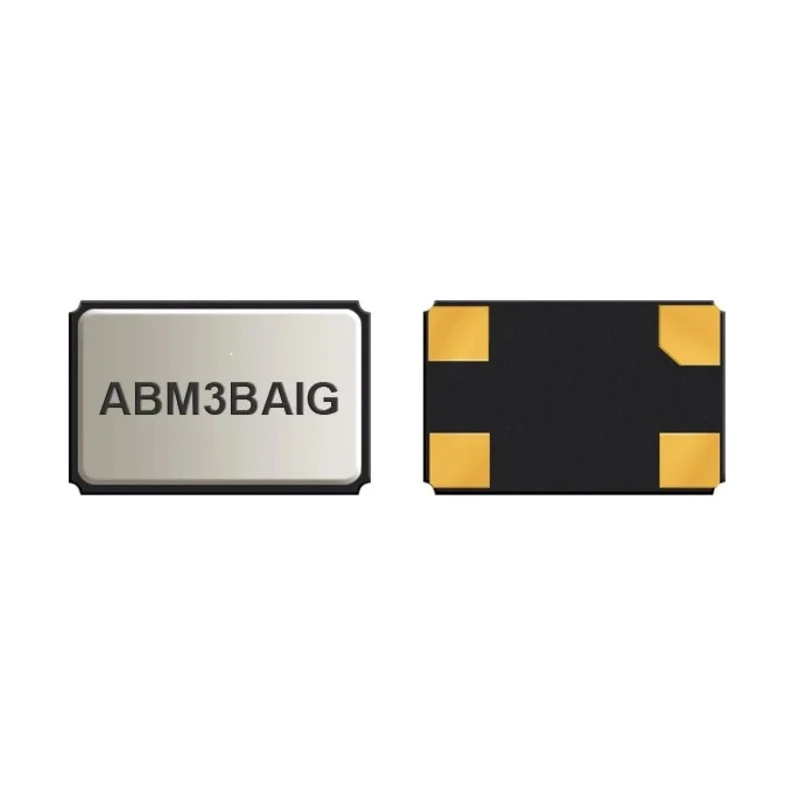

Abracon 8 MHz Crystal Unit ±50 ppm Surface Mount 4-Pin 0.9 mm Height x 5 mm Length x 3.2 mm Width ABM3BAIG-8.000MHZ-1Z-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 5mm |
| Model | ABM3BAIG-8.000MHZ-1Z-T |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3BAIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS II, ISO9001-2015, RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 8MHz |
| Load Capacitance | 18pF |
| Series Resistance | 150Ω |
| Automotive Grade 1 | -40°C to +125°C |
| Automotive Grade 0 | -40°C to +150°C (Available Upon Request) |
Key Features
- Standard frequency is 8 MHz, suitable for high precision timing applications.
- Surface mount package with 4 pins ensures reliable PCB integration.
- Load capacitance is 18 pF, optimized for typical circuit requirements.
- Operating temperature range from -40°C to +125°C, suitable for harsh environments.
- Automotive grade with AEC-Q200 qualification ensuring high reliability.
- Certified for RoHS II and ISO9001-2015 compliance, environmentally safe and quality assured.
- Hermetically seam-sealed ceramic package protects against environmental damage.
- Series resistance rating of 150 Ω enhances performance in various electronic circuits.
Product Description
Abracon ABM3BAIG-8.000MHZ-1Z-T is an 8 MHz crystal unit featuring a ±50 ppm frequency tolerance and designed for automotive and industrial electronic applications. This surface mount device comes with 4 pins and compact dimensions of 5 mm length, 3.2 mm width, and 0.9 mm height, making it ideal for space-constrained PCBs.
This crystal unit is qualified to AEC-Q200 automotive standards, supporting operation across a wide temperature range from -40°C to 125°C, with options available for higher temperature grades upon request. It is extensively used in systems such as infotainment, keyless entry/start-up, GPS, vehicle communication, advanced driver assistance systems (ADAS), industrial controls, and automation.
The device features a hermetically seam-sealed ceramic package to provide robust protection against environmental contaminants and vibrations. Compliance with RoHS II and ISO9001-2015 standards ensures adherence to environmental and quality requirements.
Technical highlights include a load capacitance of 18 pF and a series resistance of 150 Ω, enabling stable oscillation and frequency precision. It is produced on certified TS16949 production lines, with PPAP documentation available upon request, emphasizing its readiness for automotive manufacturing environments.
Standard frequency of 8 MHz for precise timing. Compact surface mount design with 4 pins. Wide operational temperature range suitable for automotive grade 1. Hermetically sealed ceramic package for durability. RoHS and ISO certified for compliance and safety.
AEC-Q200 qualification for reliability in automotive applications. Ideal for infotainment, ADAS, vehicle networking, and industrial automation.
Choose this Abracon crystal unit for high-reliability electronics in automotive, industrial, and communication system designs. Browse the Electronics Components category on EnvMart for more certified Crystal Units and oscillators.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 8 MHz, making it suitable for high precision timing applications.
The load capacitance of this model is 18 pF, optimized for typical circuit requirements.
It operates within a temperature range of -40°C to +125°C, suitable for harsh environments.
The dimensions of this unit are 5 mm in length, 3.2 mm in width, and 0.9 mm in height.
This crystal unit features 4 pins for surface mount integration.
It is qualified to the AEC-Q200 automotive standard, ensuring high reliability for automotive applications.
It is certified for RoHS II and ISO9001-2015 compliance, ensuring adherence to environmental and quality standards.
The series resistance rating is 150 Ω, which enhances performance in various electronic circuits.
This model comes in a hermetically seam-sealed ceramic package, providing protection against environmental damage.
It is extensively used in automotive systems such as infotainment, keyless entry, GPS, and advanced driver assistance systems (ADAS).
The country of origin for this crystal unit is India.
Yes, options for higher temperature grades up to -40°C to +150°C are available upon request.
