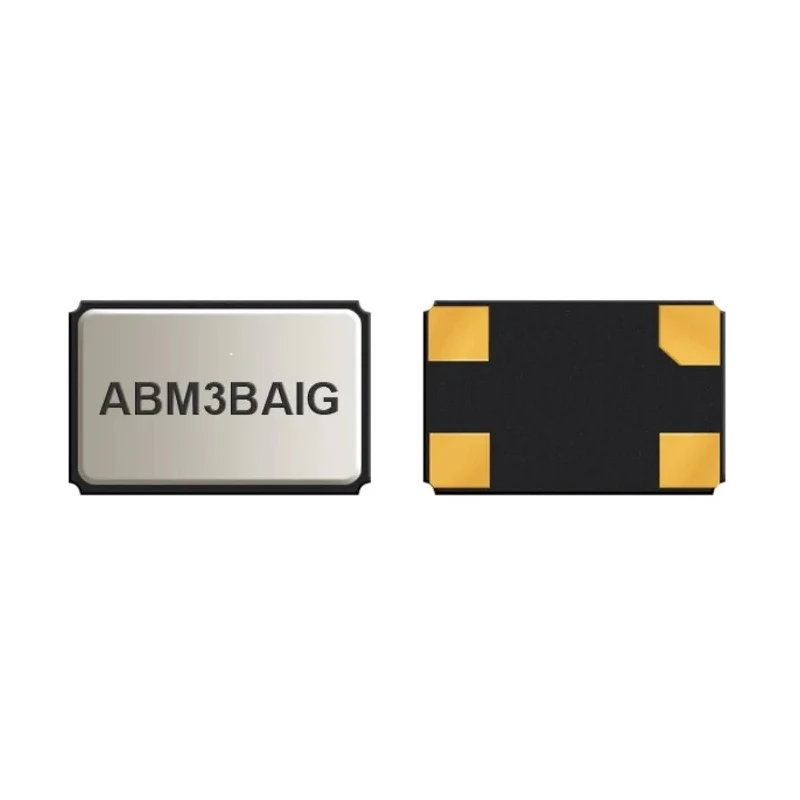

Abracon 8 MHz Crystal Unit Surface Mount 4-Pin 0.9 mm Height 5 mm Length 3.2 mm Width ±50 ppm ABM3BAIG-8.000MHZ-1Z-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.9mm |
| Length | 5mm |
| Model | ABM3BAIG-8.000MHZ-1Z-T |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | ABM3BAIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS II, ISO9001-2015, RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 8MHz |
| Load Capacitance | 18pF |
| Series Resistance | 150Ω |
| Automotive Grade 1 | -40°C to +125°C |
| Automotive Grade 0 | -40°C to +150°C (Available Upon Request) |
Key Features
- Standard frequency is 8 MHz with ±50 ppm frequency tolerance.
- Features a ceramic base and hermetically seam-sealed ceramic package for durability.
- Pin count includes 4 pins with package dimensions of 5 mm length, 3.2 mm width, and 0.9 mm height.
- Automotive grade, AEC-Q200 certified supporting operation from -40°C to +125°C.
- Ideal for automotive and industrial applications including infotainment systems and vehicle communication.
- Series resistance is 150 Ω ensuring stable oscillator performance.
- Compliant with RoHS II, ISO9001-2015 standards and Pb free.
- Designed to support advanced driver assistance systems, GPS modules, and in-vehicle networking.
Product Description
Abracon ABM3BAIG-8.000MHZ-1Z-T is a high-reliability 8 MHz Crystal Unit optimized for surface mount technology with 4 pins and compact form factor measuring 5 mm length, 3.2 mm width, and 0.9 mm height. It features a hermetically seam-sealed ceramic package ideal for harsh environmental conditions.
This crystal is automotive grade and certified to meet AEC-Q200 standards, supporting operating temperatures from -40°C to +125°C, making it suitable for robust automotive and industrial applications. These applications include infotainment, keyless entry, GPS navigation, ADAS, vehicle-to-vehicle communication, LIDAR, powertrain control, and industrial automation.
It offers a frequency tolerance of ±50 ppm and frequency stability of ±100 ppm. The load capacitance is 18 pF with a series resistance of 150 Ω, ensuring stable and precise timing performance.
Manufactured to comply with RoHS II and ISO9001-2015 standards, the crystal is Pb free and environmentally compliant. It supports automotive grade 1 requirements and offers an option for automotive grade 0 with temperature up to +150°C upon request.
Standard frequency is 8 MHz with ±50 ppm frequency tolerance. Automotive grade with AEC-Q200 certification. Surface mount 4-pin package with compact dimensions (5x3.2x0.9 mm). Load capacitance of 18 pF and series resistance of 150 Ω.
Operating temperature range from -40°C to +125°C. Compliant with RoHS II, ISO9001-2015 and Pb free. Suitable for automotive and industrial applications including GPS, ADAS, and vehicle communication.
This crystal unit is widely used in industrial manufacturing, automotive electronics, and automated control systems where precise frequency stability and reliability are critical. It is ideal for designers requiring robust oscillator components within compact PCB footprints.
Explore the Electronics Components category for more Crystal Units and oscillators on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 8 MHz with a frequency tolerance of ±50 ppm.
This model has dimensions of 5 mm in length, 3.2 mm in width, and 0.9 mm in height.
It supports an operating temperature range from -40°C to +125°C.
The load capacitance is 18 pF, which is important for its performance in various applications.
The series resistance is 150 Ω, ensuring stable oscillator performance.
Yes, it is compliant with RoHS II and ISO9001-2015 standards, and it is Pb free.
It is automotive grade and certified to meet AEC-Q200 standards.
It is suitable for automotive and industrial applications including infotainment systems, GPS modules, and advanced driver assistance systems (ADAS).
This model features a hermetically seam-sealed ceramic package designed for surface mount technology.
Yes, an option for automotive grade 0 is available, which supports temperatures up to +150°C upon request.
It has a pin count of 4, which is typical for surface mount crystal units.
The series resistance of 150 Ω is crucial for ensuring stable and precise timing performance in electronic circuits.
