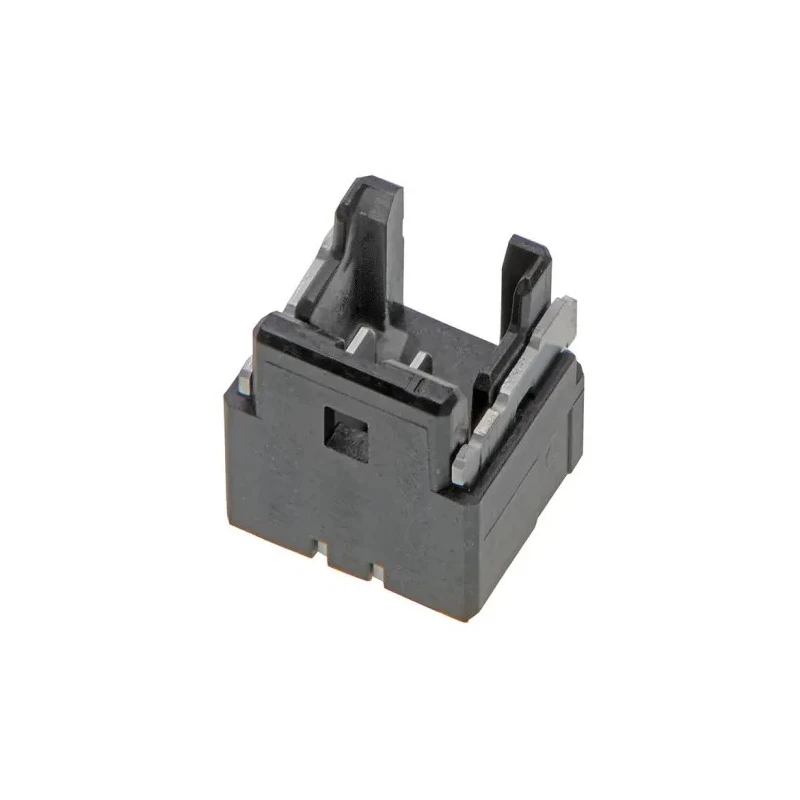

Molex OneBlade Series Vertical Surface PCB Header, 4 Contacts, 1 mm Pitch, 2 Row, Shrouded 214094-0040

Molex 214094-0040 OneBlade Series Vertical Surface PCB Header is a high-quality wire-to-board connector system tailored for printed circuit board applications requiring vertical orientation. This model features 4 contacts arranged in 2 rows with a precise 1 mm pitch, ensuring compact and reliable connectivity.

The connector housing is made from robust polyamide material, providing mechanical stability and resistance to harsh environments. Contacts are crafted from brass and finished with matt tin plating to enhance corrosion resistance and electrical conductivity. It supports a continuous current rating of 2.5A and operates effectively within a temperature range of -40°C to 105°C, making it suitable for various industrial, electronics manufacturing, and laboratory applications.

This PCB header uses solder termination for secure surface mounting and is shrouded for extra protection against environmental and mechanical damage. The design supports up to 30 mating cycles, ensuring operational reliability in repeated connect-disconnect scenarios common in industrial and electronic assembly processes.

Compliance with both EU RoHS and China RoHS directives assures that the product meets strict environmental and safety standards. The connector's pitch and mating pin length are optimized for compact PCB layouts, thereby supporting efficient space management on the boards.

Ideal for industrial electronics, power distribution systems, telecommunications, and other applications requiring durable and precise PCB connections. The product is sourced from Korea, Republic Of, under the trusted Molex brand.

The connector is shrouded providing enhanced protection and durability. Supports a current rating of 2.5A for reliable electrical performance. Constructed with brass contact material and matt tin plating for corrosion resistance.

Features a polyamide housing offering high mechanical strength and operating temperature range from -40°C to 105°C. Optimized for wire-to-board connector system with solder termination and vertical orientation. Designed for a maximum of 30 mating cycles ensuring longevity in usage.

Complies with EU RoHS and China RoHS standards for environmental safety. Mating pin length of 2 mm with a row pitch of 1 mm supports compact PCB designs. Explore the Molex OneBlade Series and related PCB header products at EnvMart for reliable, industrial-grade electronic connectivity solutions.
