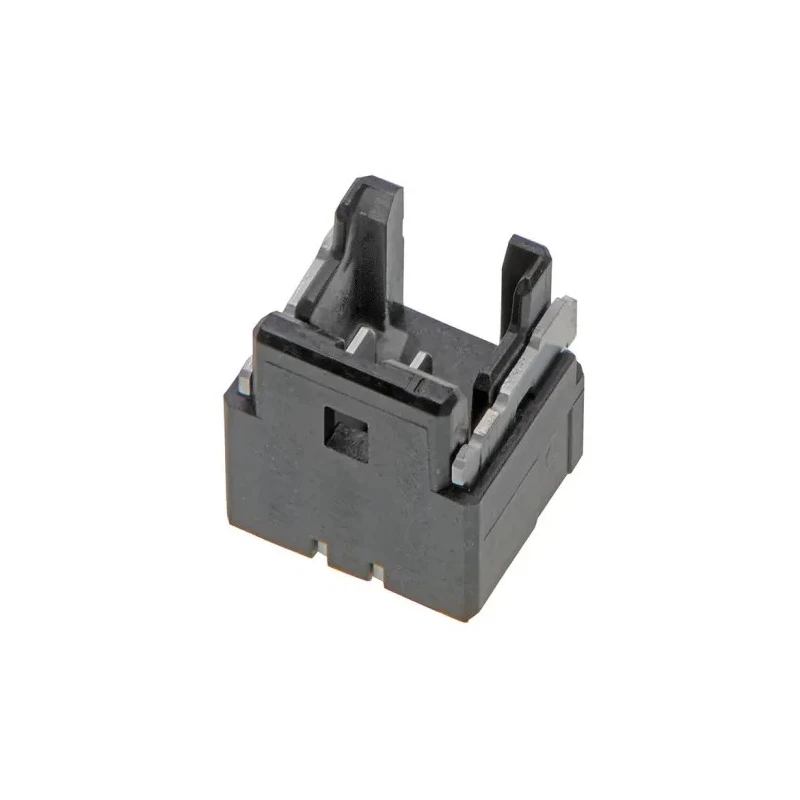

Molex OneBlade Series Vertical Surface PCB Header, 2 Contact(s), 1 mm Pitch, 2 Row, Shrouded 214094-0020
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | Molex |
| Orientation | Vertical |
| Current | 2.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | OneBlade |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 1mm |
| Standards/Approvals | CHINA RoHS, EU ELV, EU RoHS |
| Contact Plating | Matt Tin |
| Number of Contacts | 2 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 2mm |
Key Features
- Wire-to-board connector system designed for vertical surface mount applications.
- Features 2 male brass contacts plated with matt tin for reliable conductivity.
- Polyamide housing ensures durability and mechanical stability.
- Operating temperature range from -40°C to 105°C suitable for harsh environments.
- Supports 2.5A current rating ensuring secure electrical connections.
- Shrouded design provides added protection and proper mating orientation.
- Connector system supports up to 30 mating cycles for reliability.
- Solder termination type for surface mounting on PCB.
Product Description
Molex 214094-0020 OneBlade Series Vertical Surface PCB Header is a high-quality, shrouded wire-to-board connector system suitable for precision electronic applications. This connector features 2 male brass contacts with matt tin plating, arranged in 2 rows with 1 mm pitch, ensuring compact and reliable connections on printed circuit boards. The polyamide housing provides mechanical strength and resistance to environmental factors.
Designed for surface mount technology, this PCB header supports a current rating of 2.5A and a voltage rating up to 100Vrms, making it ideal for various industrial and electronic equipment applications. Operating within a temperature range of -40°C to +105°C, it withstands demanding conditions including those found in manufacturing, industrial instrumentation, and electronic assembly lines.
The shrouded construction safeguards the contacts during mating cycles, with a durability rating of up to 30 mating cycles to ensure lasting performance. The connector has a 2mm mating pin length and is compatible with wire-to-board systems where vertical orientation is required.
This part is especially suited for industries such as electronics manufacturing, laboratory instrumentation, HVAC controls, and other commercial electronic devices requiring reliable PCB connections. Manufactured in the Republic of Korea, it adheres to the CHINA RoHS, EU ELV, and EU RoHS environmental standards, supporting green compliance in design and production.
Vertical wire-to-board connector system with shrouded housing. 2 contacts with 1 mm pitch and 2 rows for compact PCB integration. Brass contacts plated with matt tin for corrosion resistance. Polyamide housing material for mechanical and thermal stability.
Supports solder termination surface mounting on PCB. Rated for 2.5A current and 100Vrms voltage applications. Operating temperature range from -40°C to 105°C for harsh environment use. Durability of 30 mating cycles ensures extended connector life.
Compliant with CHINA RoHS, EU ELV, and EU RoHS standards.
Explore more PCB connector solutions from Molex to enhance your electronic assembly and manufacturing processes. Visit EnvMart for technical expertise and a wide selection of electronics components.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2.5A, ensuring secure electrical connections in various applications.
It operates within a temperature range of -40°C to +105°C, making it suitable for harsh environments.
This unit features 2 male contacts, arranged in 2 rows with a 1 mm pitch.
The connector uses a solder termination type for surface mounting on PCBs.
It has brass contacts plated with matt tin for reliable conductivity and a polyamide housing for mechanical stability.
This model is rated for up to 30 mating cycles, ensuring reliability over time.
It adheres to CHINA RoHS, EU ELV, and EU RoHS environmental standards, supporting green compliance.
The mating pin length is 2 mm, designed for compatibility with wire-to-board systems.
It supports surface mounting, specifically designed for vertical orientation on PCBs.
The connector is rated for a voltage of up to 100Vrms, suitable for various electronic applications.
This product is manufactured in the Republic of Korea.
It is classified as a wire-to-board connector system, designed for precise electronic applications.
