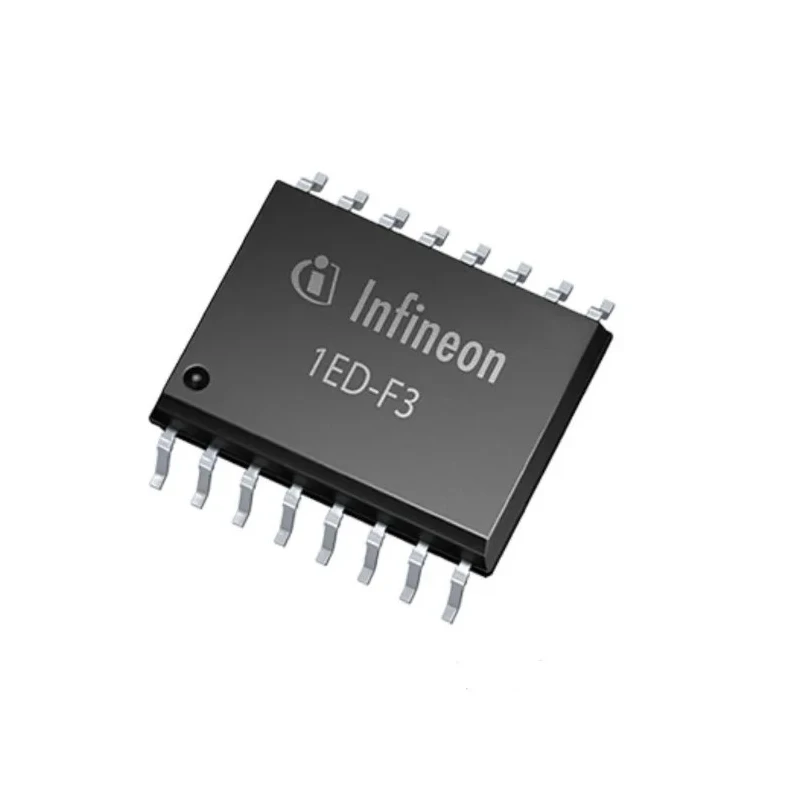

Infineon MOSFET Gate Driver, 8.5 A Output Current, 16-Pin PG-DSO-16 Package, 3.3V to 5V Supply, 20ns Fall 1ED3323MC12NXUMA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | 1ED3323MC12NXUMA1 |
| Output Current | 8.5A |
| Maximum Operating Temperature | 150°C |
| Package Type | PG-DSO-16 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | 3.3V |
| Fall Time | 20ns |
| Driver Type | MOSFET |
Key Features
- Supports a minimum supply voltage of 3.3V and maximum of 5V.
- Delivers an output current of up to 8.5 A for effective MOSFET gate control.
- Equipped with a fast 20ns fall time for rapid switching performance.
- Housed in a PG-DSO-16 package for easy PCB integration and thermal management.
- Operates efficiently across a wide temperature range from -40°C to 150°C.
- Designed for industrial applications including motor controllers and power converters.
- Ideal for driving MOSFETs in low-voltage switching electronics and power stages.
Product Description
Infineon 1ED3323MC12NXUMA1 MOSFET Gate Driver features an 8.5 A output current and supports supply voltages ranging from 3.3V to 5V. Packaged in a compact 16-pin PG-DSO-16 format, it provides efficient MOSFET gate control for low-voltage power electronics applications.
Its 20ns fall time ensures rapid turn-off transitions, optimizing switching efficiency for electronic power supplies, motor controllers, and industrial inverters. The wide operating temperature range from -40°C to 150°C enables use in thermally demanding and harsh industrial environments.
The device is well suited for controlling power transistors in high-current switching applications with fast response requirements. Its design allows straightforward PCB placement and thermal management due to the PG-DSO-16 package.
Common applications include low-voltage converters, motor control electronics, and power stages in industrial systems requiring reliable high current gate driving. Supports 3.3V minimum and 5V maximum supply voltages. Capable of sourcing or sinking 8.5 A output current.
20ns fall time for faster switching efficiency. Compact PG-DSO-16 package for easy integration. Wide operating temperature range from -40°C to 150°C. Suitable for motor controllers and industrial inverters. Designed for thermally stressed environments.
This Infineon MOSFET gate driver exemplifies robust power management for industrial and electronic applications, combining rapid switching capability with high current drive and reliable operation under wide temperature conditions. Explore more Infineon power management solutions and MOSFET Gate Drivers at EnvMart for enhanced electronic circuit designs.
