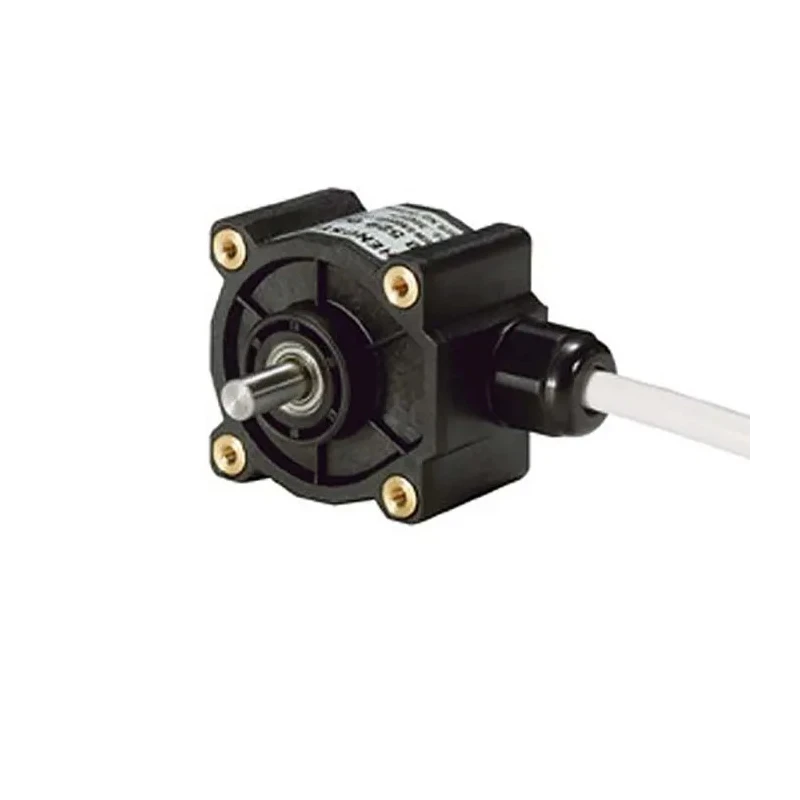

Hengstler RI38 Series Incremental Encoder 30V dc, 100 PPR, Push Pull Signal, Solid Shaft 6 mm RS38-O/100EQ.11KB

Hengstler RS38-O/100EQ.11KB is a high-precision incremental encoder from the RI38 series designed for various industrial applications requiring reliable motion control. Operating at 30V dc with a pulse rate of 100 pulses per revolution, this encoder delivers accurate and consistent position feedback.

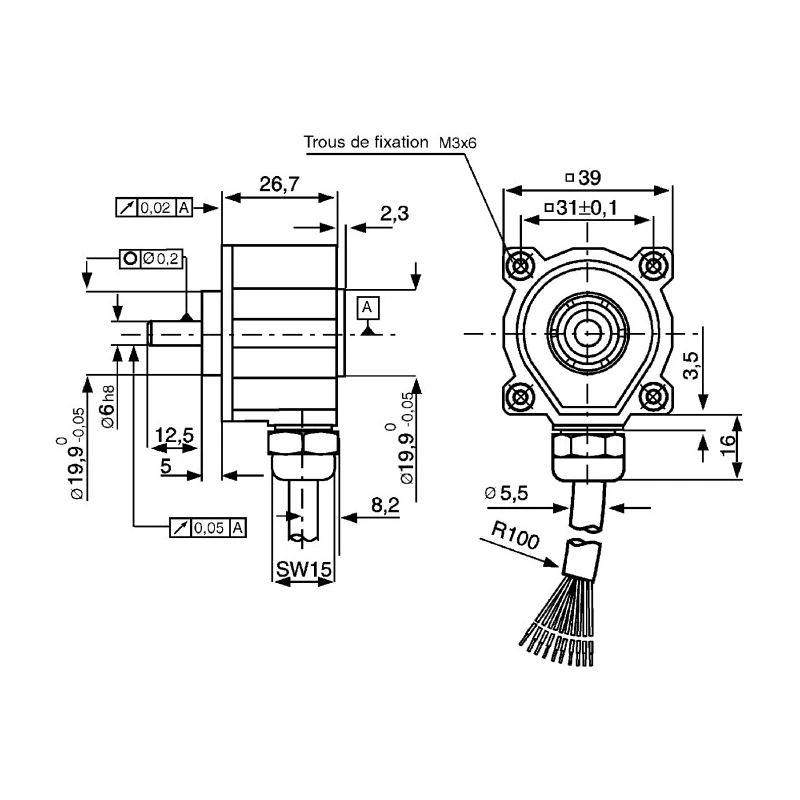

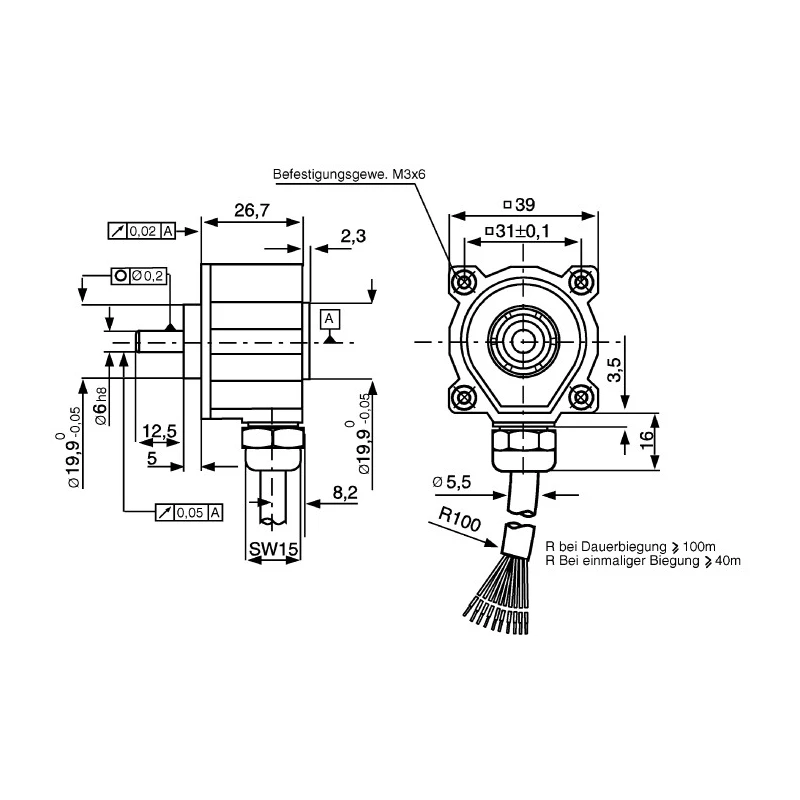

Equipped with a solid 6 mm shaft and panel mount configuration, it features OptoAsic technology that enhances operational reliability and provides signal integrity for long-term use in demanding industrial environments. Its low torque design with ball bearings ensures smooth operation and reduces wear, making it suitable for continuous applications.

The encoder operates efficiently across a wide temperature range, from -10°C to 60°C, and carries an IP40 rating offering protection against dust and foreign objects. With a maximum rotational speed of 10,000 rpm and a switching frequency of 200 kHz, it supports dynamic industrial processes.

The push pull signal output offers a square wave pulse with a 1:1 duty cycle, critical for precise and repeatable measurement tasks in automation, manufacturing, laboratory instrumentation, and HVAC systems.

Incorporates OptoAsic technology for superior reliability and performance. Low torque with high efficiency ball bearings for extended service life. Panel mount type suitable for various industrial setups. Temperature operating range from -10°C to 60°C ensuring versatility.

Maximum rotational speed of 10,000 rpm facilitating high-speed operations. IP40 protection rating ensuring resilience against dust ingress. Push pull output signal type with clean square wave pulses. Switching frequency up to 200 kHz for high speed sensing accuracy.

German manufactured quality ensuring compliance and durability.

This Incremental Encoder is ideal for industrial automation, manufacturing equipment, robotics, and motion sensing applications. Its precise output, robust construction, and reliable performance make it a vital component in control systems requiring accurate position and speed detection.
