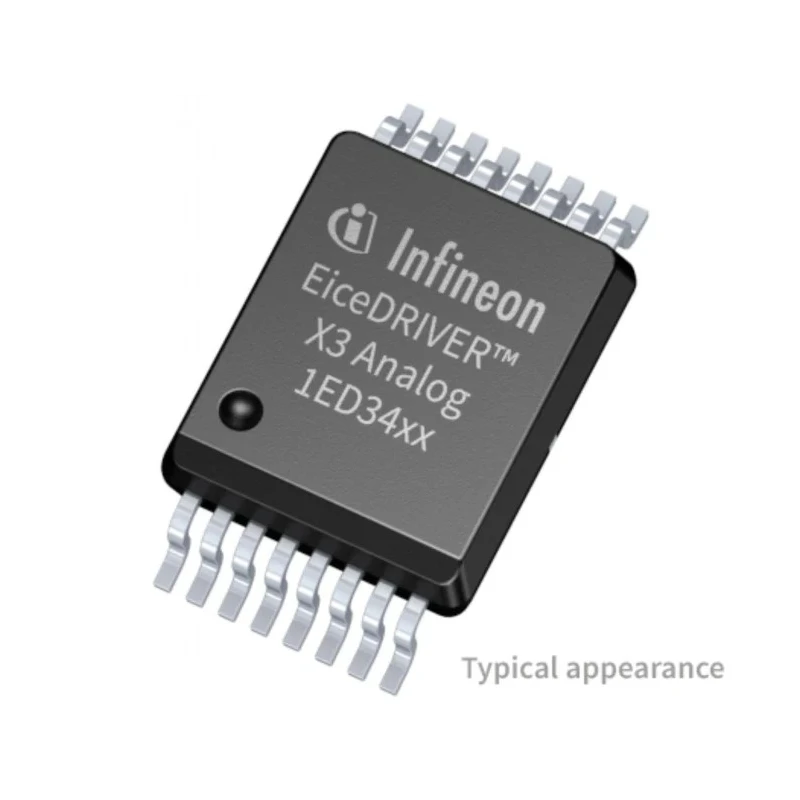

Infineon MOSFET Gate Driver, 9 A Output Current, 16-Pin DSO-16 Package, 6.5V Supply Voltage 1ED3491MU12MXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon MOSFET Gate Driver, 9 A Output Current, 16-Pin DSO-16 Package, 6.5V Supply Voltage 1ED3491MU12MXUMA1

Name: Infineon MOSFET Gate Driver, 9 A Output Current, 16-Pin DSO-16 Package, 6.5V Supply Voltage 1ED3491MU12MXUMA1
Brand: Infineon
SKU: 178519
Price: 6.29 USD
Availability: InStock



Category MOSFET Gate Driver Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Model	1ED3491MU12MXUMA1
Output Current	9A
Maximum Operating Temperature	150°C
Package Type	DSO-16
Minimum Operating Temperature	-40°C
Standards/Approvals	DIN EN 60747-5-2
Pin Count	16
Minimum Supply Voltage	6.5V
Fall Time	15ns
Driver Type	MOSFET

Key Features

This driver IC is suitable for driving MOSFETs with robust output current capabilities.
It features adjustable DESAT and soft-off functions for enhanced protection and control.
The device operates over a wide temperature range from -40°C to 150°C.
Includes advanced features like active Miller clamp and over-temperature shutdown to safeguard power devices.
Complies with DIN EN 60747-5-2 standard for reliability in power management applications.
Designed for use with IGBTs and Si/SiC MOSFETs rated up to 2300 V.
The compact DSO-16 package allows ease of integration on various PCBs.
Fall time is rated at 15 nanoseconds, enabling fast switching performance.

Product Description

Infineon 1ED3491MU12MXUMA1 is a high performance MOSFET gate driver from the EiceDRIVER Enhanced 1ED34xx X3 analog family. It supports a peak output current of ±9 A, optimizing switching speed and efficiency in power electronics circuits. The driver comes in a 16-pin DSO-16 package and operates at a fixed supply voltage of 6.5 V.

Designed for industrial and automotive-grade applications, this gate driver accommodates IGBTs, Si and SiC MOSFETs with voltage ratings up to 2300 V, providing versatility across medium to high power electronics use cases. The device includes configurable DESAT protection with adjustable filter time and soft-off current, implemented via external resistors connected at input pins ADJA and ADJB. An active Miller clamp feature helps suppress unwanted turn-on during switching transients, while over-temperature shutdown provides safety during abnormal thermal conditions.

The 1ED3491MU12MXUMA1 boasts a fast 15 ns fall time enabling rapid switching, which is critical for minimizing switching losses and improving system efficiency in industrial power supplies, motor control, renewable energy inverters, and electric vehicle drive systems.

This MOSFET gate driver complies with DIN EN 60747-5-2 standard, reinforcing its suitability for reliable power management in demanding industrial environments. Typical output current ±9 A for strong drive capability. Adjustable DESAT and current soft-off protect power devices.

Wide operating temperature range from -40°C to 150°C supports harsh industrial conditions. Active Miller clamp feature mitigates switching transients. Over-temperature shutdown prevents driver damage. Compact DSO-16 package simplifies board layout and assembly.

Designed for 650 V to 2300 V IGBTs and MOSFETs, compatible with Si and SiC devices. Fast switching with fall time of 15 ns enhances efficiency.

This Infineon MOSFET Gate Driver is ideal for industrial power electronic circuits such as inverters, motor drives, power supplies, and automotive applications requiring robust and configurable gate drive solutions.
